Product PDF

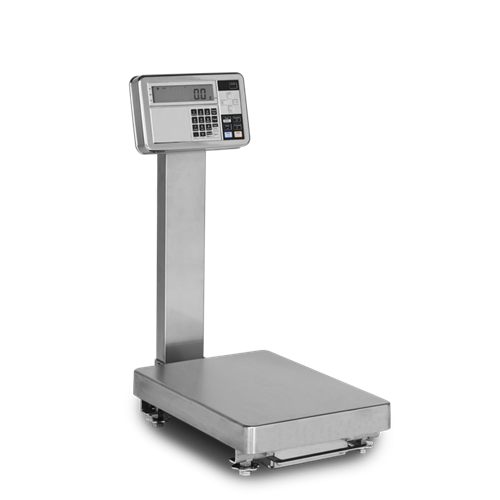

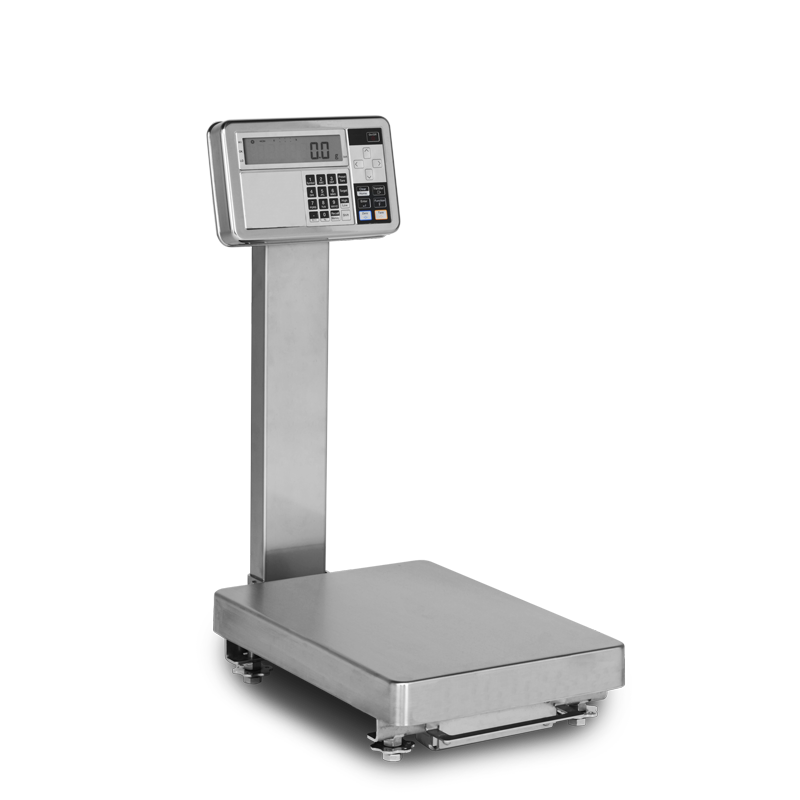

GEX-FZ-1G High Precision Bench Balance, for ATEX Zone 0

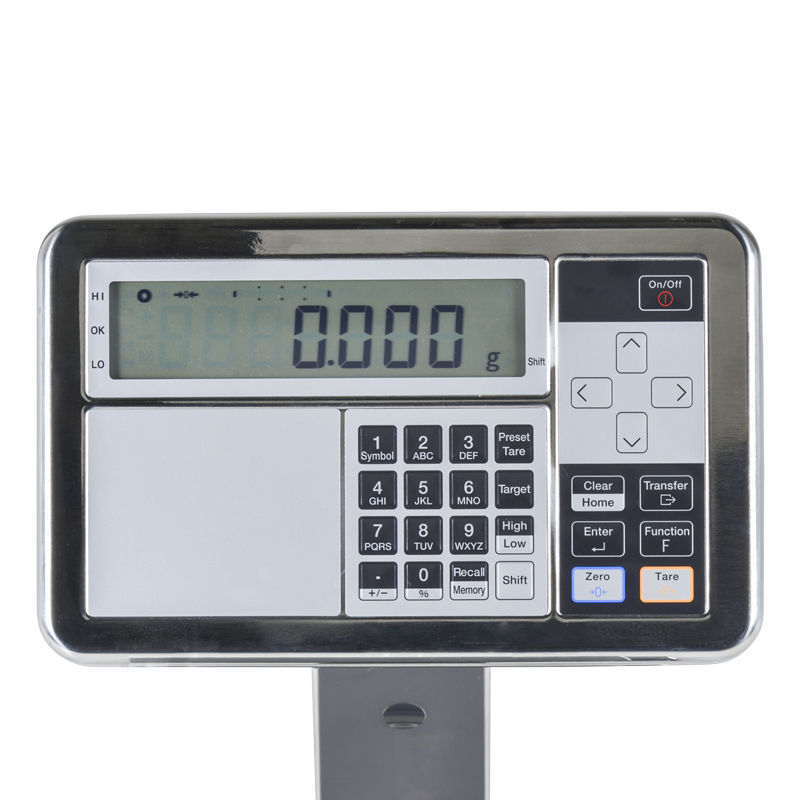

  • 27-key numeric and functional waterproof keyboard
  • 9-digit 25 mm LCD display
  • IP65 stainless steel structure
  • Dimensions:
    • GEX-FZ30K-1G, 310 x 444 x 672 mm
    • GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 653 x 804 mm
  • Weighing sensor with tuning fork technology
  • Stainless steel plate, dimensions:
    • GEX-FZ30K-1G, 310 x 330 mm
    • GEX-FZ60K-1G e GEX-FZ200K-1G, 380 x 530 mm

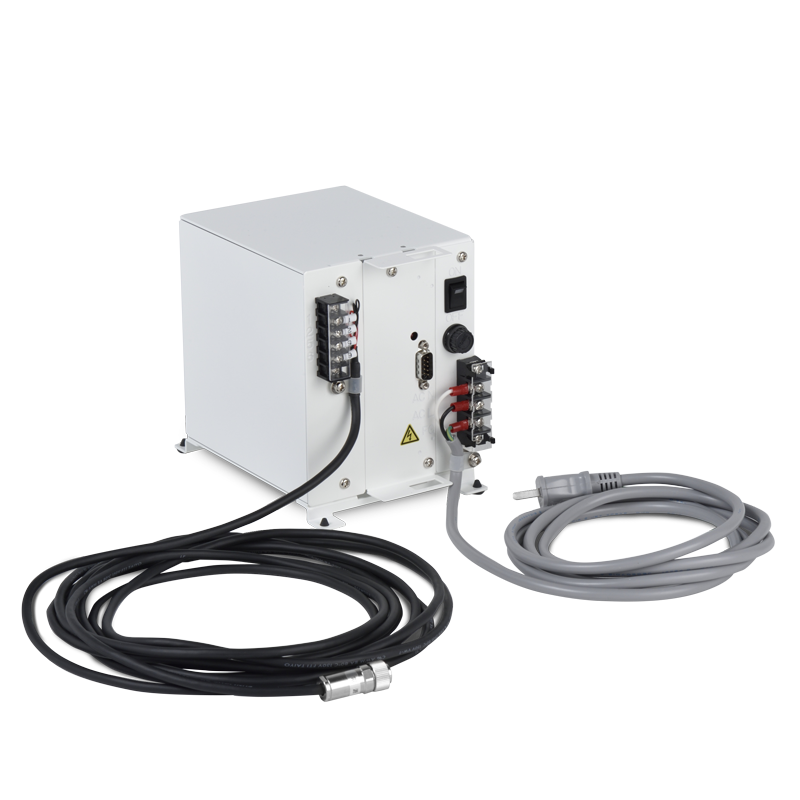

  • 100 - 240VAC power supply in safe area, with RS232 serial port
  • 5 m cable between power supply and weight indicator
  • 10 m cable between platform and weight indicator
  • 2.5 m power cable
  • Version approved for CE-M II legal-for-trade use
Request More Information
GEX M

High precision bench balance for hazardous areas. Protection rating II 1G Ex ia II B T4 Ga for gas.
CE-M approved (OIML R-76 / EN 45501).

Functions:
Zeroing.
Semiautomatic tare.
Preset tare.
Tolerance check.
Totalization in loading and unloading.
Up to 100 storable tares.
Bar graph display in relation to flow rate.
6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key.
5 selectable weighing filters.
Zero tracking.

Weighing Modes:
Weighing in grams.
Percentage weighing for formulation and recipe dosing.
Customized coefficient for liquid weighing and grammage.



Main Certifications:
II 1G Ex ia II B T4 Ga
OIML R76

Capacities (kg): 30, 60, 200

Operation manual and EU declaration of ATEX conformity available in English.
Safety instructions available in Italian, English, French, German and Spanish languages.





Code Class Plate Max (mm) Max (g) d (g) M (g*) Linearity (g) +/- Repeatability (g)
GEX-FZ30K-1G II 310 x 330 30 0.1 1 0.1 0.1
GEX-FZ60K-1G II 380 x 530 60 0.1 1 0.2 0.1
GEX-FZ200K-1G II 380 x 530 200 1 10 2 1

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose a Bench Scale Email Bench Scales Articles

Parts

Available versions

Part # Description List Price Cart / Quote
GEX-FZ30K-1G High precision bench balance for ATEX zone 0 model FZ30K0.1GEx. Capacity 30 kg, division 0,1 g, stainless steel structure, load plate 310 x 330 mm. Protection rating: ATEX II 1 G Ex ia II B T4 Ga for gas. 100 - 240VAC power supply unit for safe area, with 5m cable included.

Consult
GEX-FZ60K-1G High precision bench balance for ATEX zone 0 model FZ60K0.1GEx-i02. Capacity 60 kg, division 0,1 g, stainless steel structure, load plate 380 x 530 mm. Protection rating: ATEX II 1 G Ex ia II B T4 Ga for gas. 100 - 240VAC power supply unit for safe area, with 5m cable included.

Consult
GEX-FZ200K-1G High precision bench balance for ATEX zone 0 model FZ200K1GEx-i02. Capacity 200 kg, division 1 g, stainless steel structure, load plate 380 x 530 mm. Protection rating: ATEX II 1 G Ex ia II B T4 Ga for gas. 100 - 240VAC power supply unit for safe area, with 5m cable included.

Consult

Options

Legal for trade approval (only at time of order)

Part # Description List Price Cart / Quote
ECEM1MS CE-M approval for scales with capacity over 6kg and up to 300kg, without any internal calibration system or preset g value for the place of use.

Consult
ECEMDOC Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.

Consult

Calibration service (ACCREDIA/DAKKS) only at time of order
