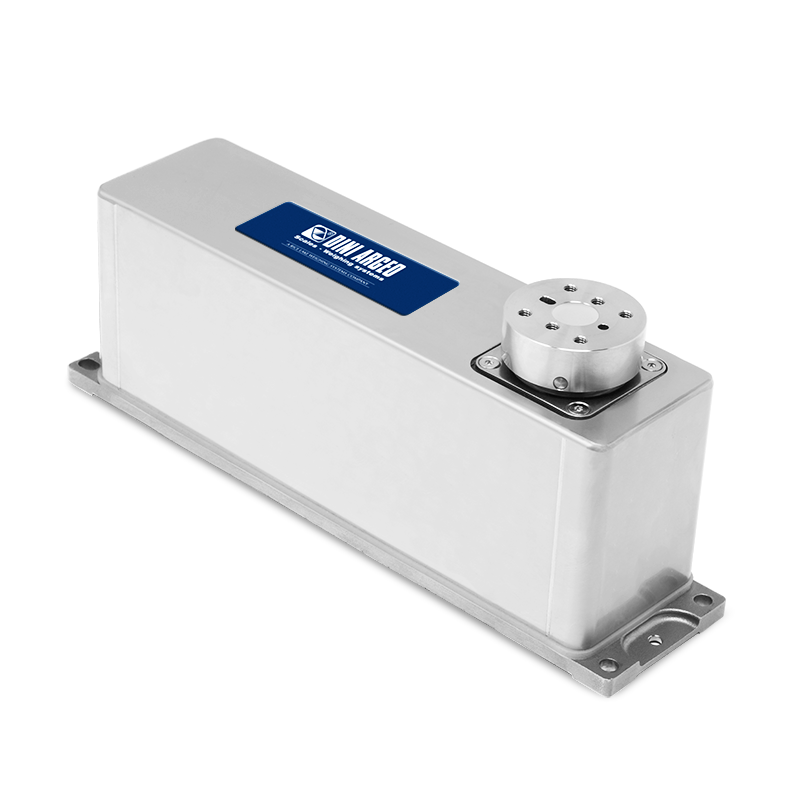

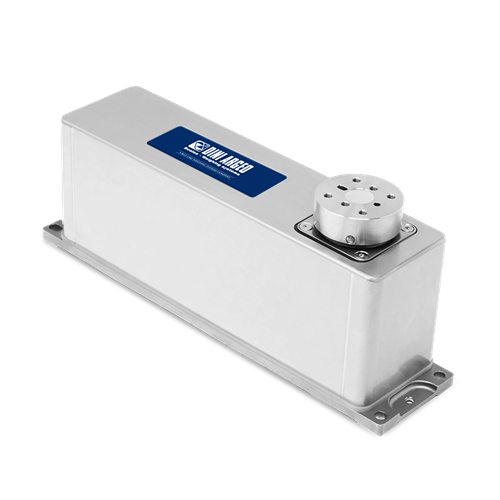

GLC Series High-Precision Digital Load Cell

  • Stabilization time approx. 0.4 sec.
  • Update frequency: 100Hz.
  • RS485/RS232C interface, from 1200 to 38.4kbps.
  • Stainless steel casing
  • Remote calibration
  • Power supply: +24VDC ± 10%, 0.1A.
  • Working temperature: 10°...30°C
  • Relative ambient humidity: 80% or less (non-condensing)
  • Warm up time: 1 hour
  • Temperature drift: ± 2 ppm/°C or less
  • Overload protection level GLC-620: 300% F.S.
  • Overload protection level GLC-3200. 150% F.S.
  • IP65 protection rating (with RSCBGLC cable)

Connectable Weight Indicators

The GLC load cell can be connected to 3590EGT series weight indicators with the GLCKIT option and the following software:

  • AF01: Totalization and formula weighing
  • AF02: Piece/quantity counting
  • AF04: Statistical check of prepackaged goods
  • BATCH: Software for multicomponent dosage systems in loading and unloading
Request More Information
GLC

Very high performance digital load cell, stainless steel case and electromagnetic sensor technology. Fast and repeatable, it allows to create very high performance weighing systems. Ideal for industrial automation. IP65 protection rating.

Code Plate Max (mm) Max (g) d (g) Linearity (g) +/- Repeatability (g)
GLC620 Ø 80 mm 620 0,001 0,002 0,001
GLC3200 Ø 80 mm 3200 0,01 0,02 0,1

Resources / Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells Articles
How to Choose the Best Load Cell for Your Needs Email All Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart / Quote
GLC620 Digital load cell with 620g capacity, 0,001 g division, stainless steel casing, protection IP65.

Consult
GLC3200 Digital load cell with 3200g capacity, 0,01g division, stainless steel casing, protection IP65.

Consult

Options

Connection options to 3590 indicator

Part # Description List Price Cart / Quote
GLCKIT 24 V power supply kit and IP65 connection cable (length 10 m) for 3590 touch screen indicator.

Consult
