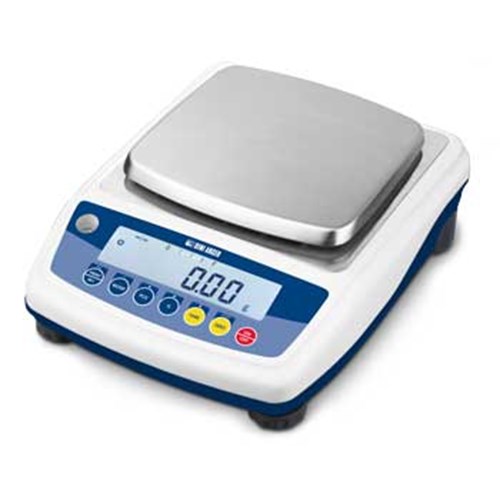

HLD Series Technical Precision Top-Loading Scale
- Backlit LCD display with 7 digits 16mm high.

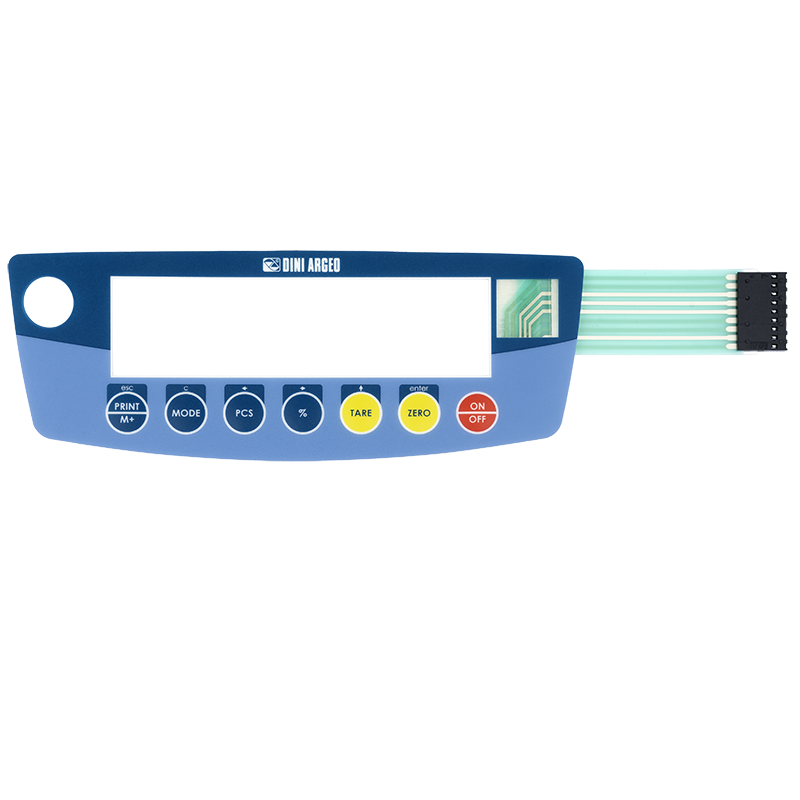

- Waterproof membrane keypad, with acoustic feedback, with 7 keys.

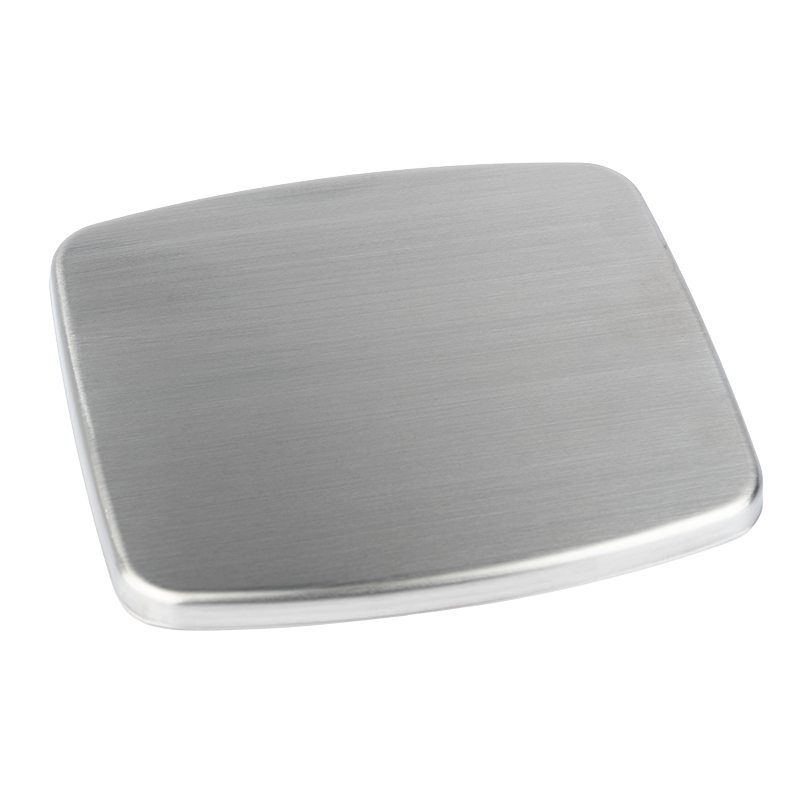

- Stainless steel plate, size: 140x150mm.
- Level and adjustable feet.
- Built-in rechargeable battery (about 30h battery life) and 230 Vac mains power adapter.
- Operating temperature +5°C...+40°C.
- RS232/c port for connection to PC or printer (serial parameters not programmable in CE-M approved version).
- Packaging: 370x240x250mm size - approximate weight of 2,7kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate
- CE-M approval in class II.
Multifunctional scale, suitable for laboratory and industrial use. Available also CE-M APPROVED for legal for trade use.
Specifications
|
Functions: |
Division (g): Capacity (g): |
|
Counting Features
Internal sensitivity and minimum recommended A.P.W.
|
Model |
HLD1200 |
HLD3000 |
HLD6000 |
|
Internal sensitivity (g) |
0,0025 |
0,005 |
0,014 |
| Min. recommended A.P.W. (g) | 0,02 |
0,05 |
0,1 |
Available Versions
| Code | Class | Plate Max (mm) | Max (g) | d (g) | M (g*) | Linearity (g) +/- | Repeatability (g) |
|---|---|---|---|---|---|---|---|
| HLD1200 | -- | 140x150 mm | 1200 | 0,02 | -- | 0,04 | 0,02 |
| HLD3000 | II | 140x150 mm | 3000 | 0,05 | 0,5 | 0,1 | 0,05 |
| HLD6000 | II | 140x150 mm | 6000 | 0,1 | 1 | 0,2 | 0,1 |
(*) CE-M divisions are obtainable only with the relative options.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
HLD3000 | Laboratory scale with 3000 g capacity, 0,05 g division, stainless steel plate dimensions 140x150 mm, backlit LCD display and waterproof membrane keypad. |
Consult |
|
|
|
HLD6000 | Laboratory scale with 6000 g capacity, 0,1 g division, stainless steel plate dimensions 140x150 mm, backlit LCD display and waterproof membrane keypad. |
Consult |
Options
Calibration service only available at time of scale's order
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CT3 | ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
Approval for sale to third parties
Printers/Labelers
Connection cables
Spare parts
