Product PDF

iDimension® Flex SERIES PACKAGING AND PALLET DIMENSIONING SYSTEM

Measuring capacity of the four sensors:

  • Max: 2.400 × 2.400 × 2.400 mm
  • Min: 300 × 300 × 300 mm

Power supply: 110 to 240 VAC
6m power cable included
Communication ports: Ethernet TCP/IP, USB, RS232 serial
Operating temperature: -10 °C to 40 °C
Humidity: 0 to 90% non-condensing

Request More Information

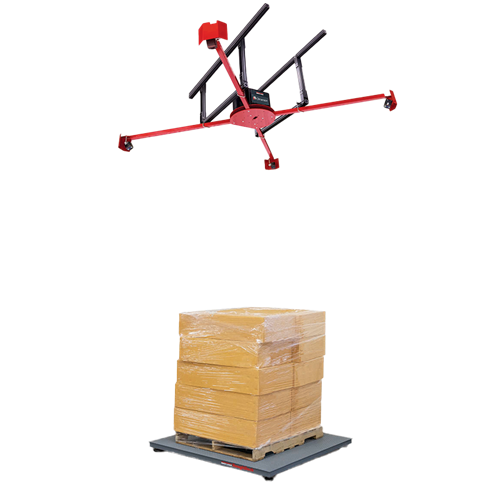

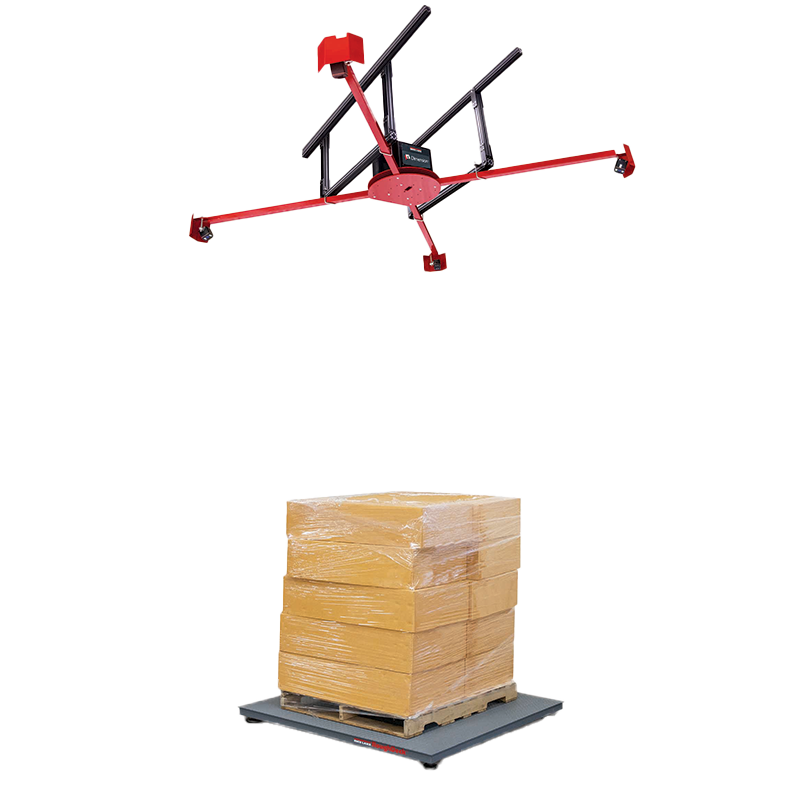

1 Us Flex Suspended With Pallet

The iDimension Flex series offers state-of-the-art dimensioning technology to shipping and logistics professionals. iDimension Flex can be installed above a conveyor or pallet wrapper to efficiently weigh and dimension freight in one step. A central sensor can be added to accurately detect the dimensions of black plastic-wrapped goods. Available on request in an approved version for Legal for Trade use.

Optional terminal stand
Second high-resolution camera for detailed photos of the measured package
Optional integration with a floor scale, conveyor or pallet wrapper
Additional fifth sensor for reading extra tall freight over 2 meters
Optional floor scale.

The iDimension Flex series is available with four sensors as standard, plus an optional fifth sensor to measure extra tall freight or black stretch film. The system can be suspended from the ceiling or installed free-standing to meet specific operational requirements.

A high resolution camera records color images of freight before shipment to verify condition in claims processing or disputes.
Suitable for use in all locations.

The iDimension Flex approval service is available on an estimate basis, to be carried out at the place of use.
iDimension Flex systems provide Legal for Trade dimensions, certified by OIML and NTEP.
Note: Approval is for static dimensioning. Please refer to the manual for more details.

CE
NTEP
OIML
FCC
Certificazione MID

Resources/Downloads

Title Collateral Wizard Request Download Email Category
iDimensions Flex Series Parcel and Pallet Dimensioning Systems Brochure Download Email All Dimensioning Systems

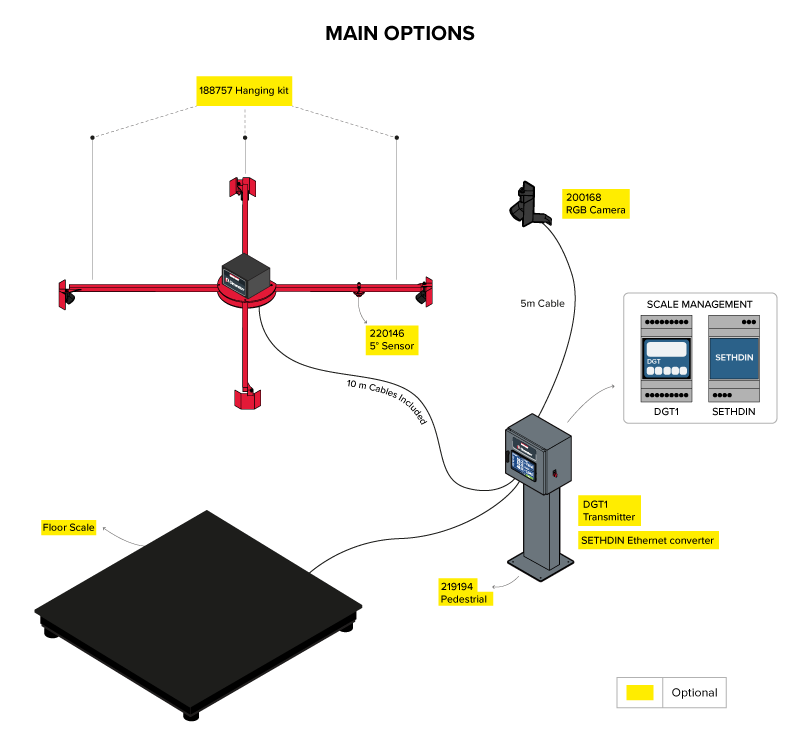

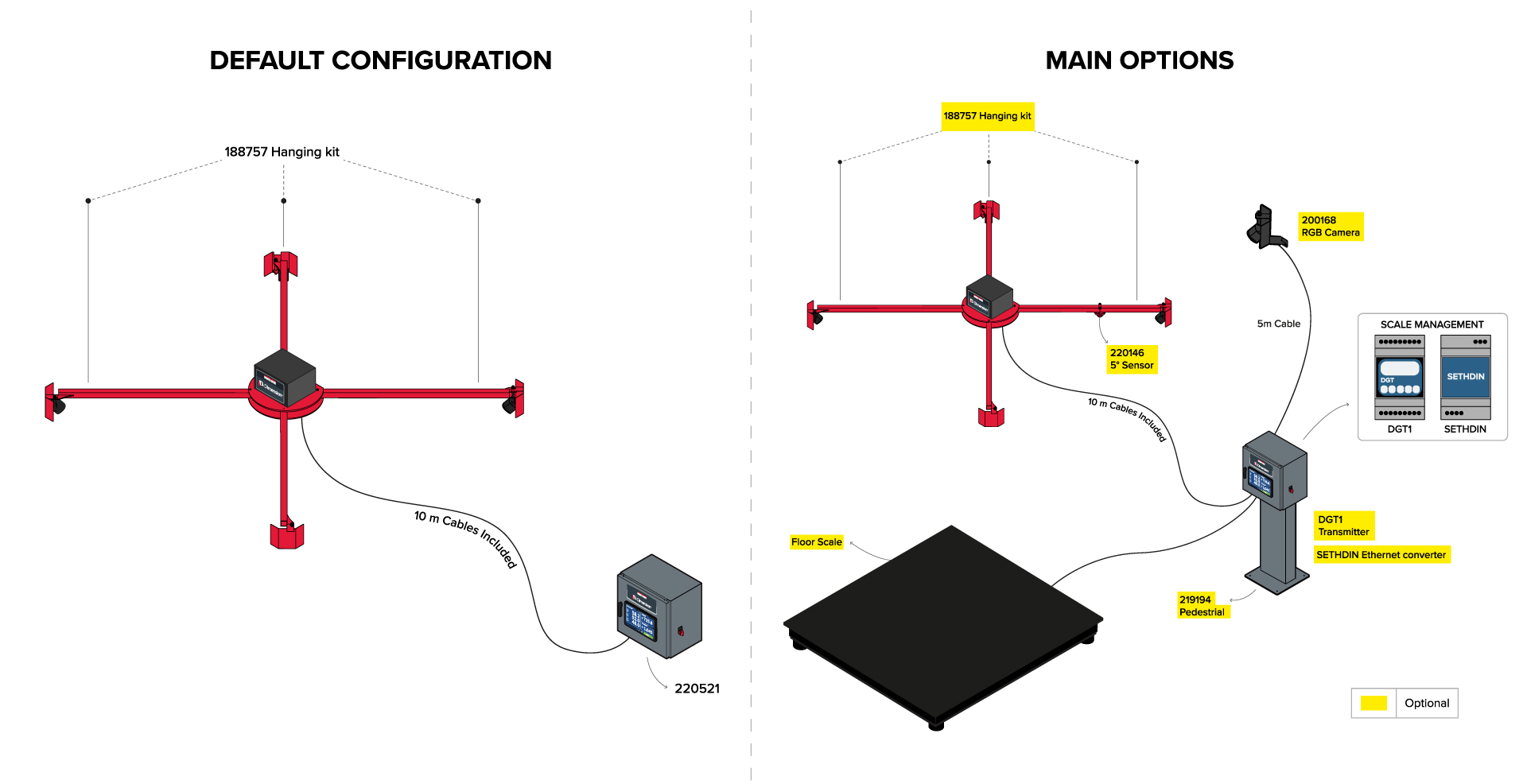

Options

{#Available versions - Ceiling version}

Part # Description List Price Cart/Quote
220519
iDim, Flex 4 Sensor Hanging Assembly with J-Box and Kiosk. -International version

List Price: $25,000.00
188757 iDim Hanging Hardware Kit Hanger Assy, wires, and hardware

List Price: $1,795.00

{#5th sensor for black wrappers and tall items}

{#2nd RGB camera}

{#Kiosk support}

{#Printers/Labellers}

{#Scale connection}

{#Wall-mounted weight repeater for operator}
