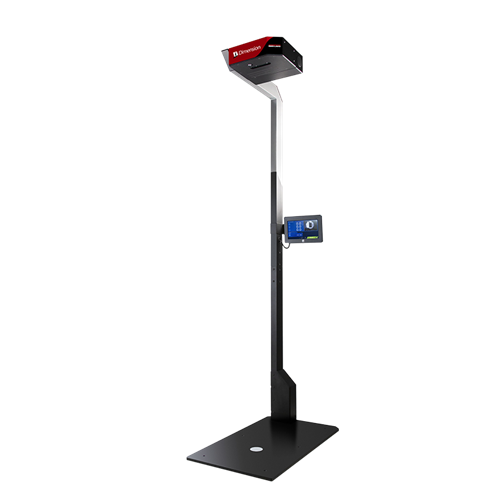

iDimension Plus/Plus XL System for Quick Dimensioning of Parcels, Envelopes and Objects
- iDim Plus package includes: Base plate, pole assembly, USB display, calibration object, US power cord, operating manual and assembly toolkit
- iDim Plus XL package includes: iDimension Plus XL scanner head, 10 ft Ethernet cable, USB display, calibration object, US power cord and operating manual
- Easy to assemble in 30 minutes or less
- Displays dimensions in 0.2 seconds
- No special package placement requirements
- Capable to dimension opaque packaging
- Measurement capabilities beyond Legal for Trade limits
- Standard resolution color camera
- High resolution color image, 2880 × 2160 pixels, available from iDimension Plus 4K
Options
- iDimension SS (Software Suite) or iDimension Desktop Wedge programs for data integration
- Powered USB hub for use of more than one peripheral
- Wired or wireless USB barcode scanner

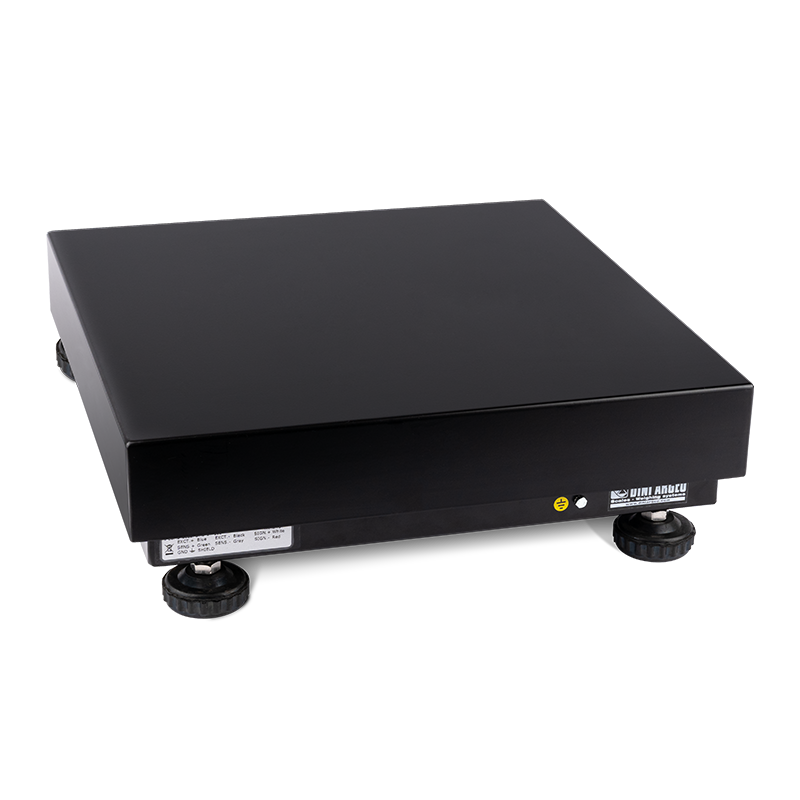

- Rice Lake BenchPro shipping/postal scales
- Rice Lake 680, 880, 1280 indicators available for automation applications
A Dimensioning System Like Never Before
When it comes to calculating dimensions of boxes, flats, polybags and more, Rice Lake's iDimension Plus is the fastest static tabletop solution on the market. The iDimension Plus helps prevent revenue loss by providing accurate dimensional weight calculations required by parcel and postal carriers. Put the iDimension Plus to use right away—simply open and assemble to instantly display dimensions.
Industry Leading 0.2-Second Dimensioning
Dimension parcels faster and more accurately than manual measurements with the iDimension Plus. In an industry-leading 0.2 seconds, parcels are automatically calculated at 0.2 inches, eliminating the risk for human error. Irregular-shaped packages like cylinders, spheres, tubes, polybags and uneven shapes are calculated within +/-0.5 inches. The iDimension Plus is NTEP certified for single irregular and cubic-shaped non-transparent objects.
Innovative Technology

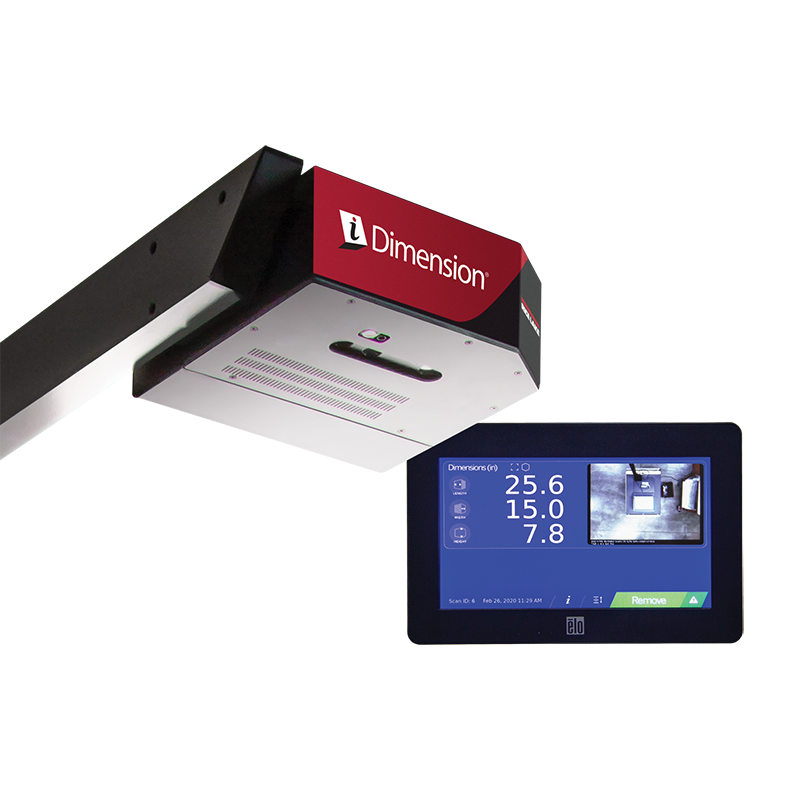

The iDimension Plus uses multiple patented 3D-imaging technologies with advanced algorithms to optimize time and throughput for static outbound shipments. For objects under 1.2 inches, unique flat-detection technology measures envelopes and small packages. Each dimension provides an overhead image for use during claim disputes on damaged packages. A color touchscreen display provides instant feedback, a live image, measurements, weight and operator functions for day-to-day use.
Simple to Set Up
Start using the iDimension Plus within 30 minutes of unboxing with an easy-to-use setup wizard. Simply connect to the web-based interface to begin harnessing advanced configuration and communication settings.
iDimension Plus/Plus XL System Specifications
|
Power Requirements: Communication Ports: Display: |
Accuracy: Software Integration: Temperature Range: |
Humidity: |

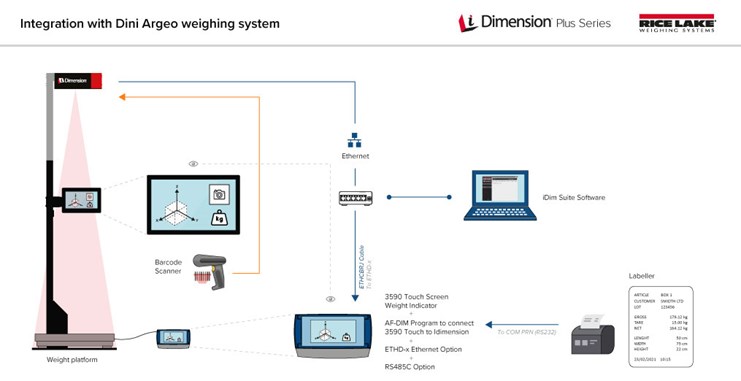

Weighing system for integrated data management with 3590 series weight indicator
By integrating the weighing system with the 3590ET series touch screen indicator, it is possible to manage the data measured on both devices and transmit it to the company computer system or printer/labeller.

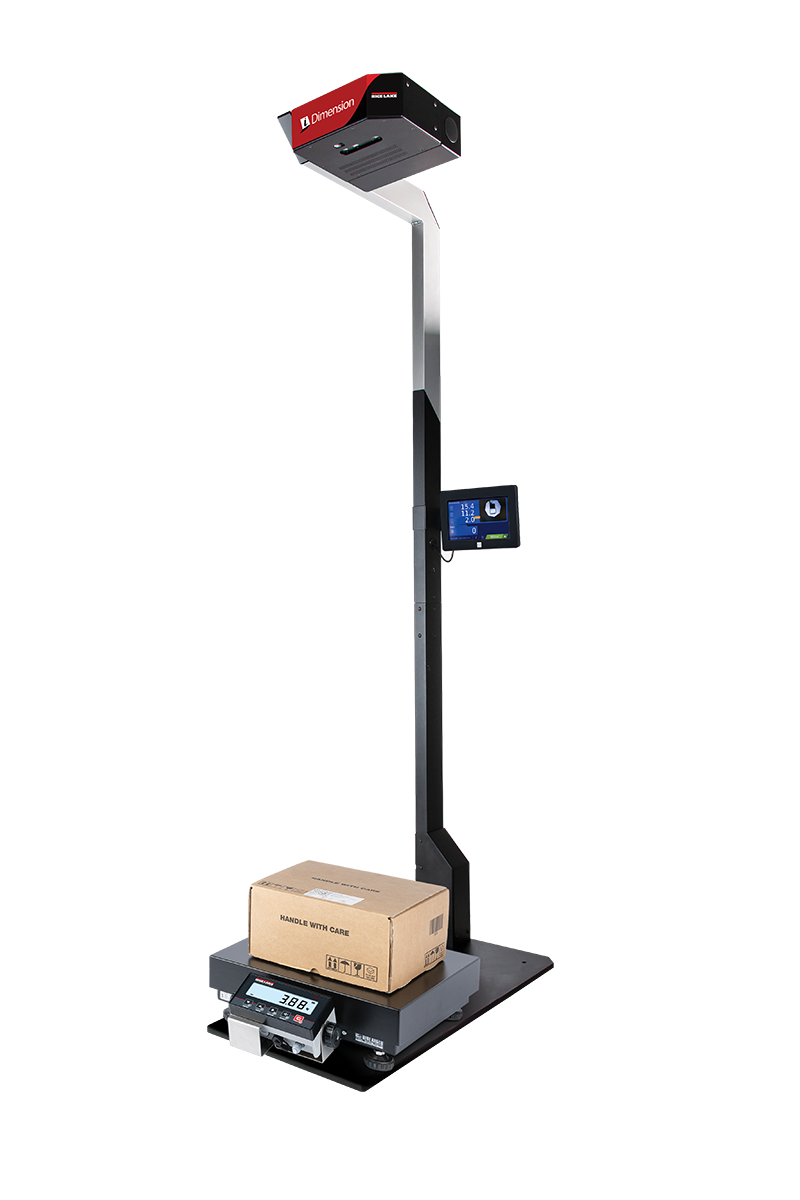

Weighing system for integrated data management with DFWL series weight indicator
By integrating the weighing system with DFWL Series indicator, you can send the weight value to the iDimension® Plus and display it on its display along with the dimensional data.
Measuring Capabilities based on Pole Assembly Height
| Model | XL at 1.2 m | XL at 1.5 m | XL at 2 m | |||
|---|---|---|---|---|---|---|
| Platform Distance | 48 in (1,200 mm) | 60 in (1,500 mm) | 80 in (2,000 mm) | |||
| Min/Max | Min | Max | Min | Max | Min | Max |
| Length | 1.2 in (30 mm) | 40 in (1,000 mm) | 1.2 in (30 mm) | 48 in (1,200 mm) | 8 in (203 mm) | 48 in (1,200 mm) |
| Width | 1.2 in (30 mm) | 24 in (600 mm) | 1.2 in (30 mm) | 32 in (800 mm) | 8 in (203 mm) | 32 in (800 mm) |
| Height | 0 in (0 cm) | 24 in (600 mm) | 0 in (0 mm) | 28 in (700 mm) | 4 in (102 mm) | 32 in (800 mm) |
| Division | 0.2 in (5 mm) | 0.2 in (5 mm) | 0.5 in (10 mm) | |||
|
Legal for Trade approved minimum and maximum measurements are available from the country specific certificate of approval. |
||||||

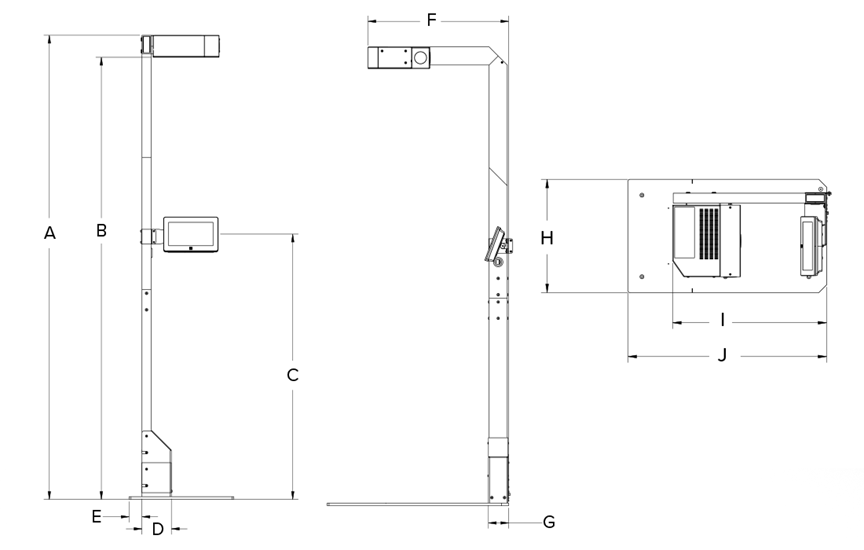

iDimension Plus, 1.5 m Dimensions
| iDimension Plus, 1.5 m | |||
|---|---|---|---|
| A | 63.20 in (1,605 mm) | F | 19.40 in (493 mm) |
| B | 60.20 in (1,529 mm) | G | 2.80 in (71 mm) |
| C | 36.10 in (917 mm) | H | 14.30 in (363 mm) |
| D | 4.00 in (102 mm) | I | 19.40 in (493 mm) |
| E | 1.80 (46 mm) | J | 25.00 in (635 mm) |
iDimension Plus XL Scanning Head Assembly Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 9.00 in (229 mm) | E | 2.00 in (51 mm) | I | 4.50 in (114 mm) |
| B | 8.50 in (216 mm) | F | 0.60 in (15 mm) | J | 1.50 in (38 mm) |
| C | 7.20 in (183 mm) | G | 1.60 in (41 mm) | K | 3.00 in (76 mm) |
| D | 3.30 in (84 mm) | H | 1.50 in (38 mm) | L | M4 × 0.7 threaded hole |
iDimension XL Mounting Bracket (pn 198708) Dimensions
| Dimensions | |||
|---|---|---|---|
| A | 7.37 in (187 mm) | D | 2× 0.28 |
| B | 4.12 in (105 mm) | E | 3× 0.19 |
| C | 3.14 in (80 mm) | ||

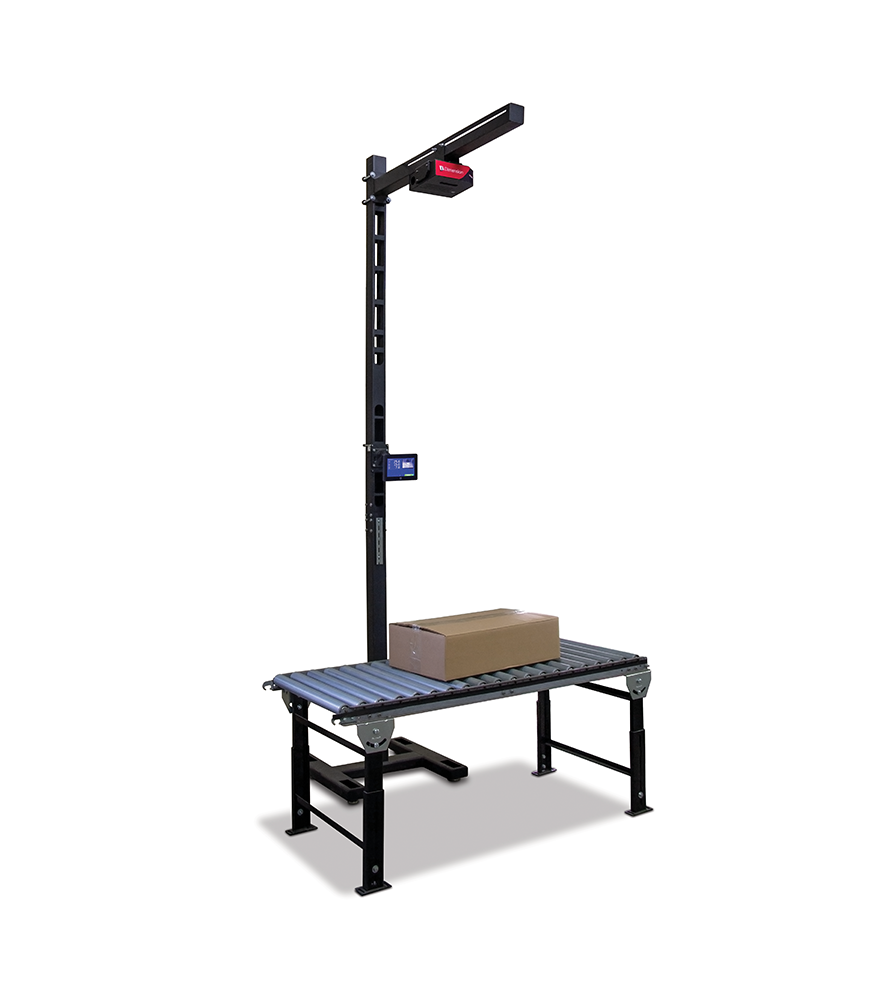

Optional iDimension Plus XL Floor Mount Stand Assembly Dimensions
| Dimensions | |
|---|---|
| A | 47.34 in (1,202 mm) |
| B | 123.13 in (3,128 mm) |
| C | 24.21 in (615 mm) |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| Rice Lake Dimensioning Solutions | Email |
Articles | ||
| The New Frontier of Dimensioning Systems | Email |
Articles |
Videos/Webinars
| Title | View | Download | Category | |
|---|---|---|---|---|
| ScaleTalk: Connecting iDimension Plus to a 680 Indicator with USB | View | Email |
Weight Indicators | |
| ScaleTalk: How to Add a BenchPro Scale to iDimension Plus | View | Email |
ScaleTalk: Connecting iDimension Plus to a 680 Indicator with USB
ScaleTalk: How to Add a BenchPro Scale to iDimension Plus
Parts
iDimension Plus Standard camera versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
204599 | iDimension Plus w/US pwr cord,1.2M Pole Mount System, OIML/MID/EU/NMI/NTEP Approved |
List Price: $7,245.00 |
|
|
|
204596 | iDimension Plus w/US pwr cord,1.5M Pole Mount System, OIML/MID/EU/NMI/NTEP approved |
List Price: $7,245.00 |
iDimension Plus 4K camera versions
iDimension Plus XL Standard camera versions
iDimension Plus XL 4K camera versions
Mounting options for iDimension Plus XL
Options
International power plugs
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
PWCORDEUVDE | Version with EU power cord. |
Consult |
|
|
PWCORDAUSVDE | Version with AU power cord. |
Consult |
|
|
PWCORDUKVDE | Version with BS1363 power cord (UK plug). |
Consult |
