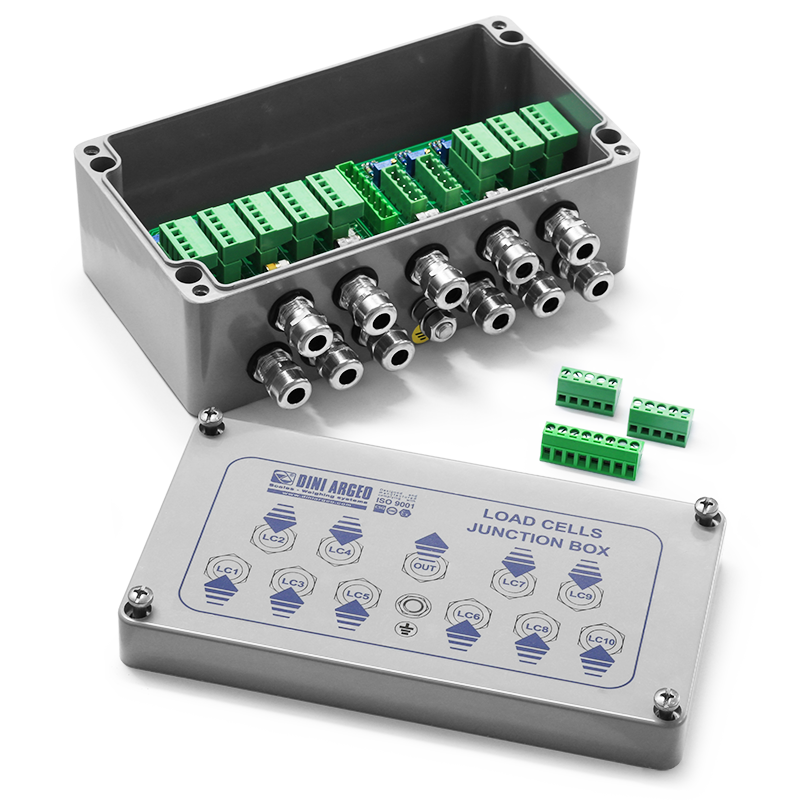

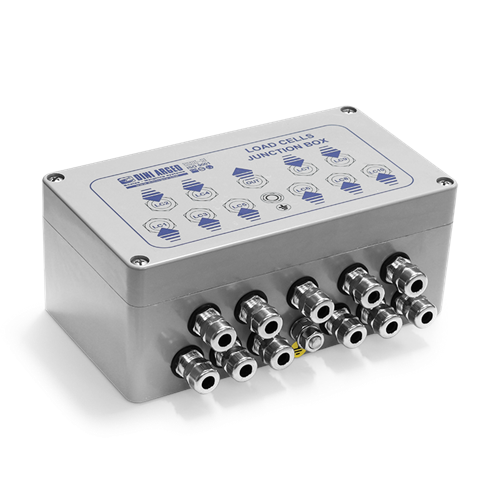

JB10Q Equalized Junction Box, with Up to 10 Load Cell
Junction box fitted with electronic board for junction and equalisation of up to 10 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
Analogic JB10Q Specifications
- Reinforced polyester case in fiberglass, ideal for harsh environments
- 10 + 1 waterproof metallic cable glands
- Surge Arresters against electric discharges and disturbances
- IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel)
- Maximum input voltage: 24Vdc
- Maximum input current: 700mA
- Maximum input load cell signal: 1000mV
- Temperature effect: 50ppm/°C
- Compact dimensions (lxwxh): 220x120x90mm
- Removable terminals
Digital JB10Q Specifications
- Designed for the connection to digital load cells, in RS485
- 24Vdc input for the power supply of the load cells
- Reinforced polyester case in fiberglass, ideal for harsh environments
- 10 + 1 waterproof metallic cable glands
- Surge Arresters against electric discharges and disturbances
- IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel)
- Compact dimensions (lxwxh): 220x120x90mm
- Removable terminals
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
JB10Q | Equalisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 cable glands. With surge arresters, PCB, Terminal block, plastic box and UL marked labels (if applicable). |
Consult |
|
|
|
JB10QD-1 | RS485 equalisation box for connection with up to 10 digital load cells. Reinforced polyester box, with 10 + 1 cable glands and surge arresters. |
Consult |
Options
Protection for junction box/electronic circuits
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|

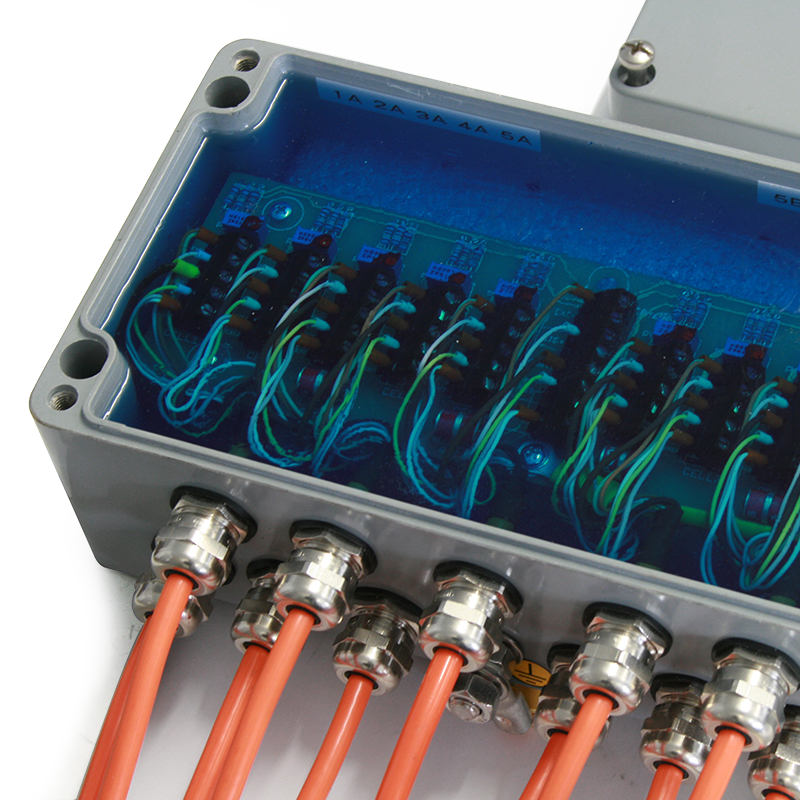

GELBOX | Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml. |
Consult |

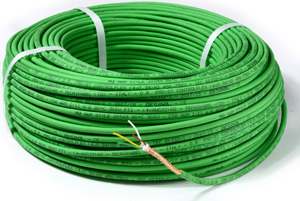

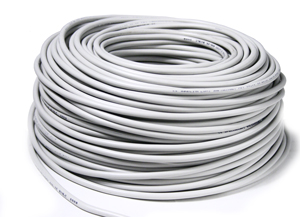

Connection Cables
