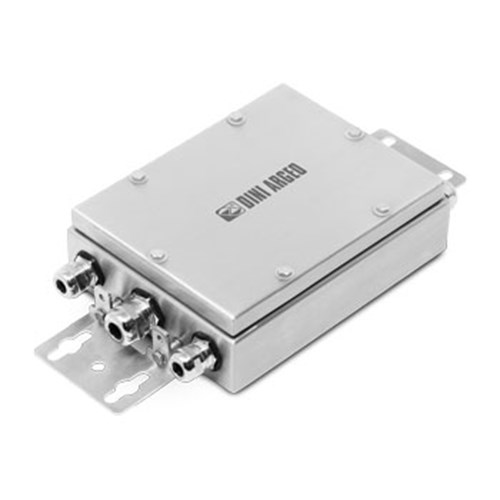

JB4QIP69K: Equalized Junction Box with 4 Inputs, in Stainless Steel with IP68/IP69K Protection
- AISI 304 stainless steel case (AISI 316 upon request)
- Protection rating: IP68/IP69K
- IP69K standard anti-condensation valve
- Metallic cable glands
- Maximum input voltage: 24Vdc
- Maximum input current: 700mA
- Maximum input load cell signal: 1000mV
- Temperature effect: 50ppm/°C
- 4 cell inputs on screw connector
- Dimensions: 221x105x39mm (lxwxh)
- Easy to sanitize with water jets
- Adjustable height to increase cleaning space
NOTE: available in ATEX version upon request.
AISI 304 stainless steel junction box with IP68/IP69K protection from water and dust, fitted with electronic board for junction and equalisation of 4 load cells.
Equalisation board with signal adjustment trimmer, for an accurate and reliable equalisation.
The reversible fixing bracket allows the junction box to be hung on the wall, thus saving space.
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
JB4QIP69K | Stainless steel equalisation box for connection with up to 4 load cells. IP68/IP69K protection rating, with 4 + 1 fairleads. |
Consult |
