JB8Q Equalized Junction Box, with Up to 8 Load Cells

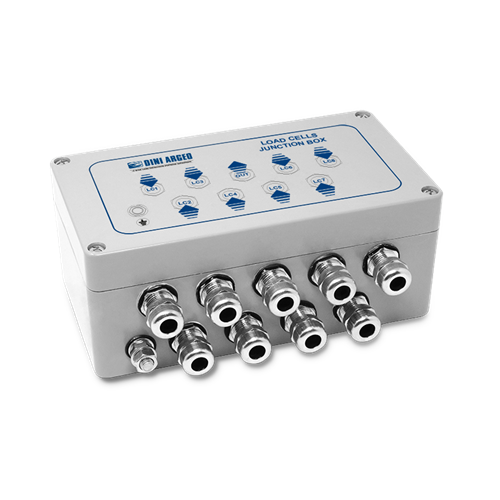

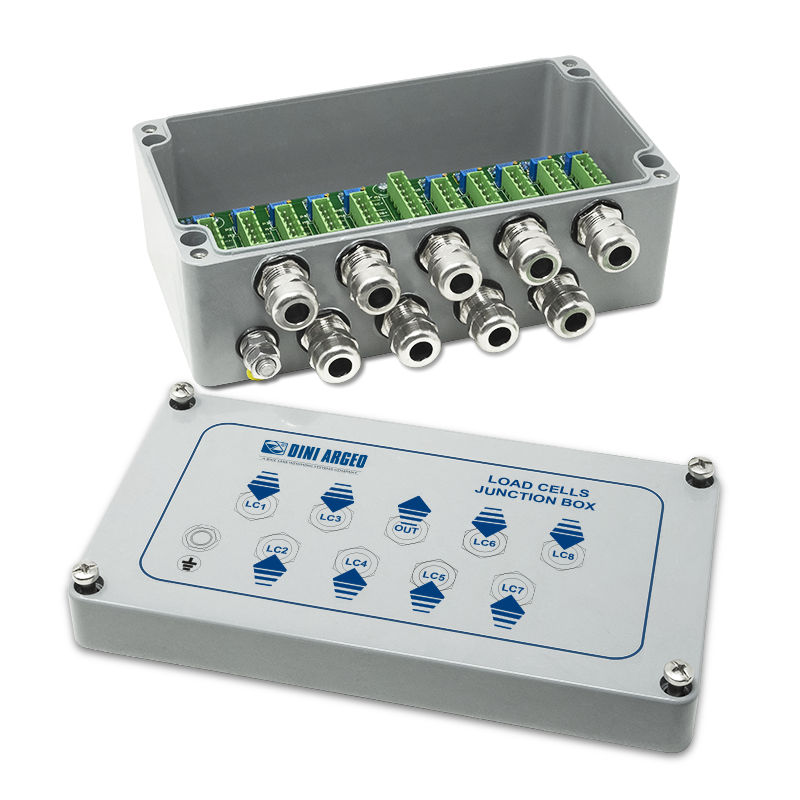

Junction box fitted with electronic board for junction and equalisation of up to 8 load cells. Particularly suitable for weight bridges, thanks to the Surger Arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
Specifications
- Reinforced polyester case in fiberglass, ideal for harsh environments
- 8 + 1 PG11 waterproof metallic cable glands
- Surge Arresters against electric discharges and disturbances
- IP66 protection degree or IP68 with the use of GELBOX anti condensation gel (optional, you need 1200ml of gel)
- Maximum input voltage: 24Vdc
- Maximum input current: 700mA
- Maximum input load cell signal: 1000mV
- Temperature effect: 50ppm/°C
- Compact dimensions (lxwxh): 220x120x90mm
- Removable terminals
