JBQ: Equalised Junction Box, with up to 4 Load Cells

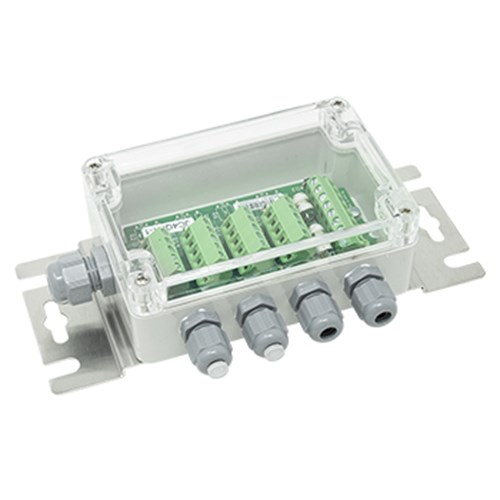

IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
JBQ Equalized Junction Box Specifications
- Case in ABS. Protection degree: IP67
- Maximum input voltage: 24Vdc
- Maximum input current: 700mA
- Maximum input load cell signal: 1000mV
- Temperature effect: 50ppm/°C
- Dimensions (lxwxh): 120x80x55mm
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
JB4Q | Equalisation box for connection with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads. |
Consult |
Options
Similar solutions for ATEX environments
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
JB4QA | ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
|
|
EXCB6 | Blue shielded cable 6x0.22 mmý, only for EX i (2GD) assemblies. PVC inner sheath. Tinned copper braid shielding. Polyurethane outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 7 x O.D. _/m |
Consult |
|
|
JB4A | Junction box for up to 4 cells for hazardous areas ATEX, in ABS IP67, with 4 + 1 fairleads for connection with up to 4 load cells. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
Protection for junction box/electronic circuits
Connection cables
Similar Solutions
Related Products
JBQA: Atex Equalised Junction Box, With Up To 4 Load Cells
Simple junction box with IP67 protection and 4 inputs equipped with electronic board for junction of the signals of 2, 3, or 4 load cells. Screw terminal boards to facilitate the connection. The protection circuit protects against lightning and overvoltage.
The reduced costs make it the ideal choice for static weighing systems such as silos, tanks and big containers.
JB4QIP69K: Equalized Junction Box with 4 Inputs, in Stainless Steel with IP68/IP69K Protection
AISI 304 stainless steel junction box with IP68/IP69K protection from water and dust, fitted with electronic board for junction and equalization of four load cells.
JB10QIP69K Equalized Junction Box with 10 Inputs, in Stainless Steel with IP68 and IP69K Protection
Junction and equalization box in AISI 304 stainless steel with certified IP68 and IP69K protection from water and dust. Suitable for use outdoors, in weighbridges and in environments with high hygiene requirements. This junction box is equipped with surge arresters against electric discharges and disturbances.
JBQI Equalized Junction Box with 4/6 Inputs, in IP65 Stainless Steel
Stainless steel junction box with IP65 protection from water and dust, and fitted with electronic board for junction and equalization of 4 or 6 load cells. Terminal board with screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
JB10Q Equalized Junction Box, with Up to 10 Load Cell
Junction box fitted with electronic board for junction and equalization of up to 10 load cells. Particularly suitable for weighbridges, thanks to the surge arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
JB1I Junction Boxes for 4 Pole Load Cells, in IP68 Stainless Steel
Stainless steel junction box with IP68 protection from water and dust, equipped with electronic board to join two load cell cable sections. The 8 screw terminal boards facilitate the cable connection. The stainless steel body ensures solidity and durability.
JB4 Junction Box with Overvoltage Protection, Up to 4 Load Cell
Simple junction box with IP67 protection and 4 inputs equipped with electronic board for junction of the signals of 2, 3, or 4 load cells. Screw terminal boards to facilitate the connection. The protection circuit protects against lightning and overvoltage.
The reduced costs make it the ideal choice for static weighing systems such as silos, tanks and big containers.
JB4Plus Equalized Junction Box with Overvoltage Protection, Up to 4 Load Cell
Junction box with four inputs and protection IP67 suitable for outdoor environments. It can be used as equalization or simple junction box of 2, 3 or 4 load cells.
JB8Q Equalized Junction Box, with Up to 8 Load Cells
Junction box fitted with electronic board for junction and equalization of up to 8 load cells. Particular suitable for weighbridges, thanks to the surge arresters against electric discharges and disturbances. Case suitable for harsh environments, with metallic cable glands and grounding. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
JBQ: Equalised Junction Box, with up to 4 Load Cells
IP67 junction box fitted with electronic board for junction and equalization of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
JBQA ATEX Equalized Junction Box, with Up to 4 Load Cell
IP67 junction box fitted with electronic board for junction and equalization of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
JBQAI Equalized Junction Box for ATEX Environments, with Up to 4 Load Cell
Stainless steel junction box with IP66 protection from water and dust, and fitted with an intrinsically safe electronic board for junction and equalization of load cells. Terminal boards with screws for easing the connection of the load cells and signal adjustment trimmer, for an accurate and reliable equalization.
JBA ATEX Junction Box, with Up to 4 Load Cells
IP67 junction box for junction of 2, 3, or 4 load cells.
