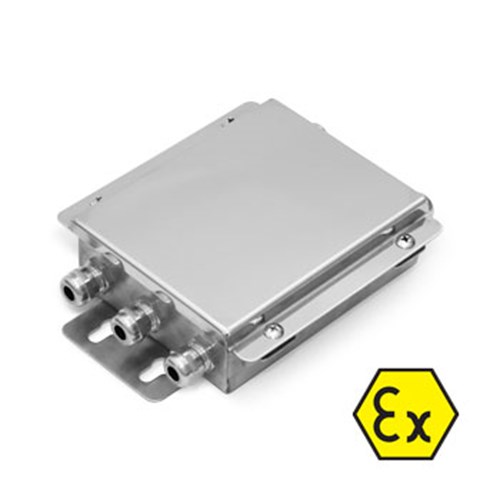

JBQAI Equalized Junction Box for ATEX Environments, with Up to 4 Load Cell
- Designed and made according to the ATEX directive, group II category 2GD, according to the IEC/EN60079-0, IEC/EN60079-11, and IEC/EN60079-31 norms.
- Stainless steel case.
- PG9 metallic cable gland.
- Protection degree: IP66.
- Dimensions: 190x130x45mm (lxwxh).
NOTE: the dimensions are not compatibles for mounting on 4 load cells platforms/pallet weighers.
Marking:
- ATEX II 2G Ex ib IIC T6 Gb for gases.
- ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust.
Stainless steel junction box with IP66 protection from water and dust, and fitted with an intrinsically safe electronic board for junction and equalisation of load cells. Terminal boards with screws for easing th connection of the load cells and signal adjustment trimmer, for an accurate and reliable equalisation.
ATEX Parameters of the Junction Box
- Uo = Ui = 24Vdc
- Io = Ii = 174mA
- Co = Ci = 0mF
- Lo = Li = 0mH
or - Uo = Ui = 12Vdc
- Io = Ii = 3,33A
- Co = Ci = 0mF
- Lo = Li = 0mH
