JBQI Equalized Junction Box with 4/6 Inputs, in IP65 Stainless Steel
- Stainless steel case
- Protection degree: IP65
- Maximum input voltage: 24VDC
- Maximum input current: 700mA
- Maximum input load cell signal: 1000mV
- Temperature effect: 50ppm/°C
- Protection diodes against surcharges or electrostatic discharges
- 4 cell inputs on screw connector or on soldering squares (for JB4QI model)
- 6 cell inputs on screw connector or on soldering squares (for JB6QI model)
- Dimensions: 155x158x45mm (lxwxh) for JB4QI
- Dimensions: 190x132x50mm (lxwxh) for JB6QI
Stainless steel junction box with IP65 protection from water and dust, and fitted with electronic board for junction and equalization of 4 or 6 load cells. Terminal board with screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalization.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|

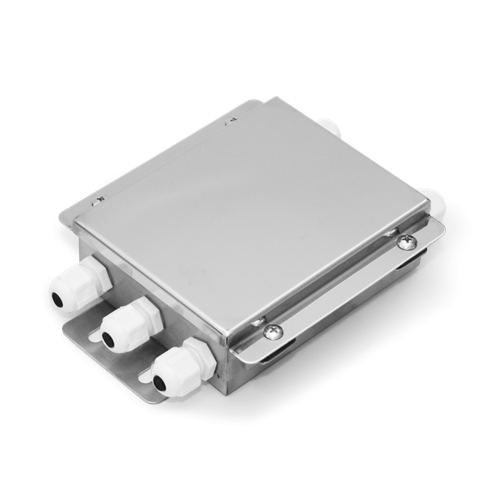

JB4QI | Stainless steel equalisation box for connection with up to 4 load cells. IP65 protection rating, with 4 + 1 fairleads. |
Consult |
|
|

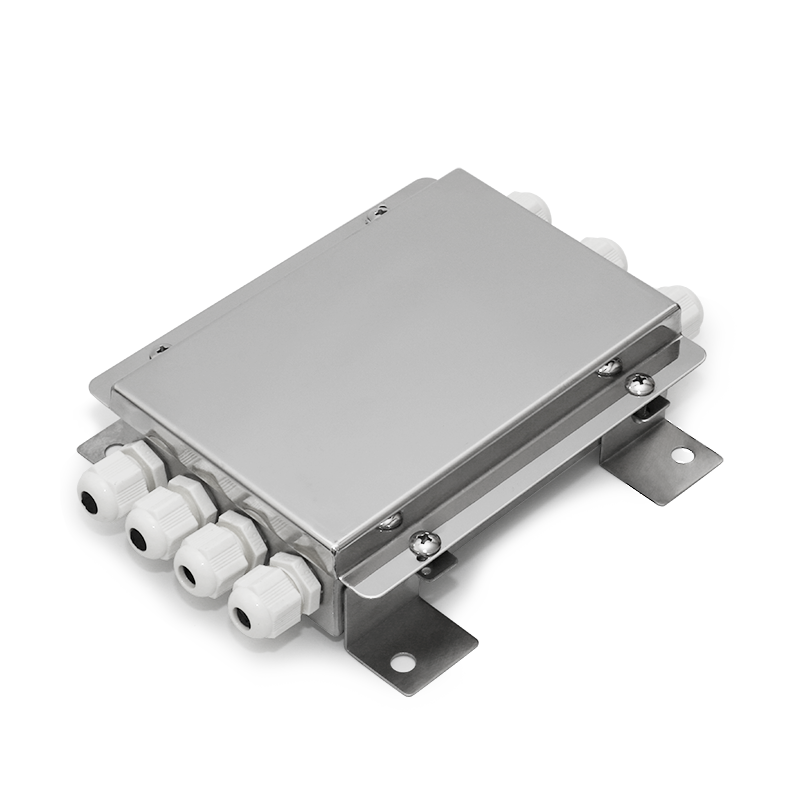

JB6QI | Stainless steel equalisation box for up to 6 load cells. IP65 protection degree, with 6 + 1 fairleads. |
Consult |
Options
Similar solutions for ATEX environments
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
JB4A | Junction box for up to 4 cells for hazardous areas ATEX, in ABS IP67, with 4 + 1 fairleads for connection with up to 4 load cells. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
|
|
JB4QA | ATEX equalisation box made of ABS IP67, for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
|
|
JB4AI | Stainless steel IP66, ATEX, juntion box for up to 4 cells. 4 + 1 fairleads. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
|
|
|
JB4QAI | ATEX equalisation box made of stainless steel IP66 for up to 4 cells. 4 + 1 fairleads. Marking: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT). |
Consult |
