JCQ Equalized Junction Cards for Load Cells
Junction and equalisation cards for up to 10 load cells. Simple to install and connect thanks to the screw terminal boards and the signal adjustment trimmers.
JCQ Equalized Junction Cards Specifications
- Maximum input voltage: 24Vdc
- Maximum input current: 700mA
- Maximum input load cell signal: 1000 mV
- Temperature effect: 50ppm/°C
- Fitted with Surge Arresters in the JC10Q version, against electric discharges and disturbances
JCQ Equalized Junction Cards Dimensions
- JC4Q: 107 x 60 (l x w) mm
- JC10Q: 200 x 62 (l x w) mm
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|

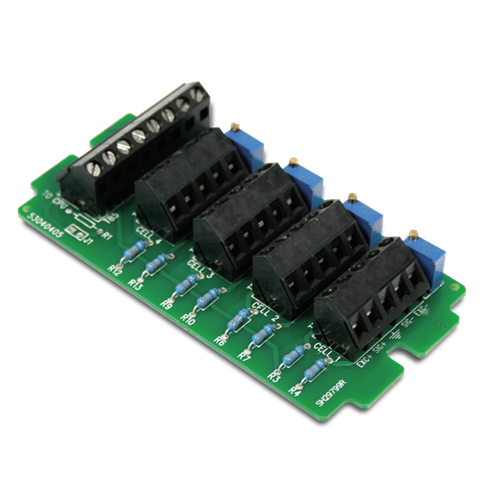

JC4Q | Equalisation board for up to 4 cells. With UL marked PCB, Terminal block, plastic box and labels (if expected). |
Consult |
|
|

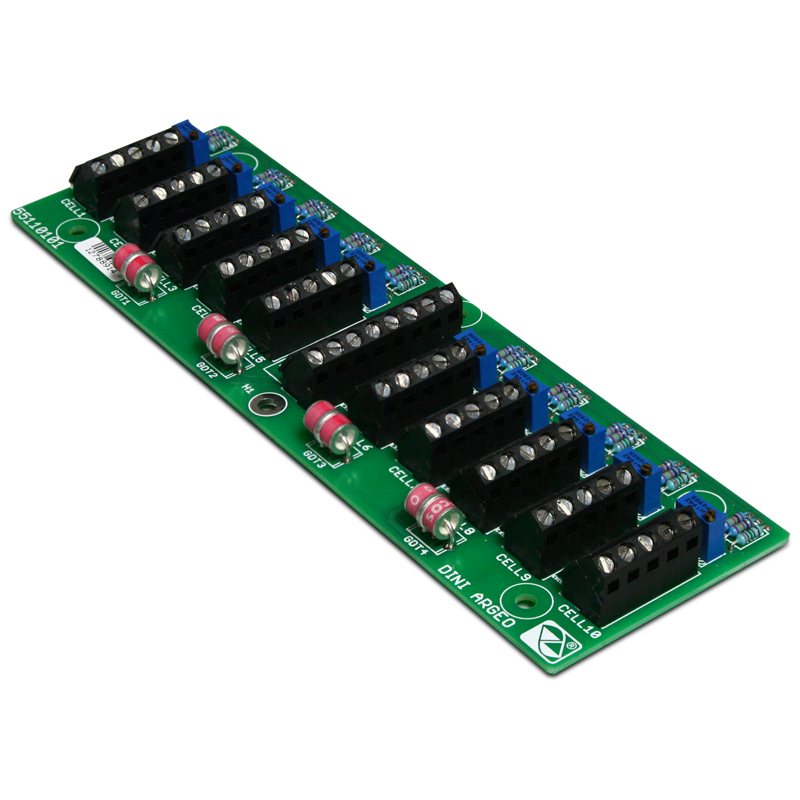

JC10Q | Equalisation board for up to 10 cells, fitted with surge arresters. |
