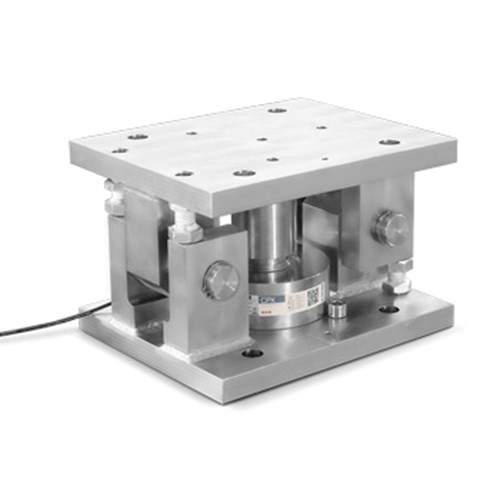

KCP100H Zinc-Plated Steel Kits, for CPX Compression Load Cells
- Designed for mounting 50 and 100t CPX cells
- Galvanized steel construction (stainless steel by quote)
- High resistance to tipping, up to 400KN
- Self-aligning joint designed to allow mechanical expansion of the structure while maintaining weighing accuracy.
- Locking screws and bypass for completely safe load cell maintenance.
- Total weight of the kit (without load cell): 90kg
- Available in EN 1090 certified version.
KCP100H is an accessory designed for the correct mounting and operation of CPX series compression load cells below large capacity silos, both horizontal and vertical, in indoor or outdoor environments (up to 100t per support point). KCP100H offers high protection against overloads and side forces and actively contributes to protection against accidental overturning of the silo.
|
Protection
|
Force (KN)
|
|
| ⇅ |
Max lift-off force
|
400
|
| ⇆ |
Max side force
|
200
|
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KCP100H | Kit in zinc-plated steel for assembling a CPX load cell from 50.000 kg to 100.000 kg. (Load cell not included) |
Consult |
|
|
|
KCP100H-1090 | Kit in zinc-plated steel for assembling a CPX load cell from 50.000 kg to 100.000 kg. (Load cell not included) EN1090 certified version. |
Consult |
