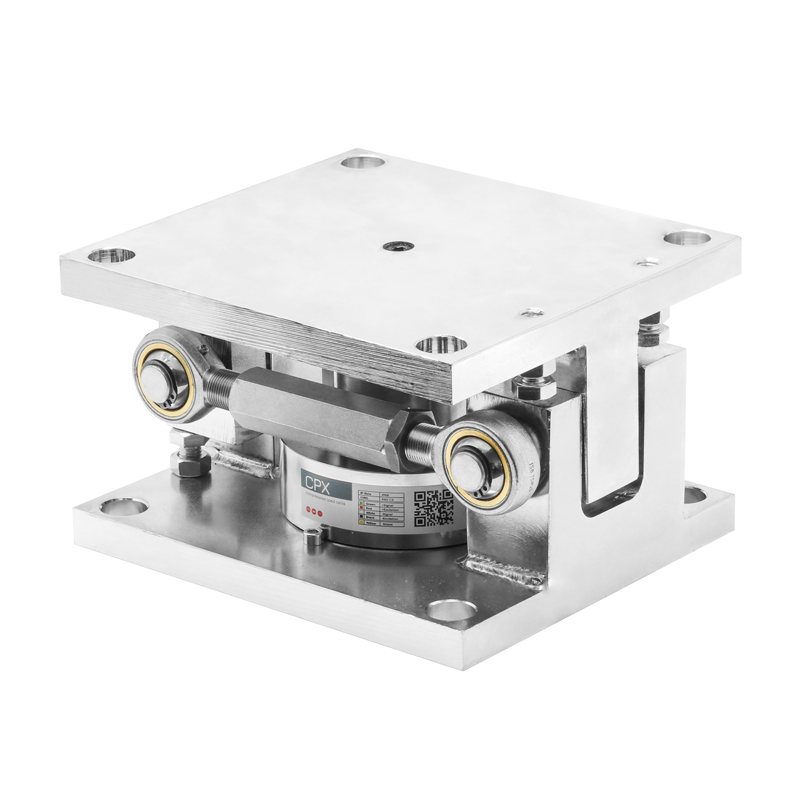

KCP50 Series Zinc-Plated Steel, for CPX/CPA Compression Load Cells
- Designed for mounting 30t CPX and 20 to 50t CPA load cells
- Zinc-plated steel construction (stainless steel by quote)
- Protects against tipping, withstanding forces up to 130KN
- Self-aligning system designed to allow mechanical expansion of the structure while maintaining weighing precision
- Locking screws and bypass for completely safe load cell maintenance.
- Total weight of the kit (without load cell): 28kg with stay rod, 27kg without stay rod.
- Optional lateral stay rod available, particularly suitable to counter lateral disturbing forces in dynamic applications (e.g. mixers).
- Available in EN 1090 certified version.
- Available in ATEX version for zones 1&21, 2&22.
KCP50 is an accessory designed for the correct mounting and operation of CPA and CPX series compression load cells under silos, hoppers and tanks (up to 50t per support point).
KCP50 offers a correct protection against overloads and side forces and actively contributes to the protection against accidental tipping of the silo.
|
Protection
|
Force (KN)
|
|
| ⇅ |
Max lift-off force
|
130
|
| ⇆ |
Max side force
|
100
|
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KCP50 | Kit in zinc-plated steel for assembling a 30.000 kg CPX load cell and CPA load cells from 20.000 to 50.000 kg (Load cell not included). |
Consult |
|
|
KCP50-NS | Kit in zinc-plated steel for assembling a 30.000 kg CPX load cell and CPA load cells from 20.000 to 50.000 kg. (Load cell not included) Optional stay rod. |
Consult |
|
|
|
KCP50-1090-NS | Kit in zinc-plated steel for assembling a 30.000 kg CPX load cell and CPA load cells from 20.000 to 50.000 kg. (Load cell not included) EN1090 certified version. Optional stay rod. |
Consult |
Options
Stay rod
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LNK20 | Zinc-plated-steel stay rod with ball-and-socket joints. Max 29 kN. |
Consult |
