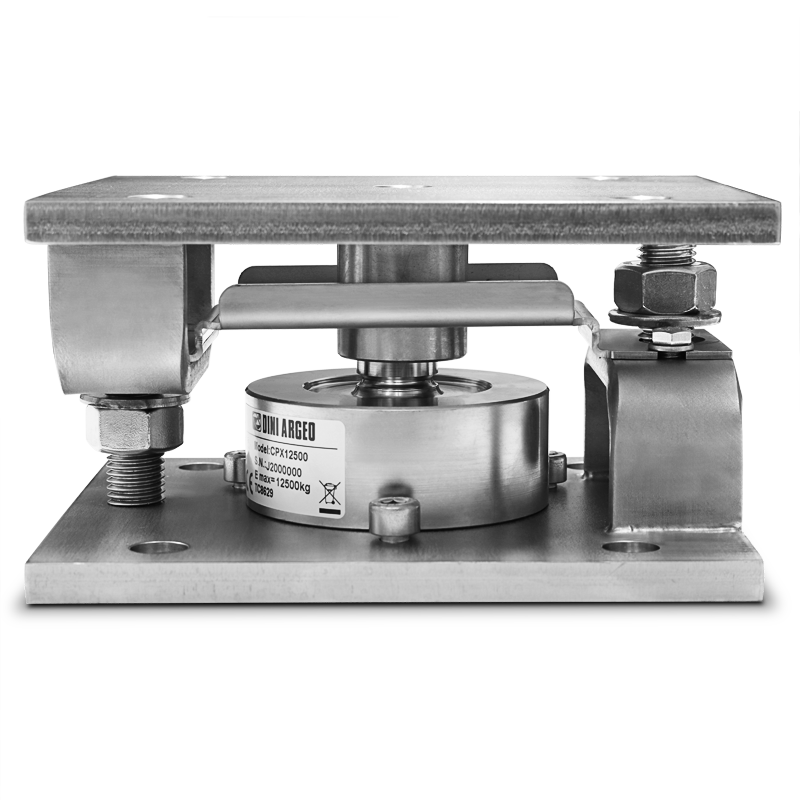

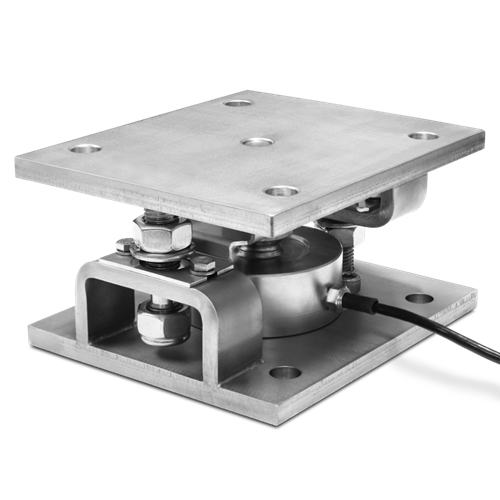

KCPN Series Stainless Steel Kits, for CPX/CPA Compression Load Cells
- AISI 304 stainless steel body.
- Great resistance to lateral forces.
- Nut for maintaining the raised position, for easy installation and/or substitution of the load cell.

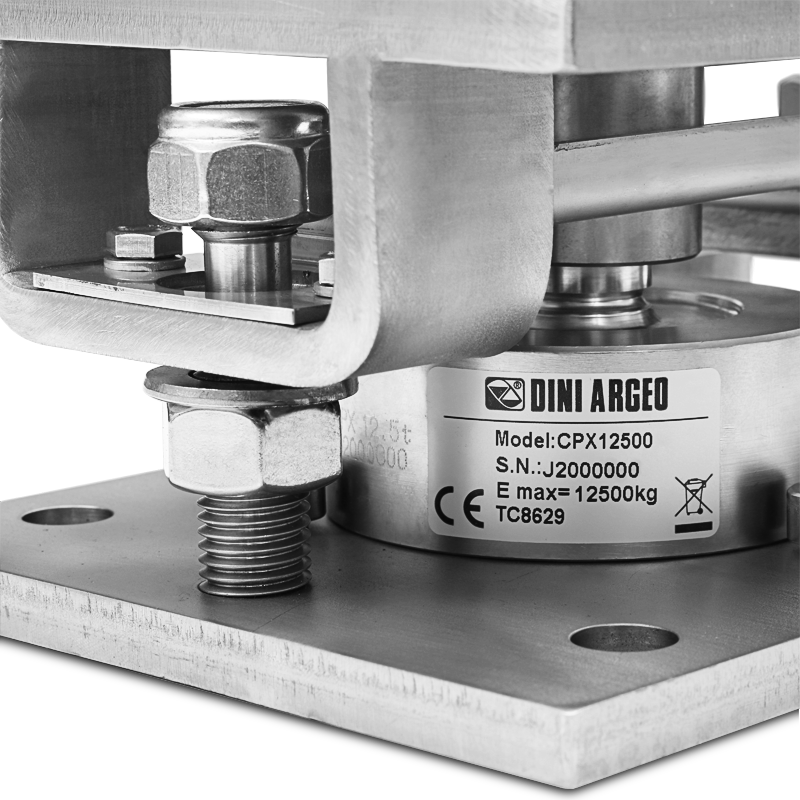

- Limit-switch nuts for protection of the load cells in case of overload.
- Self-centering connection segment between lower and upper plates.
- Dummy load cells functioning for the weighing of liquids.
- The KCPN kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.
Mounting kits for compression load cells CPX series up to 100000 kg and CPA up to 10000 kg, suitable for weighing silos, tanks and hoppers of a large size.
Advantages:
- Body in stainless steel AISI 304.
- Centering plate.
- Protection against electrostatic discharges.
- Anti-overturn system.
- Locking/bypass system for facilitated transport and maintenance.
- ATEX version available for zones 1&21, 2&22.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KCPN10 | Stainless steel kit for assembling a CPX cell, up to 12,500kg and CPA up to 10,000kg (load cell not included). |
Consult |
|
|
|
KCPN15 | Stainless steel kit for assembling a 15000kg CPX cell (load cell not included). |
Consult |
|
|
|
KCPN30 | Stainless steel kit for assembling a 30.000kg CPX and 20.000kg CPA / 30.000 kg cells (load cell not included). |
Consult |
|
|
|
KCPN100 | Stainless steel kit for assembling a CPX cell from 50.000 to 100.000kg (load cell not included). |
Consult |
Options
Stay rod
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LNK2635 | Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can't be ATEX-certified. |
Consult |
|
|
LNKST | Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can't be ATEX-certified. |
Consult |
