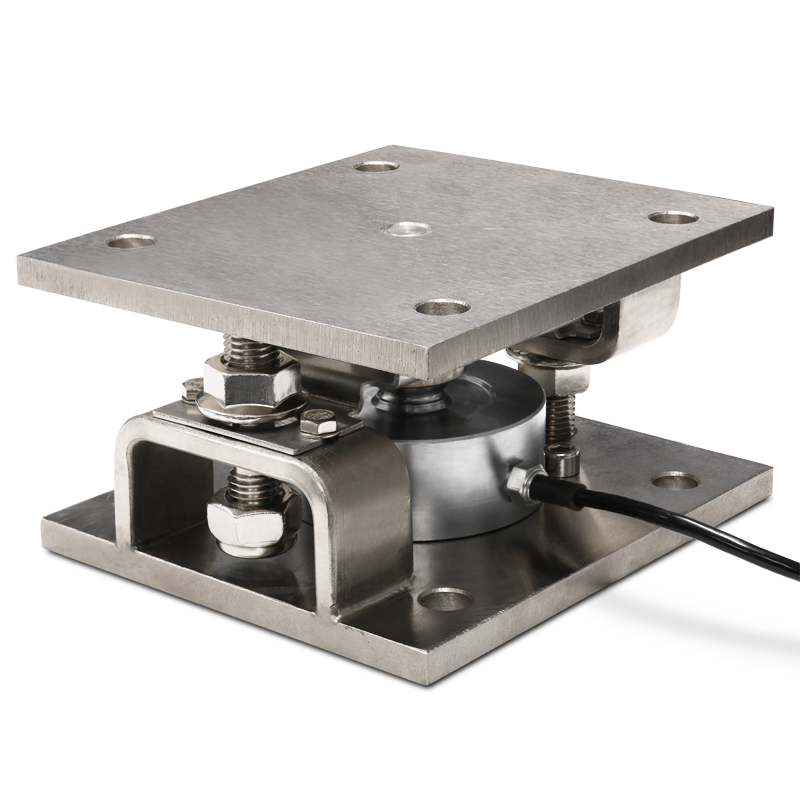

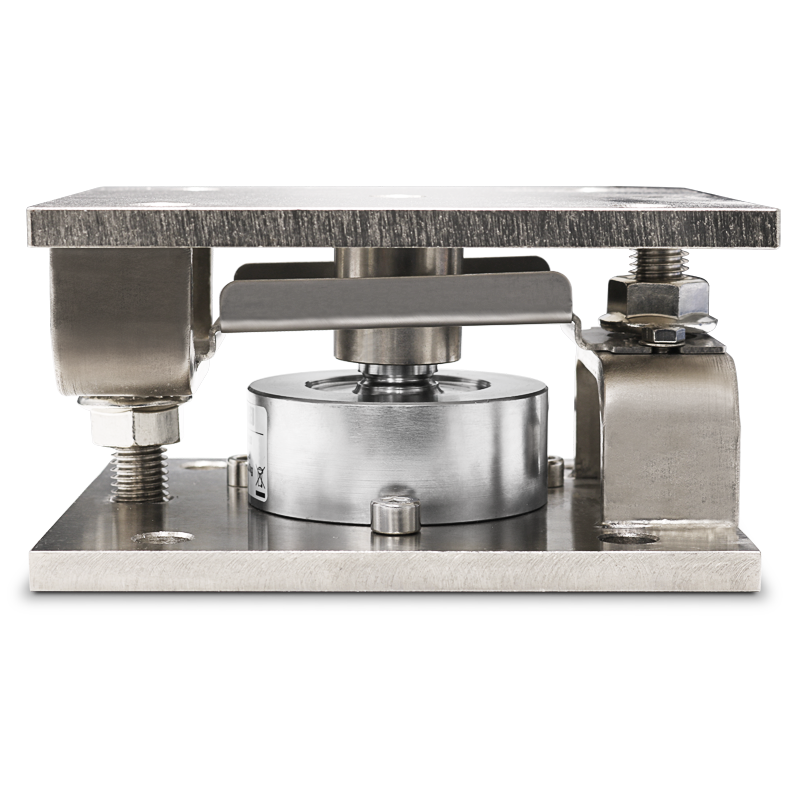

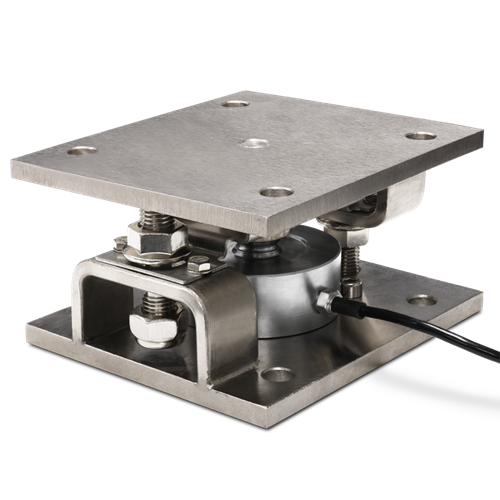

KCPNA Series Nickel-Plated Steel, for CPX/CPA Compression Load Cells

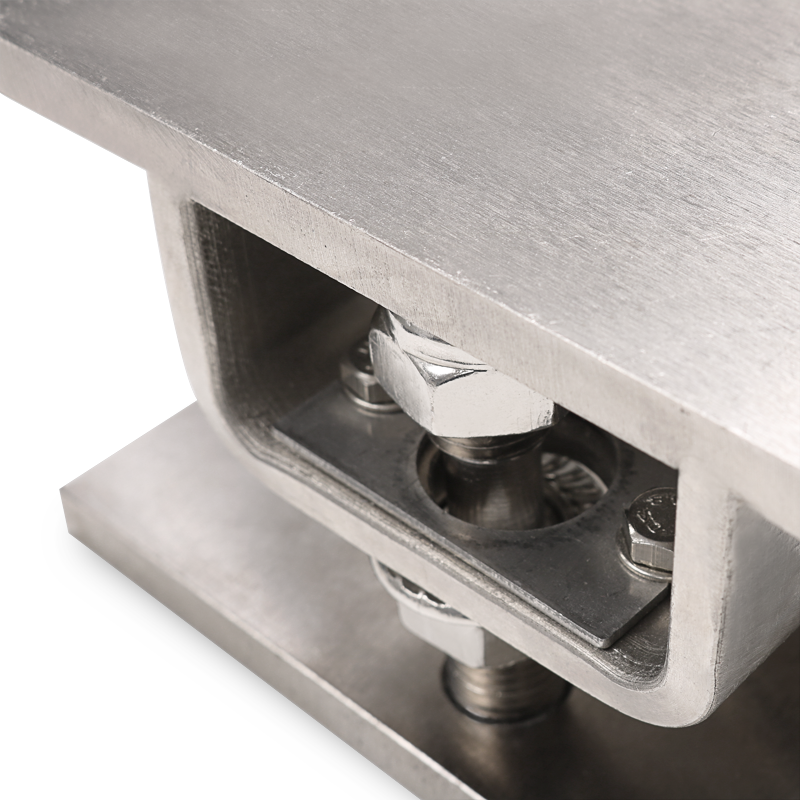

- Nickel-plated steel body
- Great resistance to lateral forces

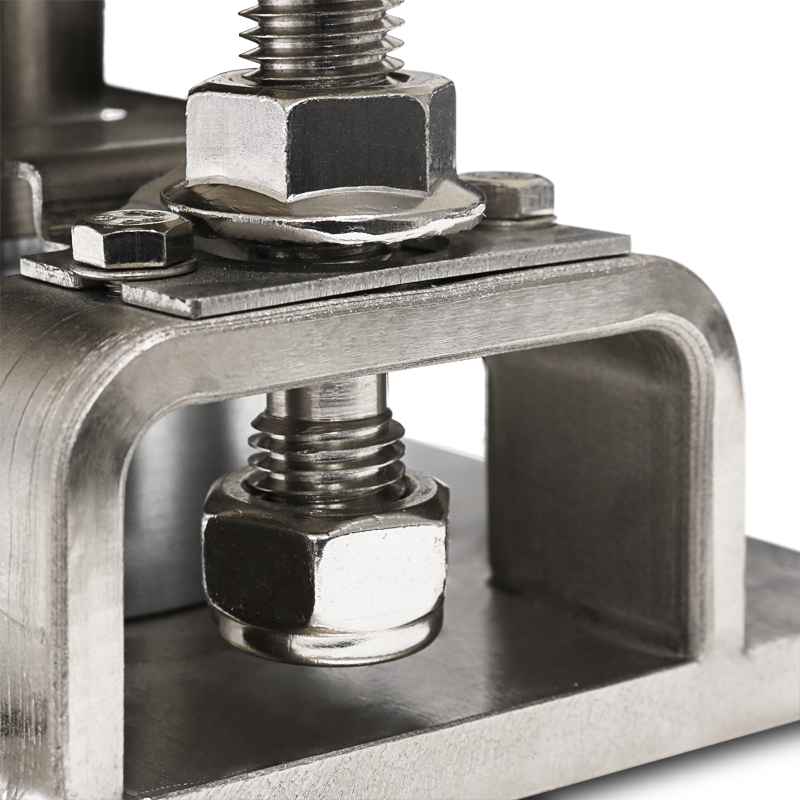

- Nuts for maintaining the raised position, for easy installation and/or substitution of the load cell
- Limit-switch nuts for protection of the load cells in case of overload
- Self-centering connection segment between lower and upper plates
- Dummy load cells functioning for the weighing of liquids
- The KCPNA kit is designed to allow the correct functioning of the cells and the requested weighing accuracy, within the limits described into the technical manual.
Mounting kit for compression load cells series CPX up to 12.500kg and CPA up to 10.000kg, suitable for silos, tanks and hoppers weighing.
Advantages:
- Self-centering connection segment between lower and upper plates
- Protection against electrostatic charges
- Anti-overturn system.
- Blocking system for an easy maintenance and a safe shipment
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KCPN10A | Nickel steel kit for assembling a CPX cell, up to 12,500kg and CPA cell up to 10,000kg (Load cell not included). |
Consult |
Options
Stay rod
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LNK2635 | Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can't be ATEX-certified. |
Consult |
|
|
LNKST | Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can't be ATEX-certified. |
Consult |
