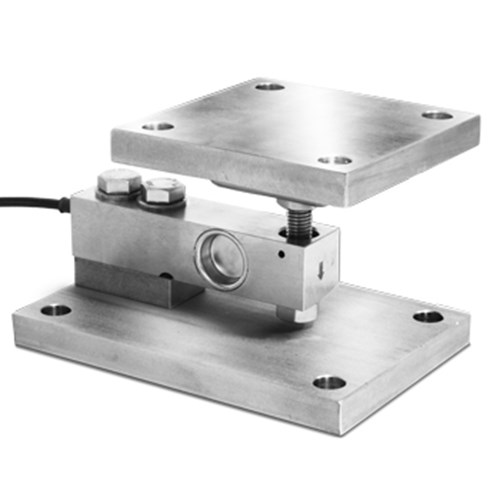

KSB Series Stainless Steel Kit, for SBX/SBK Shear Beam Load Cell

Simple and quick assembly, easy to install
Articulated upper plate for correct weighing in the presence of expansions/flexions
Height adjustment for optimal leveling of the structure to be weighed
Hinge adjustable in height
Mechanical compensation of thermal swellings and transversal forces
Guarantees the maximum precision of the load cell

Mounting kit for the SBX/SBK series shear beam cells from 3.000 to 5.000kg, suitable for weighing hoppers, tanks, platforms, etc.

AISI 304 stainless steel construction
Simple and quick assembly
Articulated upper plate for correct weighing in the presence of expansions/flexions
Height adjustment for optimal levelling of the structure to be weighed
Available in ATEX version for zones 1&21, 2&22.

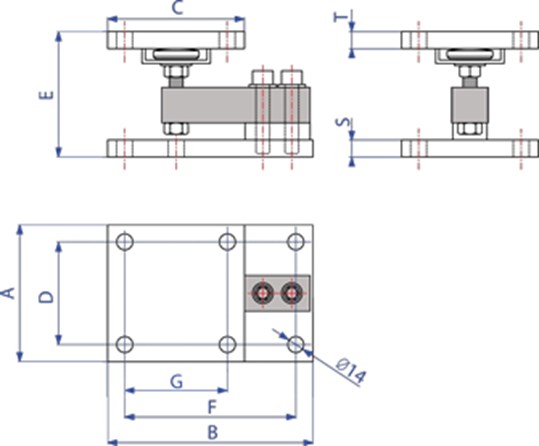

	A	B	C	D	E	F	G	S	T
KSB5	120	215	120	90	150	185	90	25	15

Resources / Downloads

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

	Part #	Description	List Price	Cart / Quote
	KSB5	Stainless steel kit for assembling 1 SBK/SBX cell from 3000 to 5000kg.	Consult	View

	Part #	Description	List Price	Cart / Quote
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can't be ATEX-certified.	Consult	View
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can't be ATEX-certified.	Consult	View
