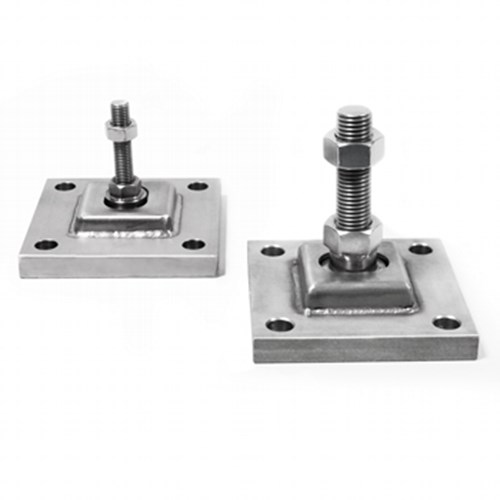

KSBH Articulated Plates for Fixing of Shear Beam Load Cell

KSB2H:

Applicable on SBxx series load cells, up to 2000kg
Threading M12, thread lenght 52mm
STAINLESS steel structure (AISI 304)
Fixing plate dimensions: 120x120mm (lxw)
Fixing holes diameter: Ø = 14mm
To combine with BLKM12I bush

KSB5H:

Applicable on SBxx series load cells, from 3000 to 5000kg
Threading M20, thread length 65mm
STAINLESS steel structure (AISI 304)
Fixing plate dimensions: 120x120mm (lxw)
Fixing holes diameter: Ø = 14mm
To combine with BLKM20I bush

Request More Information

HD View

Articulated plates for shear beam load cells, SBK or SBX models. Useful for fixing the cells to the floor or to rigid structures, and for the creation of weighing systems with several support points.

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
How to Choose the Best Load Cell for Your Needs		Email	All Load Cells	Articles

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	KSB2H	Stainless steel articulated plate with M12x50mm threading. Applicable to SB.. load cells with capacity up to 2000 kg. To combine with BLKM12I bush.	Consult	View
	KSB5H	Stainless steel articulated plate with M20x65mm threading. Applicable to SB.. load cells with capacity from 3000 to 5000 kg. To combine with BLKM20I bush.	Consult	View

Options

Locking bush for SBX/SBK cells

Part #	Description	List Price	Cart / Quote
BLKM12	Nickel-plated steel M12 bush for SBH load cells.	Consult	View
BLKM12I	Stainless steel M12 bush.	Consult	View
BLKM20I	Stainless steel M20 bush.	Consult	View
