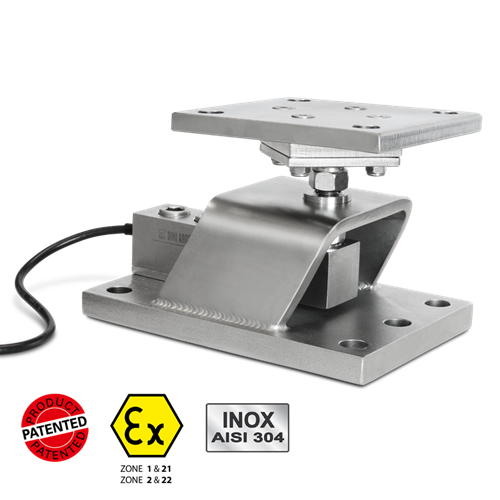

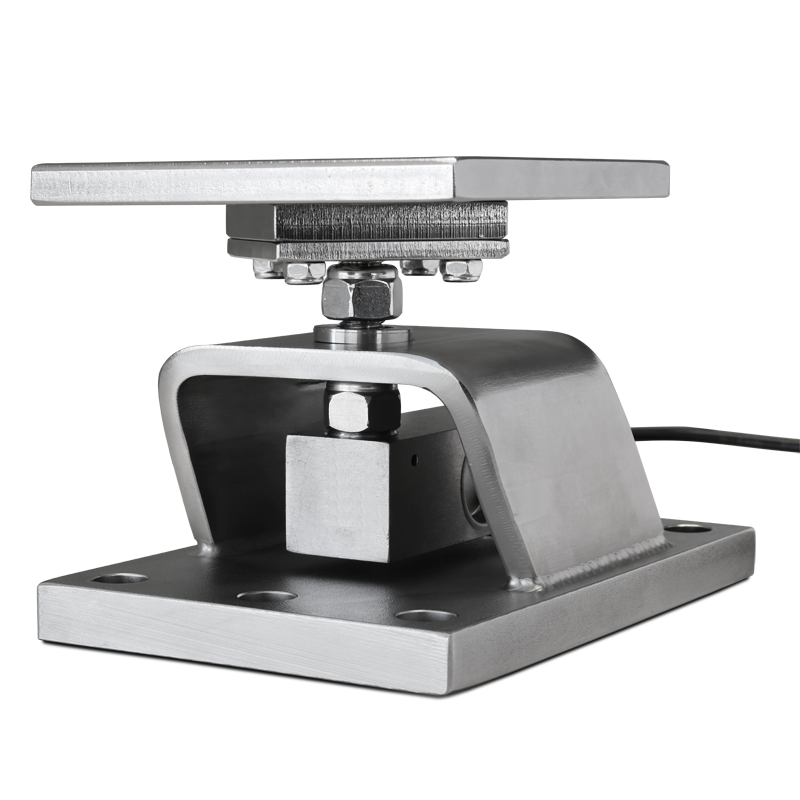

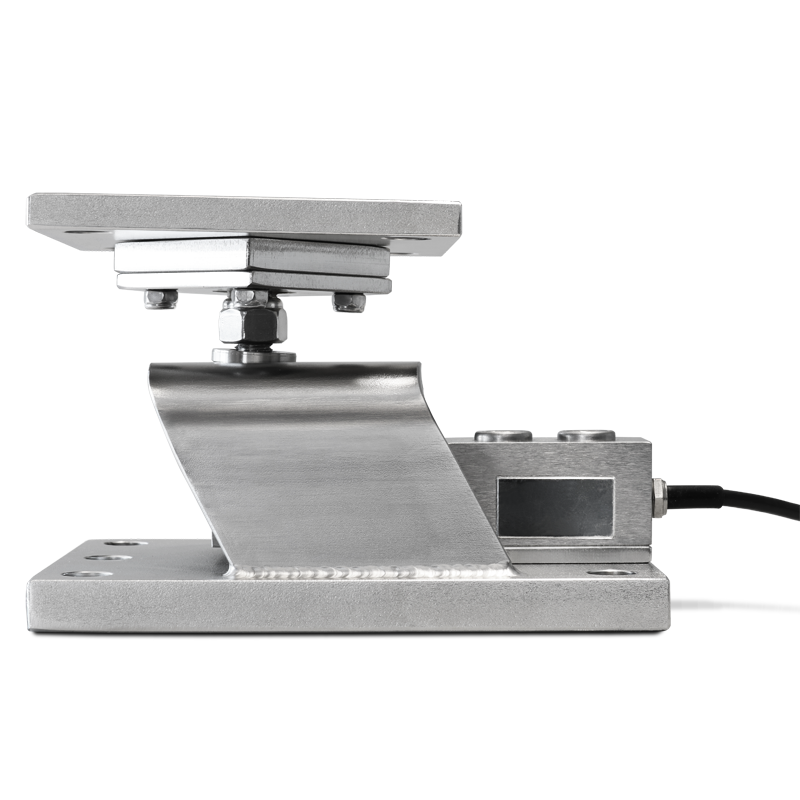

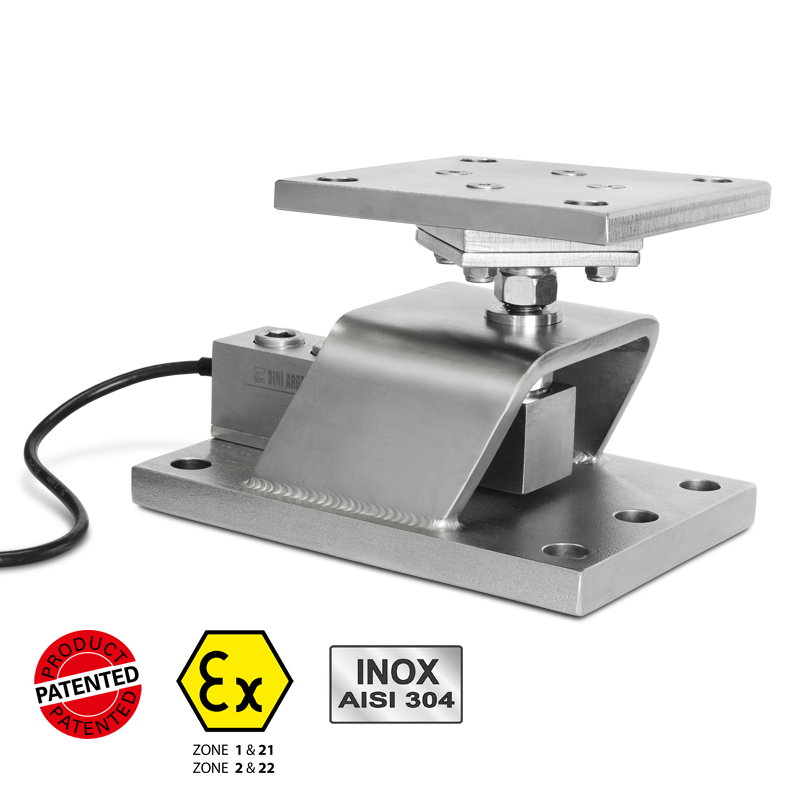

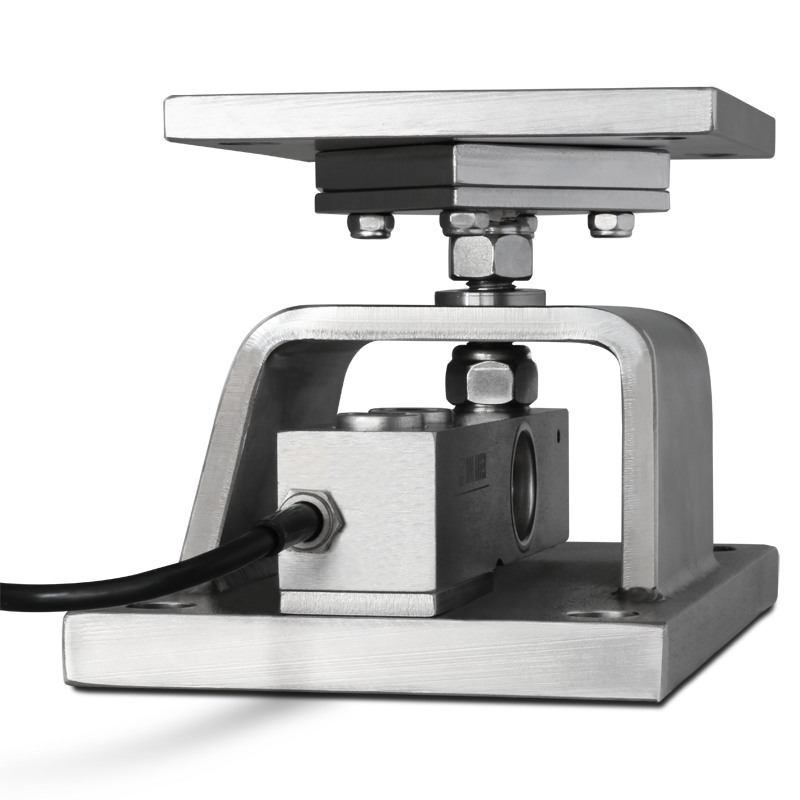

KSBX Series Stainless Steel Kit, for SBT/SBK/SBX Shear Beam Load Cells
Functions:
- Rapid installation / removal of the cell, even with full-loaded structure.
- Higher plate with system of expansion compensation, having three specific functions (lock, side and free).
- Bypass function for transport/moving of the structure and maintenance.
- Anti-overturn (within the limits indicated in the product manual).
- Limit function against accidental overload (within the limits indicated in the product manual).
- Fake cell function for weighing of liquid materials.
Features:
- Manufactured with technologies studied and designed by Dini Argeo.
- Suitable for SBT/SBK/SBX load cells, up to 2500kg (not included in the kit).
- Fully in STAINLESS steel AISI 304, with electropolished finishing, for better resistance to external agents.
- Oscillating joint, for optimal weighing precision.
- Simplified base fixing with 3 holes, or complete with 4 holes.
- The kit is designed to allow the correct functioning of the cells and obtain optimal weighing precision. However, it does not have protection function for the cell, neither for the structure. Consult the manual for more technical details.
Mounting kit for SBT/SBK/SBX shear beam load cell up to 2.500 kg. Suitable for weighing of hoppers, tanks, platforms, etc.
Advantages:
- AISI 304 STAINLESS steel construction
- Higher plate with configurable system "lock, "side" or "free"
- Mechanical joint for optimal weighing precision
- Height regulation for a correct levelling of the structure
- Anti-overturn
- Locking/bypass system for facilitated transport and maintenance
- ATEX version available, for zones 1&21, 2&22.
One Kit, Three Different Configurations
Thanks to its special higher plate, the KSBX kit can be easily configured in the installation phase, in order to contrast or facilitate the expansions of the structure to be weighed, and without being forced to choose particular accessories or versions when ordering the material.
The three specific configurations are:
- "Lock" mode: Completely locked movement, which contrast expansions and side forces for any direction
- "Side" mode: Free movement in just one direction, useful to avoid rotations and twisting
- "Free" mode: Free movement in any direction
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KSBX2 | Stainless steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg. |
Consult |
Options
Stay rod
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LNK2635 | Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can't be ATEX-certified. |
Consult |
|
|
LNKST | Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can't be ATEX-certified. |
Consult |
