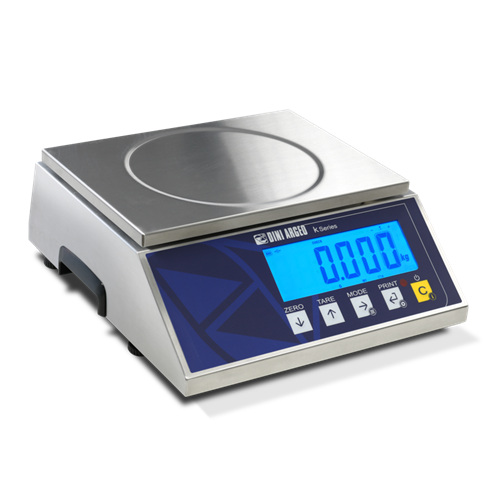

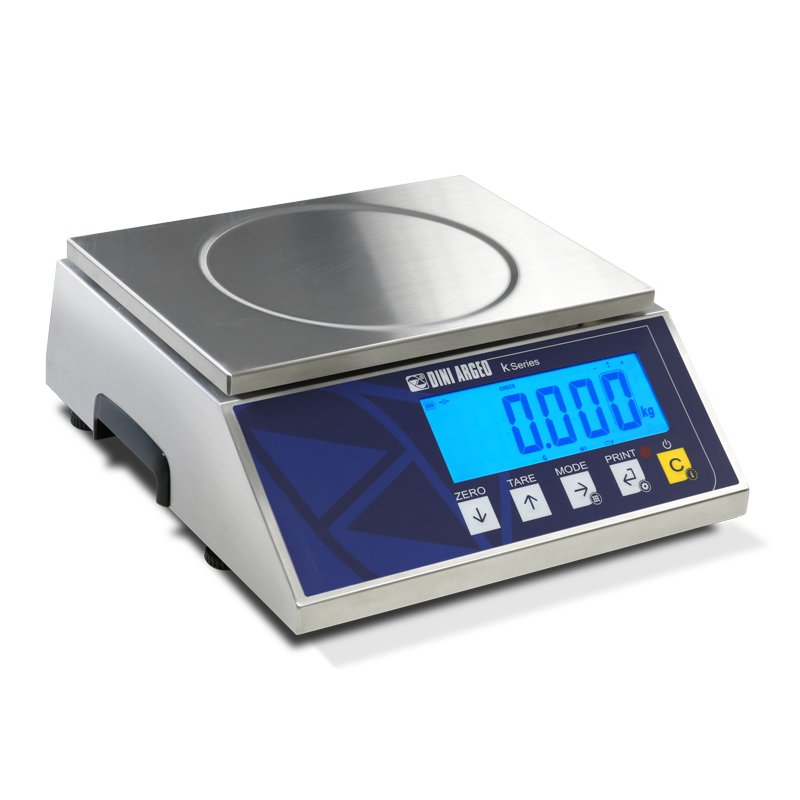

KSD Series Stainless Steel Digital Bench Scales

Stainless steel digital scales body, resistant and easy to clean.
Stainless steel load plate, inspectionable and easily cleanable. Dimensions 250x340mm.
Alluminium load cells.

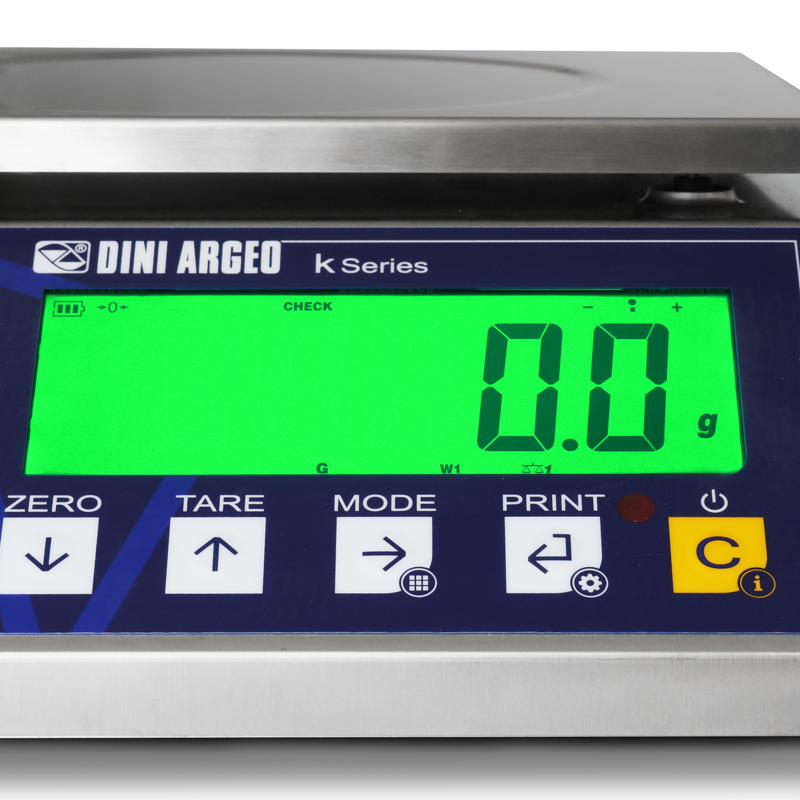

40mm LCD display, with different backlight colors.
Waterproof keyboard and multifunctional programme.
IP44 protection.
Non-slip adjustable feet.

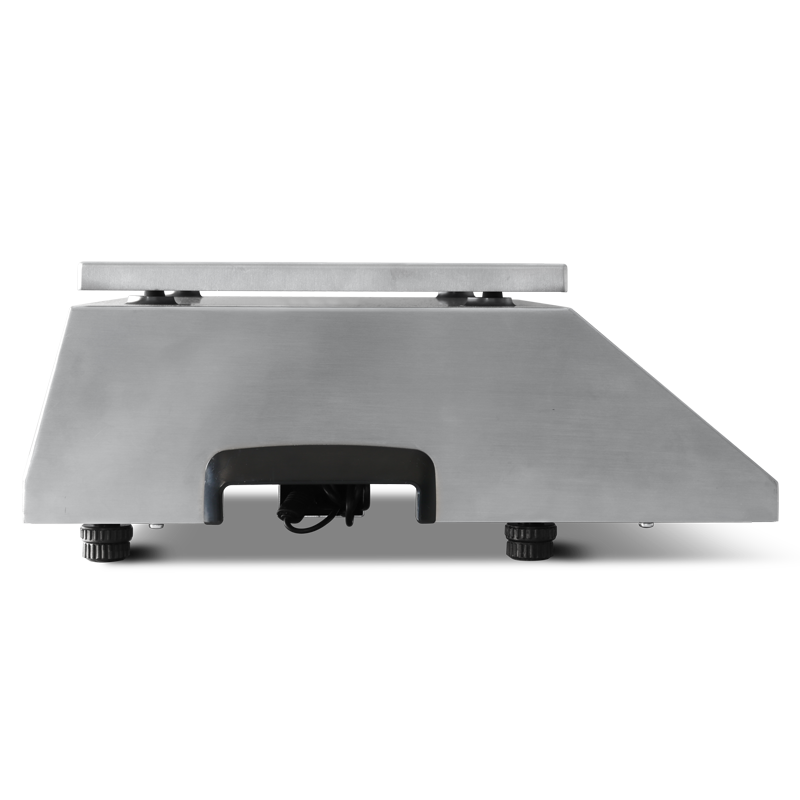

Ergonomic lateral handle.
Level positioned under the plate.
Serial port RS232 for connection to Pc or printer.
Digital scale power supply: internal rechargeable battery (operating time 40h aproximately) or external power supply/battery charger.

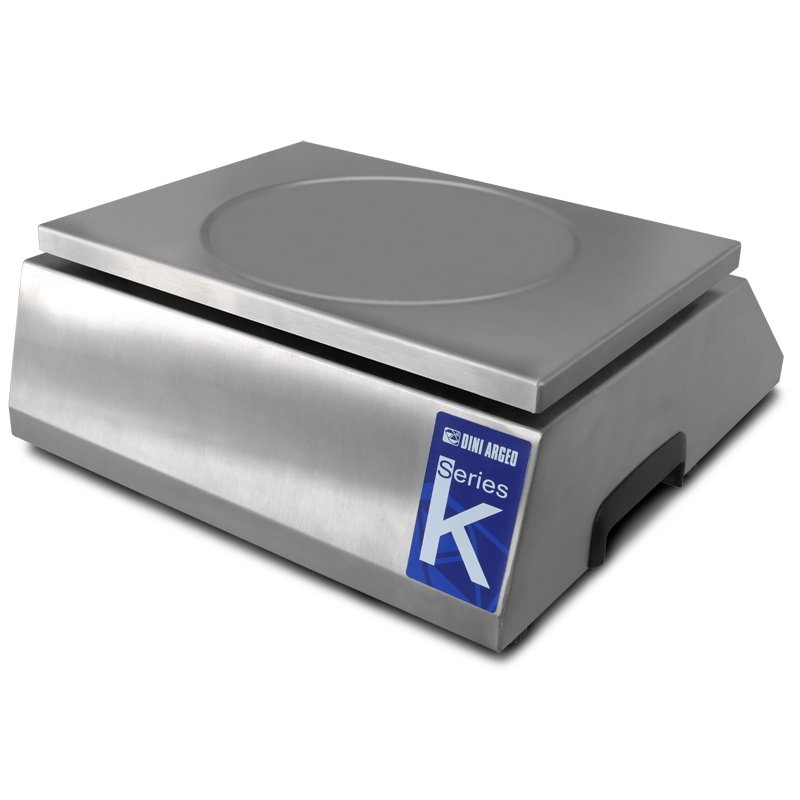

These bench digital scales are characterized by a solid and versatile stainless steel body with a large plate.
The new multifunctional programme allows the operator to choose the desired mode to carry out checks, piece-counting, percentage weighing and totalisation. The long lasting battery power supply and the lateral handles allow an easy transport of the scale directly where it is necessary.

Specifications

I/O Section:
- Bidirectional port RS232/C, programmable for connection to printer/labeler, or for printer attached to the indicator.

Bidirectional port RS232/C (RS485 optional) programmable for PC, PLC, additional remote display or radio modem. RJ connector for rapid linkage.

Selectable Functions:
Through the specific key, it is possible to choose the desired functioning mode:

- High resolution visualization x 10.
- Precision weighing by standard weight (for internal use).
- Net/Gross, or lb/kg conversion.
- Weight totalization.
- Formulation.
- +/- check
- Percentage weigh.
- Approved weight transmission to PC/PLC or printer.
- Piece counting.
- Hold.

Other Standard Functions:
Zeroing, Tare, Preset tare, Automatic tare, Auto switch-off.

Main Certifications
KSD scales certificates are:
- EU Type Examination Certificate (45501:2015)
- OIML R76

Available Versions

Code	Max (g)	d (g)	2R (g)*
KSD6C6	3/6	0.5/1	0.5/1
KSD6	3/6	1/2	1/2
KSD15	6/15	2/5	2/5
KSD30	15/30	5/10	5/10

(*) CE-M divisions are obtainable only with the relative options.

Resources / Downloads

Articles

Title	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses	Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
How to Choose a Bench Scale	Email	Bench Scales	Articles
Inventory Weighing Solutions and Programmes	Email	Weight Indicators\|Bench Scales\|Pallet Truck Scales\|Floor Scales	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
KSD6C6	Bench scale in stainless steel. Max= 3/6kg, d= 0.5/1g.	Consult	View
KSD6	Bench scale in stainless steel. Max= 3/6kg, d= 1/2g.	Consult	View
KSD15	Bench scale in stainless steel. Max= 6/15kg, d= 2/5g.	Consult	View
KSD30	Bench scale in stainless steel. Max= 15/30kg, d= 5/10g.	Consult	View

Options

International power cables

	Part #	Description	List Price	Cart / Quote
	PWCORDAUSVDE	Version with AU power cord.	Consult	View
	PWCORDUKVDE	Version with BS1363 power cord (UK plug).	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	ECEM2-C6	Multi-range 6000+6000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View

Calibration service (ACCREDIA/DAKKS) only at time of order

	Part #	Description	List Price	Cart / Quote
	CT4	ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Storing the weighs

Part #	Description	List Price	Cart / Quote
USBC-1	Built-in USB port kit for data storing on USB key. Fitted with USB key for PC.	Consult	View
USBK	Set of 5 USB keys for recording the weighs.	Consult	View
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Consult	View
ETHD	Built-in Ethernet interface. Speed from 10 to 100 Mbps, TCP, UDP, IP, ARP, ICMP, Ethernet Mac protocols.	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View

Connection cables

	Part #	Description	List Price	Cart / Quote
	RSCBUSB-1	USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector.	Consult	View
	ETHCBRJ	Ethernet cable, l=1,5m. Fitted with fairlead, for connection between indicator and PC network.	Consult	View

Digital Input/ Output

	Part #	Description	List Price	Cart / Quote
	DFIO-1	Built-in 2 IN / 6 OUT interface (requires FW 05.05.00 or higher).	Consult	View

Date&Time option

	Part #	Description	List Price	Cart / Quote
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View

Printers/Labellers

Part #	Description	List Price	Cart / Quote
LP542TE	Thermal transfer or direct thermal labelling machine Supplied with standard peel mechanism. Maximum printing size 25400 x 108 mm. Maximum roll O 127 mm and width up to 112 mm. Label roll and ribbon not included.	Consult	View
SMTPLUS-1	Thermal transfer or direct termal labeller. Peel-off kit in option.	Consult	View
RSCBLP	RS232 cable l=1,5m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
RSCBLP10M	RS232 cable l=10m for LP542xx, SMTPLUS, PR80 printers.	Consult	View
CNFSERV	Custom-made printouts for DFW and DFWL series. NET price.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
TECSUP	Technical assistance by telephone upon request.	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
