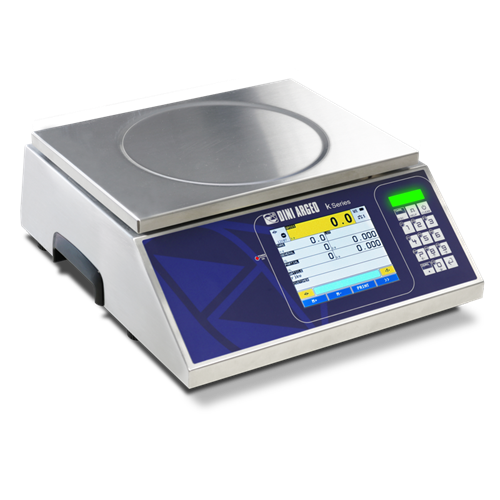

KST Series Stainless Steel Digital Scales with Touch-Screen Display

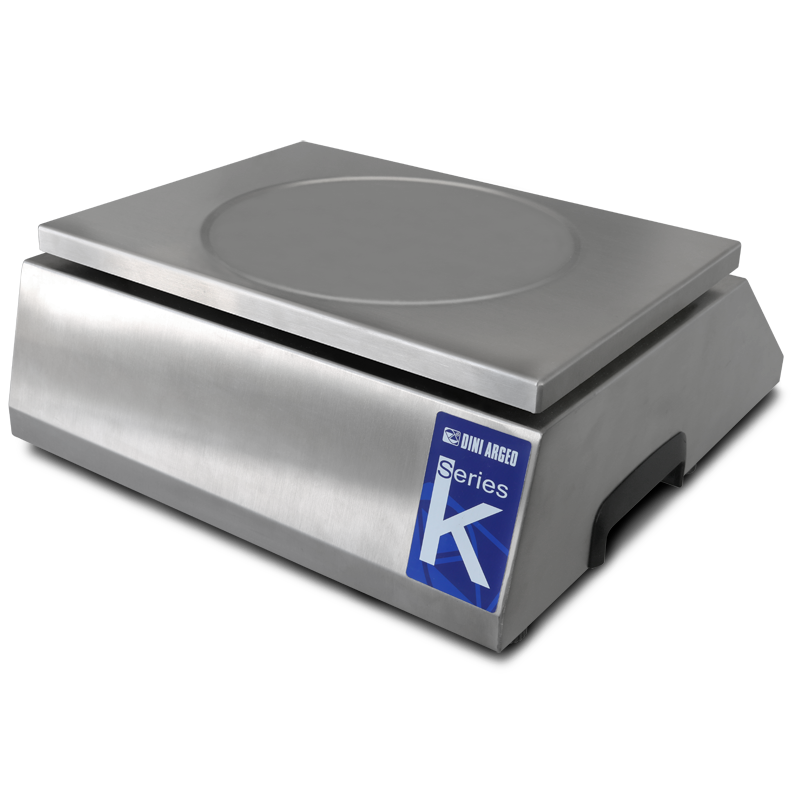

- Stainless steel digital scales body, resistant and easy to clean.
- Stainless steel load plate, inspectionable and easily cleanable. Dimensions: 250x340mm.
- OIML R60 C6 approved aluminium load cells.
- Supplied with alibi memory, integrated on the motherboard.

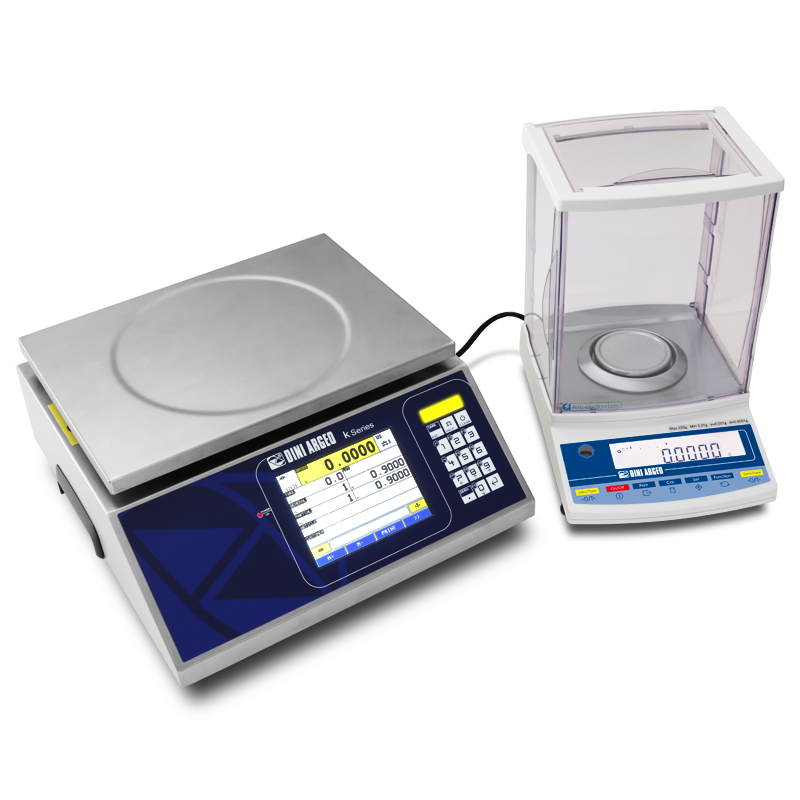

- Possibility of connection to one remote scale via serial, or of additional platforms (up to 3).
- Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
- 3-colors control light.
- Waterproof keyboard and multifunctional programme.
- IP44 protection.
- Non-slip adjustable feet.
- Ergonomic lateral handle.
- Level positioned under the plate.
- Serial port RS232 for connection to PC or printer.
- Digital scale power supply: internal rechargeable battery (operating time 40h aproximately) or external power supply/battery charger.

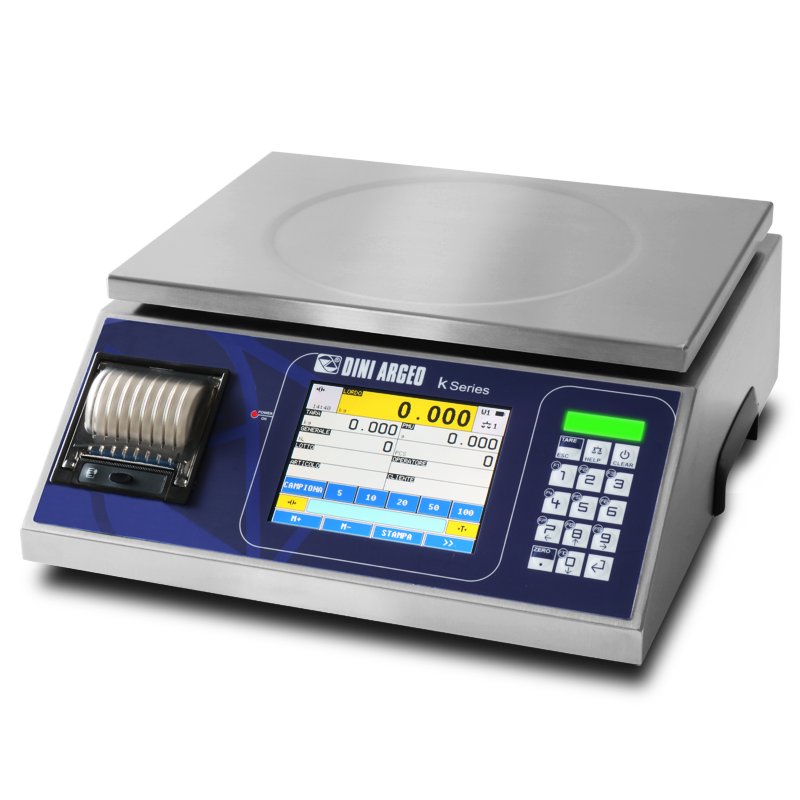

- TPRP integrated printer in KST6P and KST30P versions.

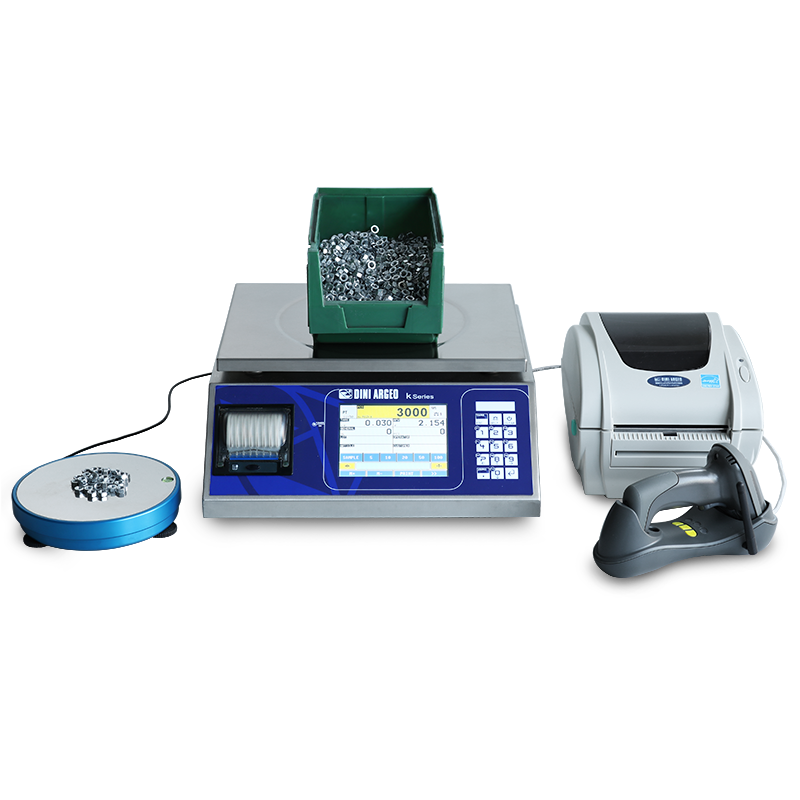

New bench digital scales with stainless steel body and touch screen color display, simple and intuitive. High weighing performances, thanks to the C6 OIML load cells (fitted as standard) and selectable application programs for piece counting, statistical control, manual dosage, labelling and totalization. The long lasting battery power supply and the lateral handles allow an easy transport of the scale directly where it is necessary.
Specifications
|
I/O Section: |
Available Application Programs: The application program of the KST digital scales series can be chosen according to the function to carry out: - AF01: Totalization and formulation (standard) - AF02: Piece counting/quantity (optional) - AF04: Statistic control of prepackaged goods (optional) - AF05: Weight / price industrial labelling (optional) - BATCH: Multicomponent manual dosage with archive of formulas (optional) |
Main Certifications: |
Available Versions
| Code | Max (kg) |
d (g) |
M 2R (g)* |
d HR (g)* |
|---|---|---|---|---|
| KST6 | 3/6 | 0,5/1 | 0,5/1 | 0,2 |
| KST12 | 6/12 | 1/2 | 1/2 | 0,5 |
| KST30 | 12/30 | 2/5 | 2/5 | 1 |
| KST6P | 3/6 | 0,5/1 | 0,5/1 | 0,2 |
| KST12P | 6/12 | 1/2 | 1/2 | 0,5 |
| KST30P | 12/30 | 2/5 | 2/5 | 1 |
(*) CE-M divisions are obtainable only with the relative options.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Inventory Weighing Solutions and Programmes |  Email |
Weight Indicators|Bench Scales|Pallet Truck Scales|Floor Scales | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
KST6 | Bench scale in stainless steel. Max= 3/6kg, d= 0,5/1g. Integrated touch screen display. |
Consult |
|
|
|
KST30 | Bench scale in stainless steel. Max= 12/30kg, d= 2/5g. Integrated touch screen display. |
Consult |
|
|
KST6P | Bench scale in stainless steel. Max= 3/6kg, d= 0,5/1g. Touch screen display and integrated thermal printer. |
Consult |
|
|
|
KST30P | Bench scale in stainless steel. Max= 12/30kg, d= 2/5g. Touch screen display and integrated thermal printer. |
Consult |
|
| KST12 | Balance de table en acier INOX. Max= 6/12kg, d= 1/2g. Afficheur tactile integré. |
Consult |
||
| KST12P | Balance de table en acier INOX. Max= 6/12kg, d= 1/2g. Afficheur tactile integré. |
Consult |
Options
HR calibration (high resolution) with Dini Argeo indicator (only when ordering)
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| THR | High Resolution (HR) model. |
Consult |
International power cables
Available firmwares
Approval for sale to third parties
Calibration service (ACCREDIA/DAKKS) only at time of order
Software to fill in the databases
Software for display customisation
Storing the weighs
Display customisation
Communication Interfaces
Digital Input / Output
Connection cables
Printers/Labellers
PC keyboard / Scanner / Connection cable
Other options
