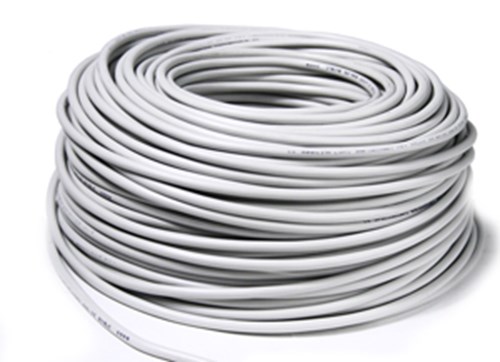

LCCB Cable for Connection to Load Cells
LCCB Cable:
- Type: 6 x 0,25 mm², 5,5mm diameter
- Built-in shielding for protection from disturbances
|
Dini Argeo standard of colour codes
|
|
| Colour |
Function
|
| YELLOW |
OUTPUT -
|
| PINK |
OUTPUT +
|
| GREEN |
SENSE +
|
| WHITE |
SENSE -
|
| BROWN |
INPUT +
|
| GREY |
INPUT -
|
LCCBA Cable:
- Armoured cable, transparent PVC outer sheath.
- Type: 6 x 0,25 mm², 8 mm diameter.
- Built-in shielding for protection from disturbances.
|
Dini Argeo standard of colour codes
|
|
| Colour |
Function
|
| YELLOW |
OUTPUT -
|
| PINK |
OUTPUT +
|
| GREEN |
SENSE +
|
| WHITE |
SENSE -
|
| BROWN |
INPUT +
|
| GREY |
INPUT -
|

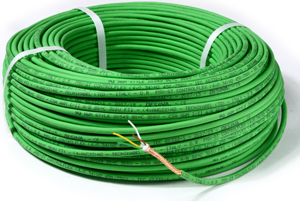

LCCBM Cable:
- Indicated for applications with moving cables.
- Type: 4 x 0,34 mm².
- Built-in shielding for protection from disturbances.
|
Dini Argeo standard of colour codes
|
|
| Colour |
Function
|
| YELLOW |
OUTPUT -
|
| GREEN |
OUTPUT +
|
| WHITE |
INPUT -
|
| BROWN |
INPUT +
|
Shielded cable for connection of weight indicators to load cells for junction boxes.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| How to Choose the Best Load Cell for Your Needs | Email |
All Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LCCB | Shielded cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m |
Consult |
|
|
LCCBA | Armoured cable 6x0.25 mmý (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 øC. Minimum bending radius >/= 5 x O.D. _/m |
Consult |
|
|
LCCBM | Shielded 4x0,34 mmý cable for moving applications. _/m |
Consult |
|
|
LCCB5C | LCCBC cable + 5m extension cable. |
Consult |
|
|
|
LCCB10C | LCCBC cable + 10m extension cable. |
Consult |
|
|
PRCB | Protection sheathing for shielded cable. _/meter internal O 15mm. |
Consult |
Related Products

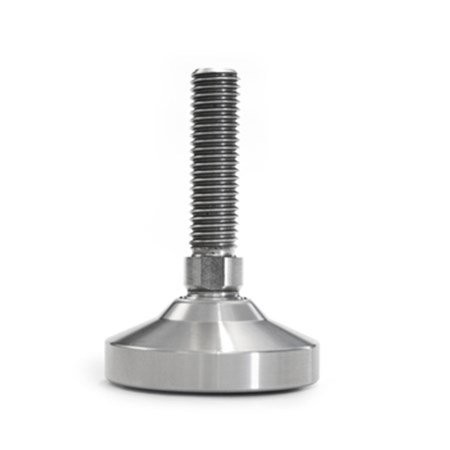

SBFI Stainless Steel Feet for SBxx Load Cells up to 2500 kg
Stainless steel articulated feet designed in order to obtain the best weighing performances, particularly suitable for creating scales with 4 load cells. Extremely compact and easy to install, the feet minimize the height of the platform and ensure a perfect decoupling of the lateral forces during the weighing operation.

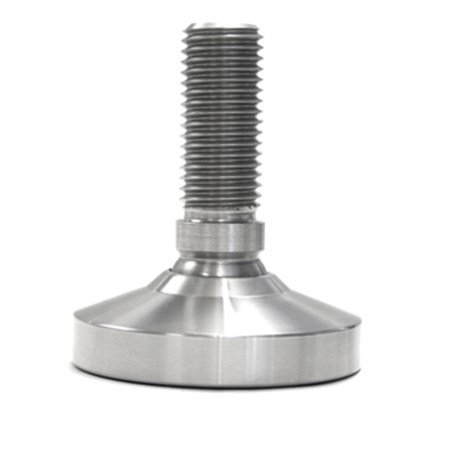

SBFI3K Stainless Steel Feet for SBxx Load Cells from 3000 to 5000 kg
Stainless steel articulated feet designed in order to obtain the best weighing performances, particularly suitable for creating scales with 4 load cells. Extremely compact and easy to install, the feet minimize the height of the platform and ensure a perfect decoupling of the lateral forces during the weighing operation.

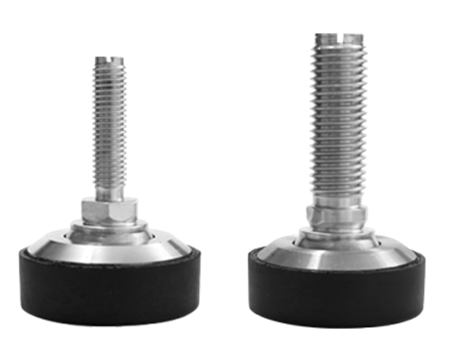

KSBFI Stainless Steel Feet for SBX and SBK Load Cells
Stainless steel articulated feet designed in order to obtain the best weighing performances, particularly suitable for creating scales with 4 load cells. Extremely compact and easy to install, the feet minimize the height of the platform and ensure a perfect decoupling of the lateral forces during the weighing operation.

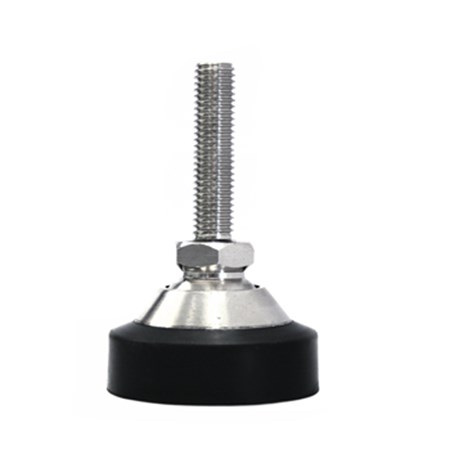

SBFA Nickel-Plated Steel Feet for Load Cells
Nickel-plated steel articulated feet with non-slip rubber. Suitable for creating 4-cell platforms.

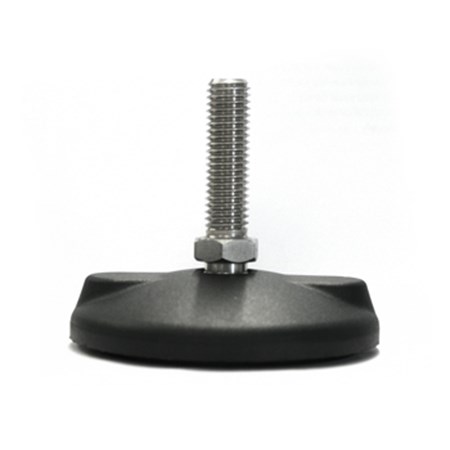

SBFP ABS Feet for Load Cells
ABS articulated feet with steel thread, for SBxx load cells. Extremely reduced height, particularly suitable for creating 4-cell platforms.

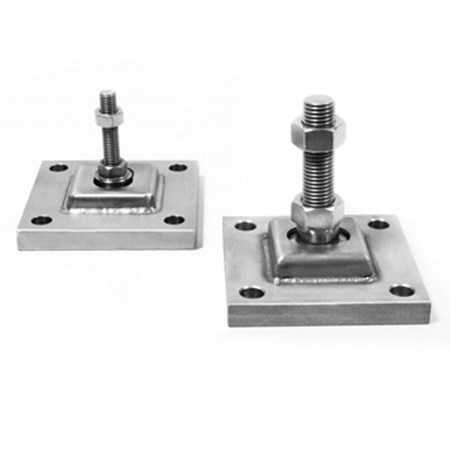

KSBH Articulated Plates for Fixing of Shear Beam Load Cell
Articulated plates for shear beam load cells, SBK or SBX models. Useful for fixing the cells to the floor or to rigid structures, and for the creation of weighing systems with several support points.

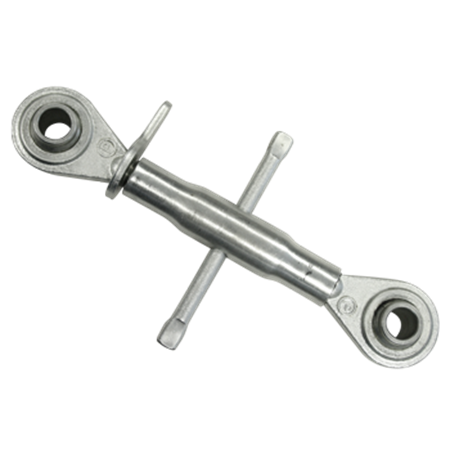

LNK2635 Galvanized Stay Rod with Ball-and-Socket Joints
Galvanized stay rod, useful to limit the movements of the weighed structure without affecting the weighing results. Fitted with two ball-and-socket joints (overall length adjustable from 260 to 350mm).

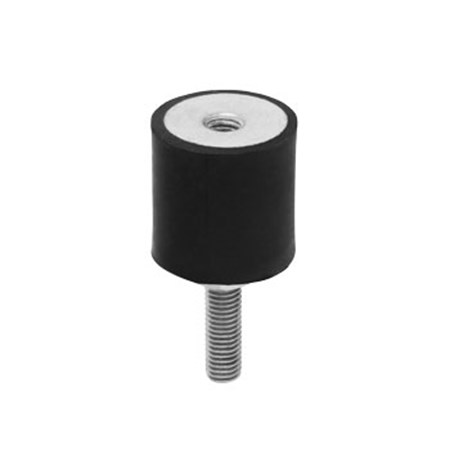

AVM8/12 Anti-Vibration Rubber Silent Block
Anti-vibration elastic joint M8/M12, useful to reduce vibrations and improved weighing precision.
RBJ Series Mounting Kit in Galvanized Steel for STU/STG/STFU Tension Load Cells
Articulated joints for the correct installation of the tension load cells.
CLV U Clevis for RBJ Rod-End Ball Joints
Steel clevis for the easy installation of the tension load cells. In combination with the RBJ rod-end ball joints, they allow you the correct alignment of the suspended load.

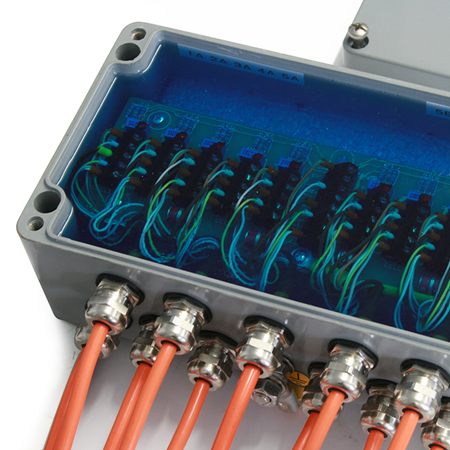

IP68 Anti Condensation Gel
Anti condensation gel, specifically suitable for electrical circuits and ideal for junction boxes.

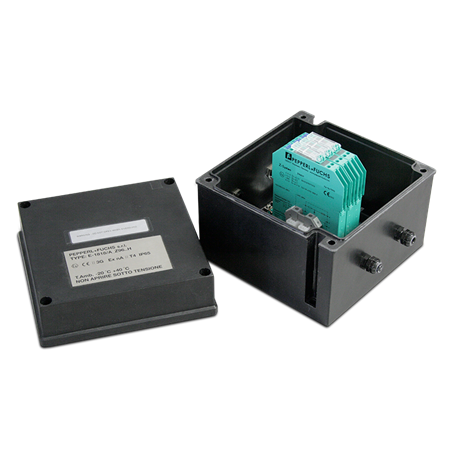

KMB4 Box with Passive Safety Zener Barriers, for ATEX Environments
