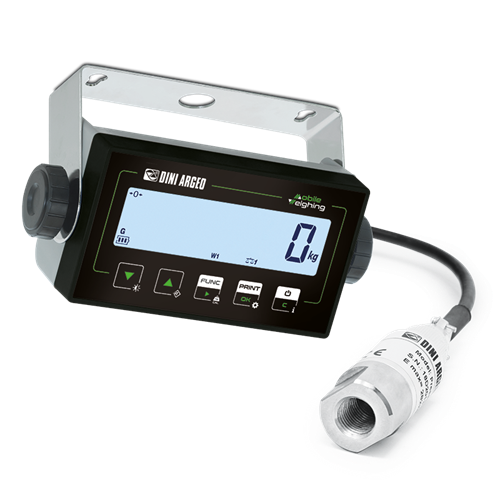

LTP Hydraulic Weighing Kit for Forklifts

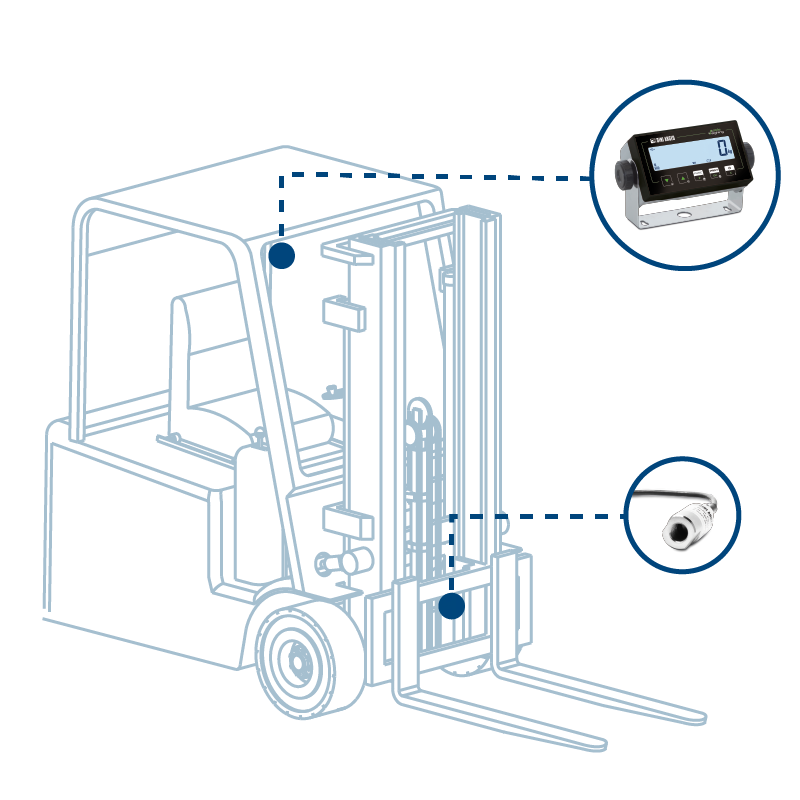

Weighing system to be applied to the hydraulic system, easy to install on the forklift through a simple tee connector.
Ideal for weight checks, control of goods entering and leaving the warehouse, prevention of overloading of the forklift and racking.
For forklifts
WEIGHING FEATURES
- Maximum lifting capacity: up to 4,000 PSI / 280 BAR
- Resolution: from 5 kg
- Accuracy: ±0.5% to ±5% of capacity, min. ±20 kg*
*This value may be affected by several factors, consult your manual for more information.
WHY CHOOSE LTP DINI ARGEO
- Easy to install, connects to the hydraulic system via a tee fitting.
- It does not reduce the load capacity of the forklift and does not affect the original manufacturer's certification.
- It is indestructible because it is not subject to shock.
- Direct power from the truck's battery makes the system always ready to weigh when you need it.
- The weight indicator is compact and comes with a bracket for easy in-cab installation.
- Thanks to the LTP Tool PC program, which can be downloaded free of charge from the download area, it is possible to optimize the weighing performance of the system.
- The optional printer allows you to trace the weighs made.
LTP Hydraulic Weighing Kit for Forklifts Specification
|

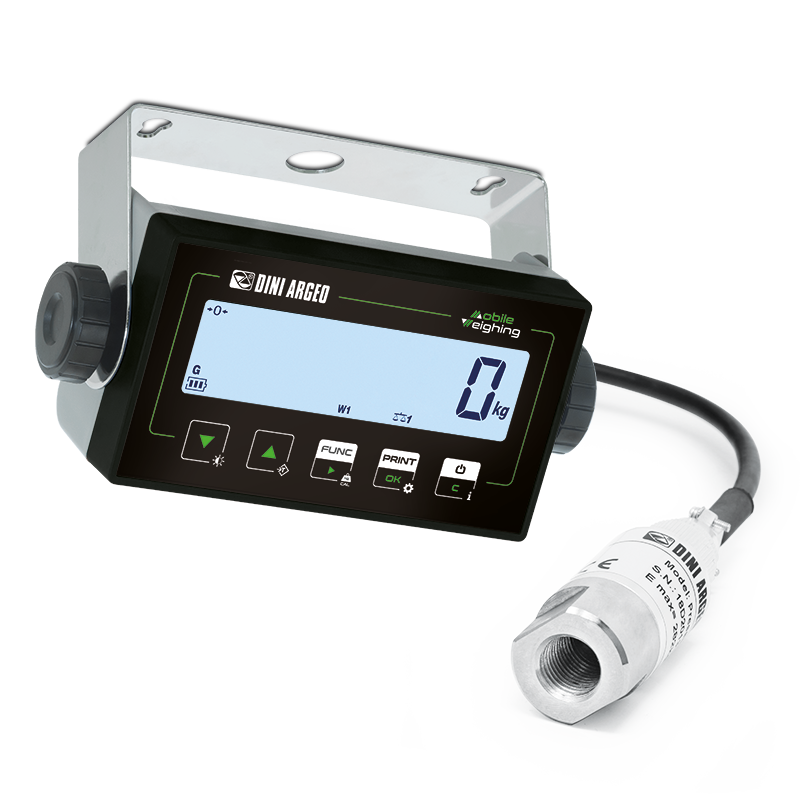

COMPACT WEIGHT INDICATOR
|
HYDRAULIC PRESSURE SENSOR
|
POWER SUPPLY UNIT OF CHOICE Fixing Bracket: |

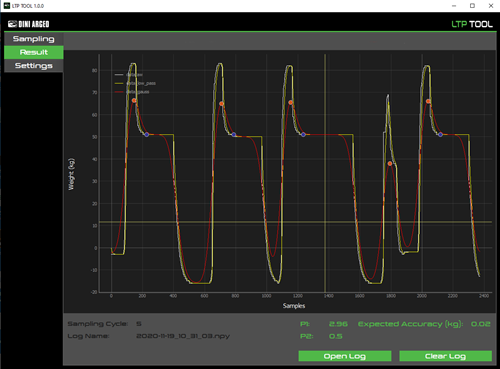

LTP Tool Software
 |
Configuration of the LTP kit is easily carried out through the programming menu of the weight indicator. In addition, when additional optimization or system analysis is required, you can download LTP TOOL, the free PC program that improves the response speed and accuracy of the weighing system according to the conditions and characteristics of the forklift. |
MINIMUM REQUIREMENTS*
Operating System: Windows 10
Processor: 1.6 Ghz
Ram: 4 Gb
Free hard disk space: 250 Mb
*Compatible with LTP-1 version only
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| Smart Solution for Weighing in the Warehouse | Email |
Hydraulic Weighing | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
LTP-1 | Hydraulic weighing kit for forklifts. The kit includes: Pressure sensor up to 4.000 PSI / 280 BAR, adjustable fixing bracket and weight indicator powered from the forklift (to be combined with 5V power supply unit). |
Consult |
Options

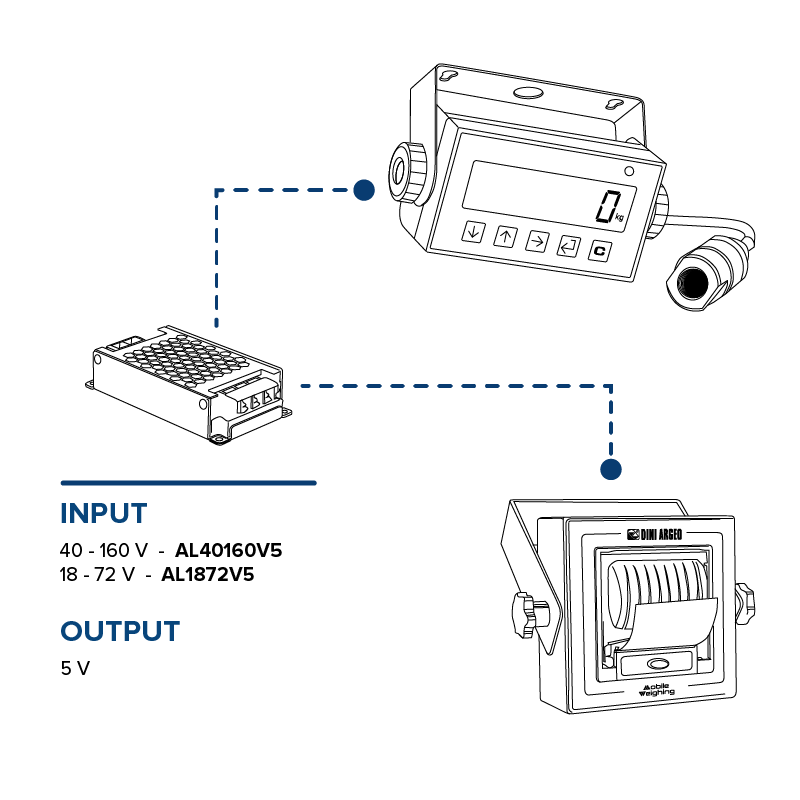

Power supply
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
AL40160V5 | Power adapter for the indicator in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W). |
Consult |
|
|
|
AL1872V5 | Power adapter for the indicator in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W). |
Consult |
|
|
|
AL918V5 | Power adapter for the indicator in cabin (mounting not included). From 9 to 18 Vdc input (directly from the lift truck), 5 Vdc 6A output for the indicator (max 30W). |
Consult |
