LTS Double Plate Weighing System for Forklifts

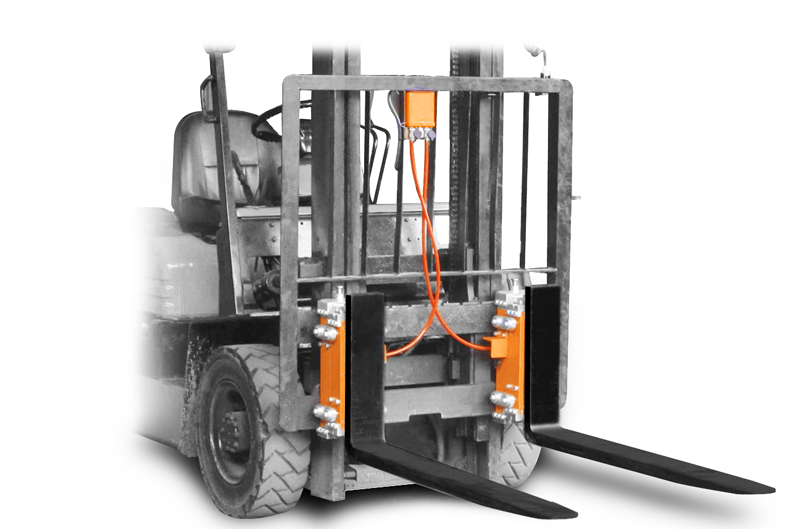

Double plate weighing system for forklifts with DIN15173 - FEM class III standard fixing. The whole is made of two weighing plates and a junction box. Sturdy, handy and simple to install, this system allows to weigh during load and unload operations, while using the forklift. For internal use.

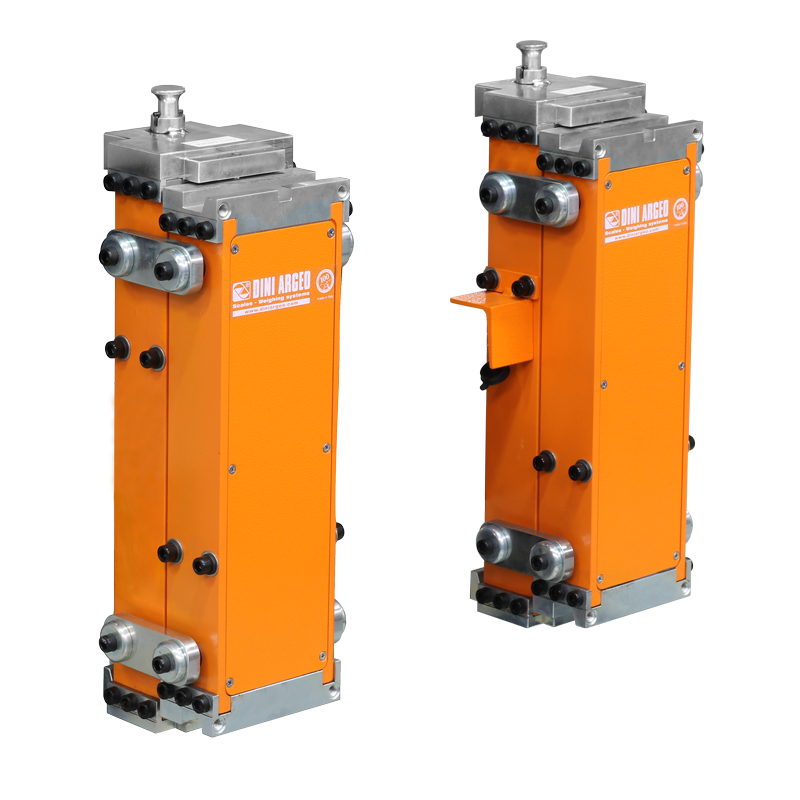

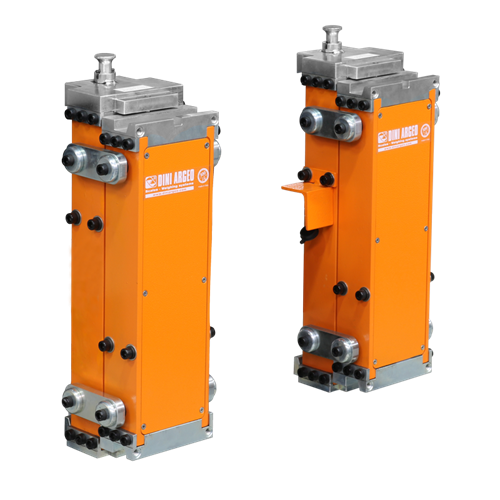

WEIGHING PLATES: MAIN FEATURES

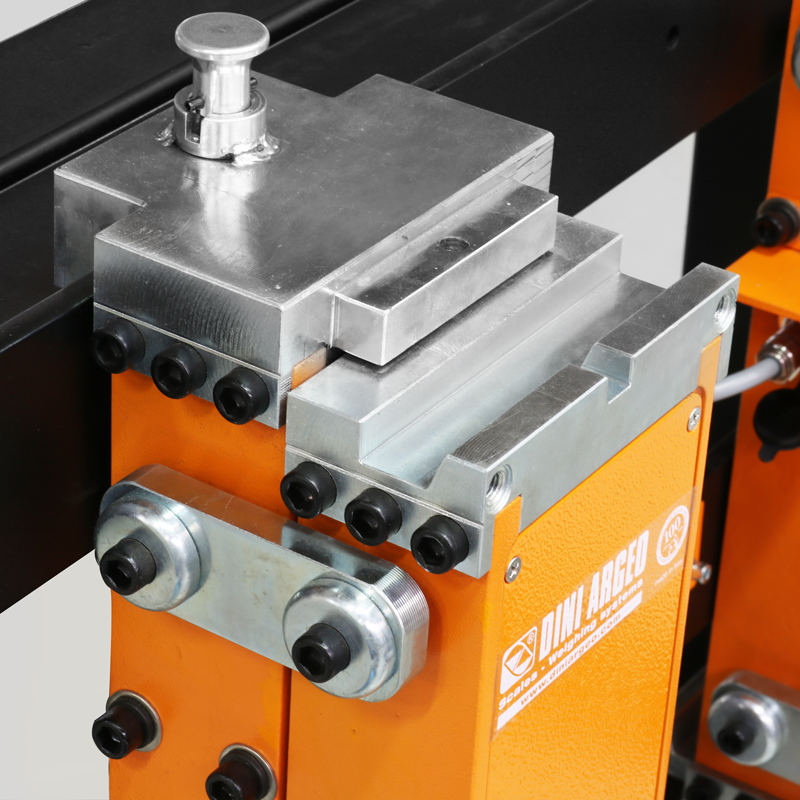

Weighing plates with extra thick painted steel bearing structure
Load cells protection against accidental strikes
Extremely compact system, in order not to reduce the operator's visibility
S type load cells: sensitivity 2 mV/V, maximum power supply 15 VDC
Single plate dimensions: 585 x 265 mm, only 152 mm depth
Total weight of the 2 plates: 100 kg approximately.
Single plate packaging dimensions: 270 x 280 x 640 mm
Single plate packaging weight: 10 kg approximately
Maximum forks lenght: 1,30 m

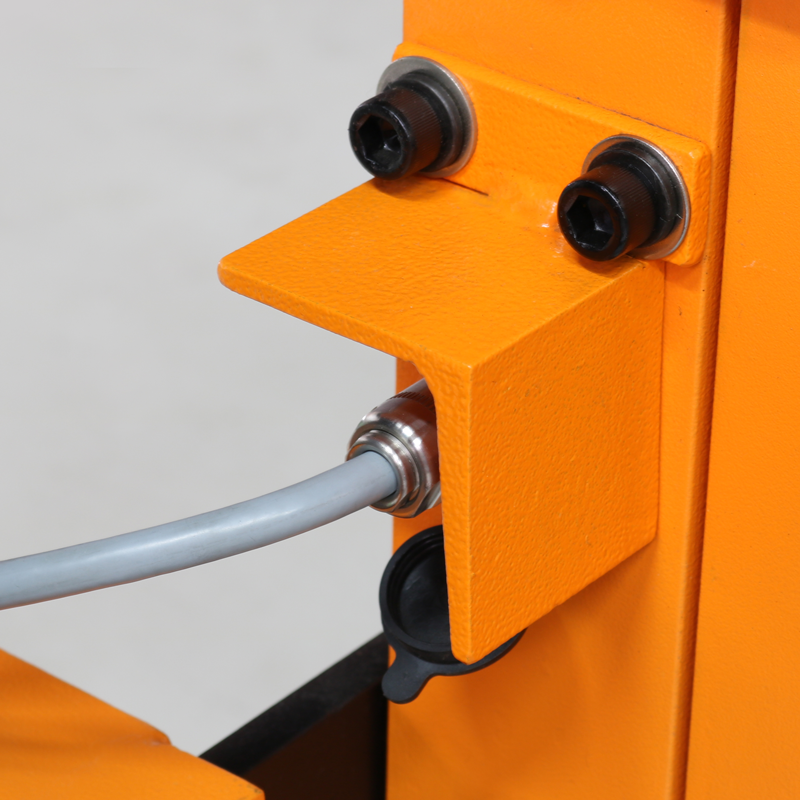

Hermetic junction box

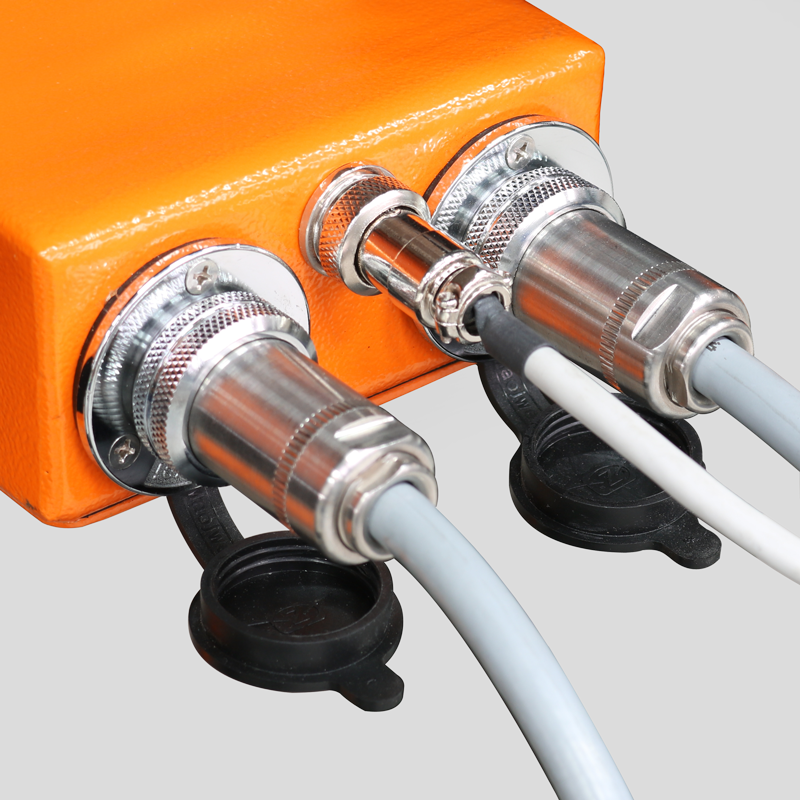

Standard cable fitted with connectors for rapid linkage
Maximum opening of the plates: 500mm approximately
Precision: +/- 0.1% of the capacity
Maximum horizontal declivity (tilt): +/- 2° with the same precision features
Maximum overload allowed: 300%
Integrated protection system against overloads and accidental strikes
Wide range of connectable indicators and wireless solutions

Request More Information

Available versions

Code	Plate	Max (kg)	d (kg)
LTS40	FEM III	2500/4000	2/5

Resources/Downloads

Application Stories / Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|ATEX Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing Kits\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Platforms, Indicators and Accessories\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Mounting Kits\|ATEX Load Cells\|Hygienic Load Cells	Articles

Parts

Available Versions

	Part #	Description	List Price	Cart/Quote
	LTS40	Weighing kit for FEM III fork lift, Max= 2500/4000kg, d= 2/5kg.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart/Quote

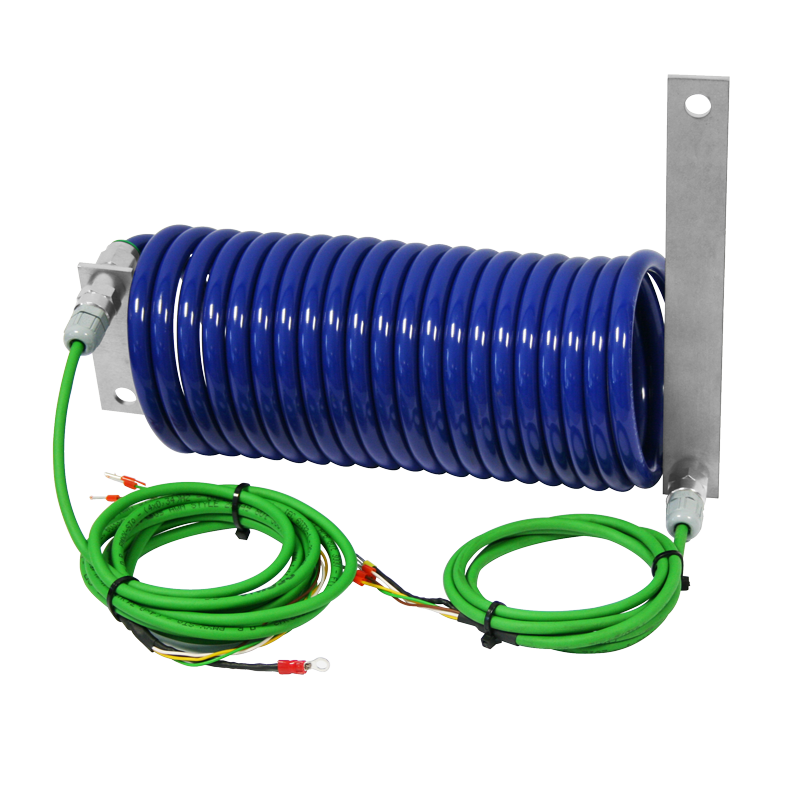

	DINICALLT	Calibration for LTW/LTS scales. NET PRICE. NOTE: available only in combination with connection cable (cod. LTWKAB).	Consult	View

LTS Double Plate Weighing System for Forklifts

Available versions

Resources/Downloads

Application Stories / Articles

Parts

Available Versions

Options

Calibration service with weight indicator

Weight Indicator with Rechargeable Battery

Advanced Weight Indicators (require of direct power supply from the cart)

Columns, Supports Brackets, Visors

Power Supply

Connection Cables

Communication Interfaces

Storing Weighments

Printers / Labelers

Weight Repeaters

Calibration Service (ACCREDIA/DAKKS) Only at Time of Order

Other Options

Part #	Description	List Price	Cart/Quote
DFWLB-3	IP68 weight indicator with built-in rechargeable battery. ABS case, 5-key keypad, backlit LCD display.	Consult	View
DFWPXP	5-key indicator with attached printer and real time clock. ABS case, backlit LCD display.	Consult	View
DFWKPXP	17-key indicator with attached printer and real time clock. ABS case, backlit LCD display.	Consult	View

Part #	Description	List Price	Cart/Quote
AL918V12	Power adapter for the indicator in cabin (mounting not included). From 9 to 18 Vdc input (directly from the lift truck), 12 Vdc 2,5A output for the indicator (max 30W).	Consult	View
AL1872V12	Power adapter for the indicator in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 12 Vdc 2,5A output for the indicator (max 30W).	Consult	View
AL40160V12	Power adapter for the indicator in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 12 Vdc 2,5A output for the indicator (max 30W).	Consult	View

Part #	Description	List Price	Cart/Quote
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels. If applicable, it requires FW 05.00.02 or higher. Not compatible with weight repeaters.	Consult	View
DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View
WIFITD-3	Built-in WI-FI interface. For wireless connection (through access point) to the company computer system.	Consult	View

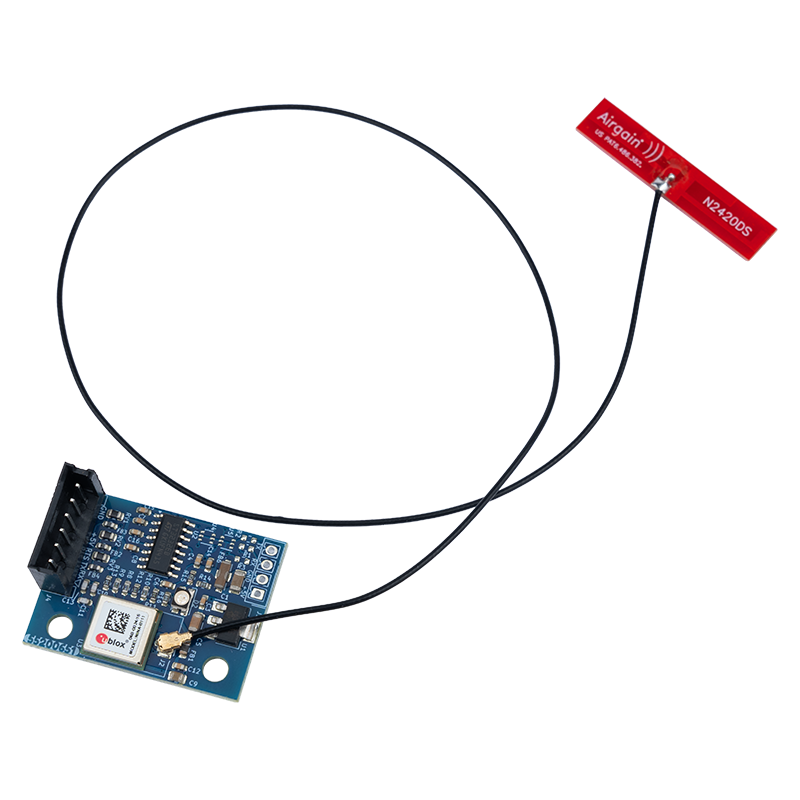

BLTH-4	Internal 5.0 Bluetooth interface, for wireless connections from the scale to tablets, smartphones and laptop PCs. NOTE: this interface is not compatible with BLTH-3 modules and cannot be used in conjunction with SCBTHP and SCBTH.	Consult	View

Part #	Description	List Price	Cart/Quote
USBC-1	Built-in USB port kit for data storing on USB key. Fitted with USB key for PC.	Consult	View
USBEGT	Built-in USB port to store data on a USB driver. To be combined with touchscreen weight indicators. It does not occupy serial ports. Fitted with USB key for PC. TAKE NOTE: this interface cannot be ordered separately and is to be combined with a weight indicator as part of the order.	Consult	View
USBK	Set of 5 USB keys for recording the weighs.	Consult	View
SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

	Part #	Description	List Price	Cart/Quote
	DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View
	DGT60R-1	Weight repeater with 60 mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure, and configurable protocol.	Consult	View

	Part #	Description	List Price	Cart/Quote
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Part #	Description	List Price	Cart/Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET €.	Consult	View
