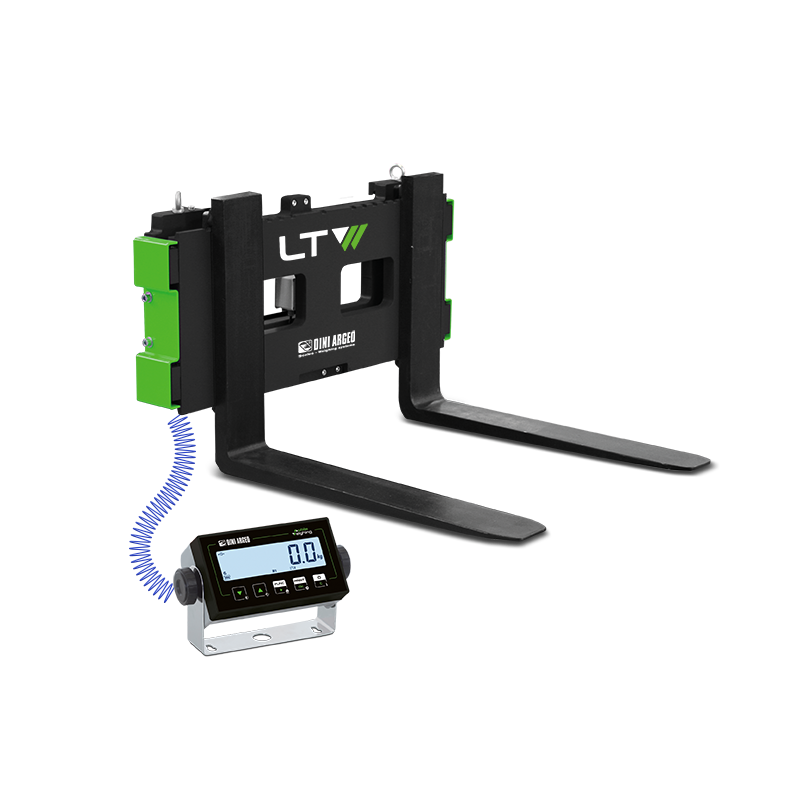

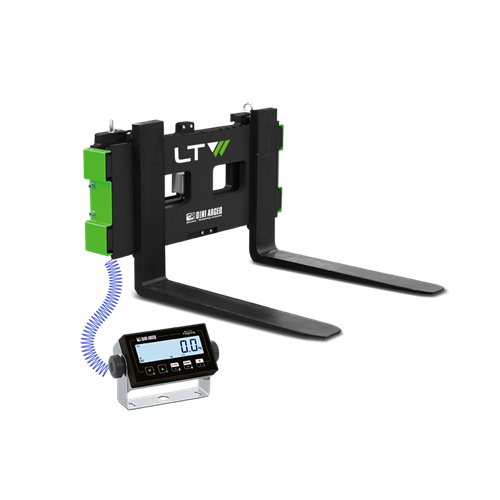

LTW Compact Fork Holder Plate with Integrated Weighing System

Weighing plate for forklift, with fixing rail DIN15173 - FEM class II, to transform a normal forklift into a mobile scale. Fitted with COMPACT weight indicator in the cabin, versatile and easy to use. Available also in approved version for legal-for-trade use.

WEIGHING FEATURES

Max. permissible overload: over 300% of the maximum capacity, with overload protection nuts in case of hinge breaking.
Accuracy:
- internal use: +/- 0.05% of the capacity
- approved: according to CE certification (Directive 2014/31/EU)
Max. horizontal inclination (tilting): +/- 2° with the same precision characteristics

Request More Information

WHY CHOOSE LTW COMPACT DINI ARGEO

The weighing plate is the most robust solution for weighing and handling loads in the warehouse.
Strong and sturdy, it is equipped with an integrated protection system against overloads and accidental impacts.
The standard COMPACT indicator, easy to install in the cabin, is useful to read the weighing data.
Suitable for standard FEM2A and FEM2B forks.
Built with 2 Dini Argeo load cells, in stainless steel, with IP68 protection.
Available in approved version for legal-for-trade use.
Available in wired or Bluetooth version, completely wireless.

LTW Compact Fork Holder Plate with Integrated Weighing Specifications

TECHNICAL FEATURES

Plate dimensions 910 x 407 x 110 mm
Weight 184 kg
Max. fork length: 1100 mm
Max. center of gravity displacement: 55 mm
Plate supporting structure made of thick steel
Hermetic junction box
Extensible cable as standard (length 5 m)

COMPACT WEIGHT INDICATOR FEATURES

Weight indicator in ABS with backlit LCD 25mm display with 6 high contrast digits and icons for showing the active functions.
Fitted with fixing bracket for mounting in the cabin.
Functional waterproof keypad with 5 keys.
Easy to clean ABS IP68 enclosure, resistant to harsh and corrosive environments.
Visual and audible overload indication.
Auto-off (energy saving): 5 minutes adjustable or deactivable.
Power supply directly from the forklift (optional power supply available)
Optional printer complete with fixing bracket for mounting in the cabin

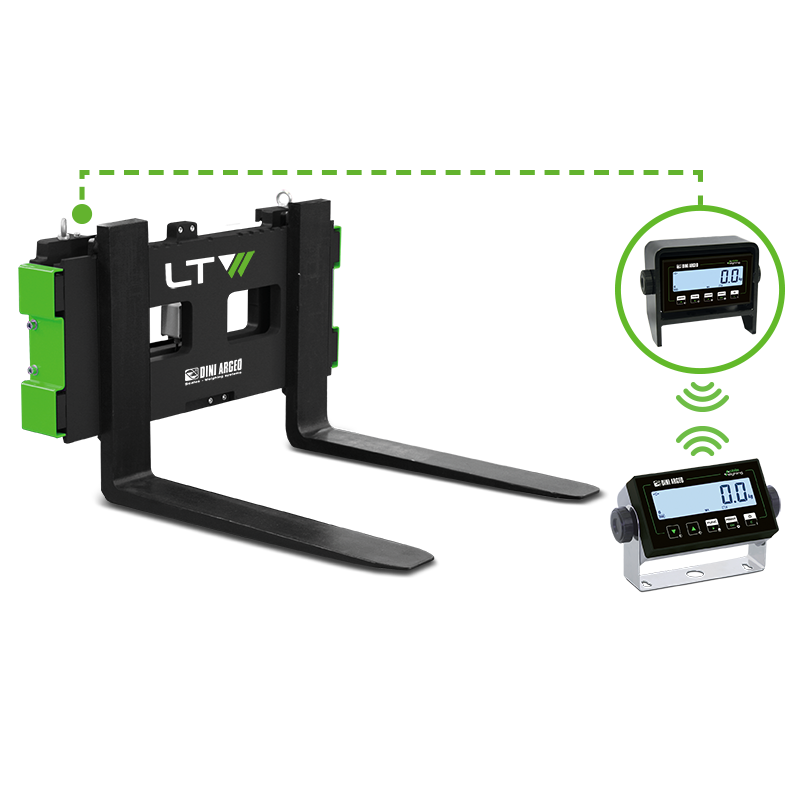

DISPLAY ON THE WEIGHING PLATE (Bluetooth version)

Backlit 25mm LCD display with 6 high-contrast digits and icons for indicating active functions.
ABS IP68 case, easy to clean and resistant in harsh and corrosive environments.
Communication with the weight indicator in the cabin through Bluetooth.
Power supply through internal rechargeable battery, with 60h working autonomy and external battery charger provided as standard.

Available Versions

Code	Max (kg)	d (kg)	M (kg*)
LTWC15	600 / 1500	0,2 / 0,5	1 / 2
LTWC25	1500 / 2500	0,5 / 1	2 / 5
LTWC15BTH	600 / 1500	0,2 / 0,5	1 / 2
LTWC25BTH	1500 / 2500	0,5 / 1	2 / 5

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
LTWC15	Forkholder plate Max=600/1500kg, d=0,2/0,5kg for forklifts, with weight indicator in the cabin and cable connection. Steel structure. FEM II.	Consult	View
LTWC15BTH	Forkholder plate Max=600/1500kg, d=0,2/0,5kg for forklifts, with weight indicator in the cabin and Bluetooth connection. Steel structure. FEM II.	Consult	View
LTWC25	Forkholder plate Max=1500/2500kg, d=0,5/1kg for forklifts, with weight indicator in the cabin and cable connection. Steel structure. FEM II.	Consult	View
LTWC25BTH	Forkholder plate Max=1500/2500kg, d=0,5/1kg for forklift, with weight indicator in the cabin and Bluetooth connection. Steel structure. FEM II.	Consult	View

Options

Calibration service (ACCREDIA/DAKKS) only at time of order

	Part #	Description	List Price	Cart / Quote
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Approval for sale to third parties

	Part #	Description	List Price	Cart / Quote
	ECEMLTW	CE-M approval for LTW plate for lift truck.	Consult	View
	ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Consult	View

Storing the weighs

	Part #	Description	List Price	Cart / Quote
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Communication interfaces (wired version only)

Part #	Description	List Price	Cart / Quote
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View

Optional fixing bracket for indicator

	Part #	Description	List Price	Cart / Quote
	STFLC	360ø rotating joint bracket for fixing the weight indicator in cabin, for LTW Compact, TWIN FORKS, LTP and ELP.	Consult	View

Printers/labellers

	Part #	Description	List Price	Cart / Quote
	OBTPRLT-1	Thermal printer powered from the indicator. Thermal paper roll included as standard.	Consult	View

Expendable materials

Part #	Description	List Price	Cart / Quote
RPT57C	50 thermal paper rolls 30m long, 57mm wide. 12mm hole. 51mm external diameter.	Consult	View
RPT57AC	50 adhesive thermal paper rolls 15m long, 57mm wide. 18mm hole. 50mm external diameter.	Consult	View
LNLESS	72 rolls of Linerless thermal sticker paper 20m long, 56,5mm wide. 48,5mm outer diameter. 12mm diameter central hole.	Consult	View

Power supply

Part #	Description	List Price	Cart / Quote
AL40160V5	Power adapter for the indicator in cabin (mounting not included). From 40 to 160 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W).	Consult	View
AL1872V5	Power adapter for the indicator in cabin (mounting not included). From 18 to 72 Vdc input (directly from the lift truck), 5Vdc 6A output for the indicator (max 30W).	Consult	View
AL918V5	Power adapter for the indicator in cabin (mounting not included). From 9 to 18 Vdc input (directly from the lift truck), 5 Vdc 6A output for the indicator (max 30W).	Consult	View

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
