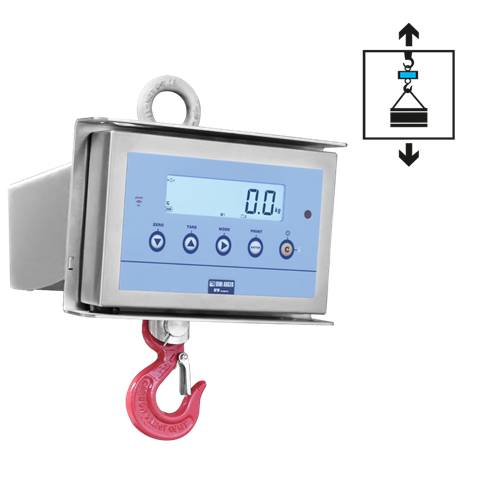

MCW Professional Series Single Security Crane Scales
- Single security system, for the lifting and the weighing of the load
- In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU
- Large backlit 25mm LCD display easily visible in all lighting conditions and also with low temperatures
- Fitted with standard approved upper galvanized shackle and standard approved bottom hook. GR3 and GOC1 for MCWR2 (150/300/600/1500).
- Reduced distance between the upper shackle and bottom hook
- Precision: +/- 0.05% F.S
- Waterproof keyboard with 5 keys: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF
- MODE-key configurable as:
- PEAK (maximum value read), HOLD (blocking the weight viewed), Weighs accumulation, lb/kg/N conversion
- IP67 stainless steel case
- Fitted with remote control for up to a 8 m distance. The remote control may be configured by the customer as automatic tare only, or as a remote keypad.
- Rechargeable sealed battery with a 40-hour life battery. On request, it is available a second battery for 24/7 use.

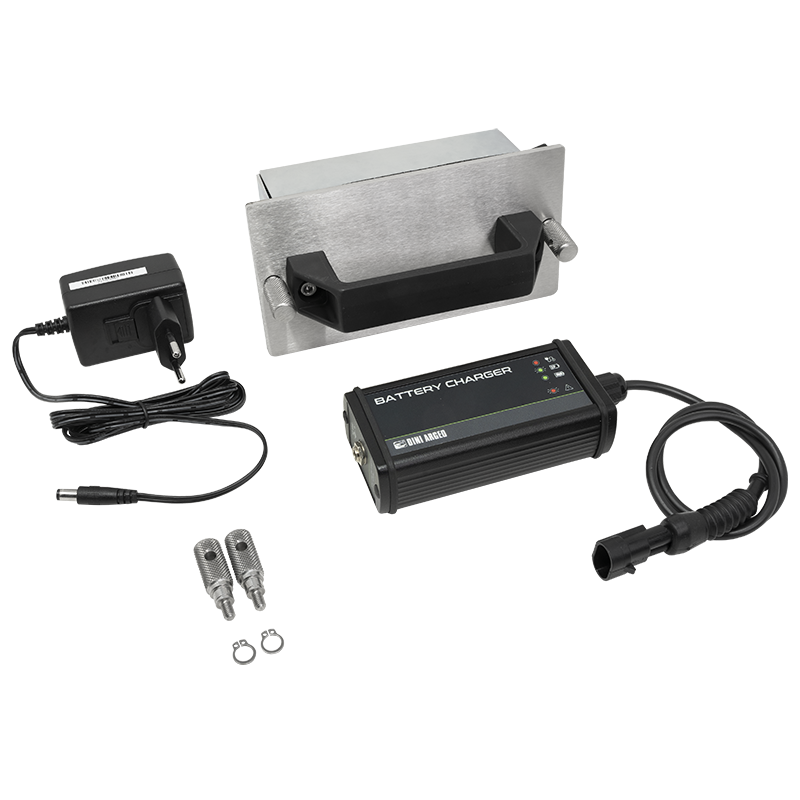

- Equipped with 230Vac 50 Hz battery charger. EU, UK, US plugs as standard
- Operating temperature: -10 /+40 ºC
- Programmable digital filter and auto switch-off
Reliable and easy to use AISI 304 stainless steel crane scales suitable for indoor and outdoor use, for industrial weighing applications. Reduced lifting distance of the crane. The single security system makes them suitable for lifting and weighing the load. IP67 protection from dust and rain. Available also CE-M APPROVED. Fitted with test certificate obtained with sample weights.
MCW Professional Series Single Security Crane Scales Specifications
|
OPTIONS ONLY AVAILABLE AT TIME OF ORDER |
AVAILABLE FUNCTIONS FROM REMOTE CONTROL |
|
Available Versions
| Code | Max (kg) | d (kg) | M (kg*) | d HR (kg)* |
|---|---|---|---|---|
| MCW300R2-1 | 300 | 0,1 | -- | 0,05 |
| MCW600R2-1 | 600 | 0,2 | -- | 0,1 |
| MCW1500R2-1 | 1500 | 0,5 | -- | 0,2 |
MCW150MR2-1  |
150 | -- | 0,05 | -- |
| MCW300MR2-1 |
300 | -- | 0,1 | -- |
| MCW600MR2-1 |
600 | -- | 0,2 | -- |
| MCW1500MR2-1 |
1500 | -- | 0,5 | -- |
(*) The HR division is obtainable only with the relative EHR option
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| SOLAS: Solutions for Weighing Containers |  Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
MCW300R2-1 | Crane scale with 300 kg capacity, 0,1 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW600R2-1 | Crane scale with 600 kg capacity, 0,2 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW1500R2-1 | Crane scale with 1500 kg capacity, 0,5 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW150MR2-1 | Approved crane scale with 150 kg capacity, 0,05 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW300MR2-1 | Approved crane scale with 300 kg capacity, 0,1 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW600MR2-1 | Approved crane scale with 600 kg capacity, 0,2 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
|
|
|
MCW1500MR2-1 | Approved crane scale with 1500 kg capacity, 0,5 kg division, IP67 stainless steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with upper shackle, bottom swivelling hook and remote control. Maintenance and safety manual included. |
Consult |
Options
High resolution (d HR)(only at time of order)
| Part # | Description | List Price | Cart / Quote |
|---|---|---|---|
| EHR | High resolution model for internal factory use. |
Consult |
