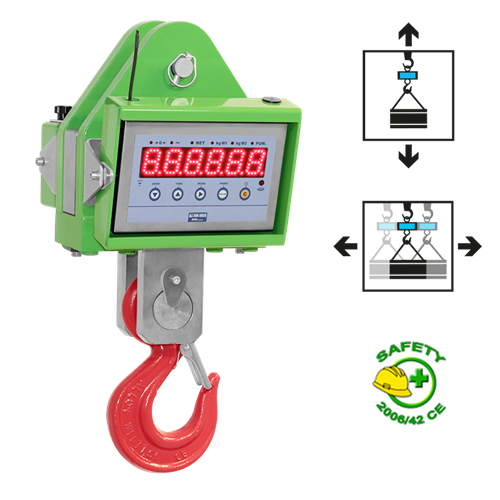

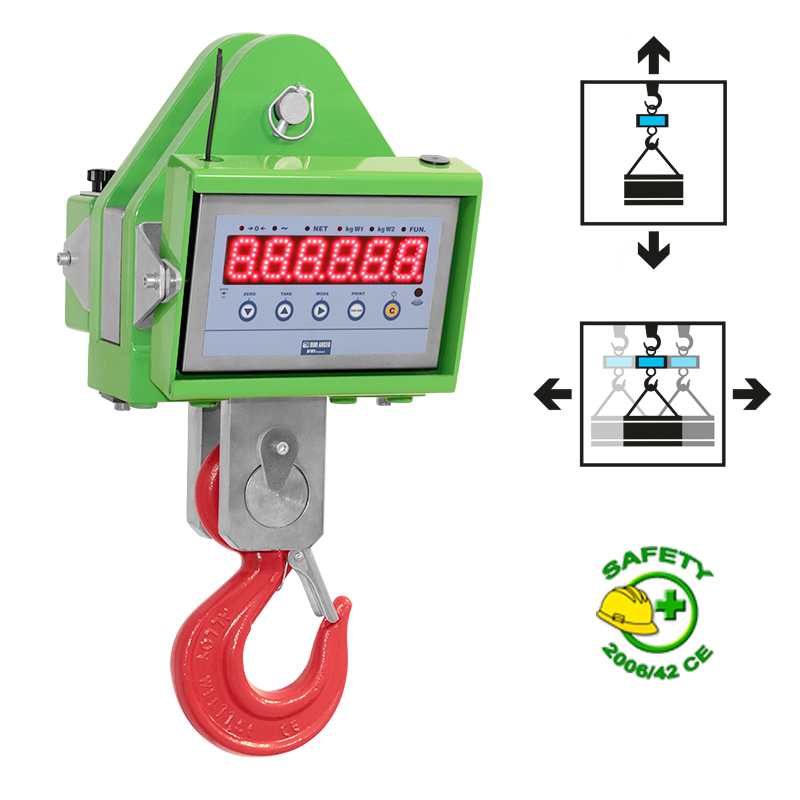

MCWHU Hulk Series Double Security Crane Scales
- Double security system, for permanent installation in the lifting system; recommended for lifting and moving the suspended load
- In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU
- 40 mm RED LED display
- Waterproof keyboard with 5 keys which are ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF

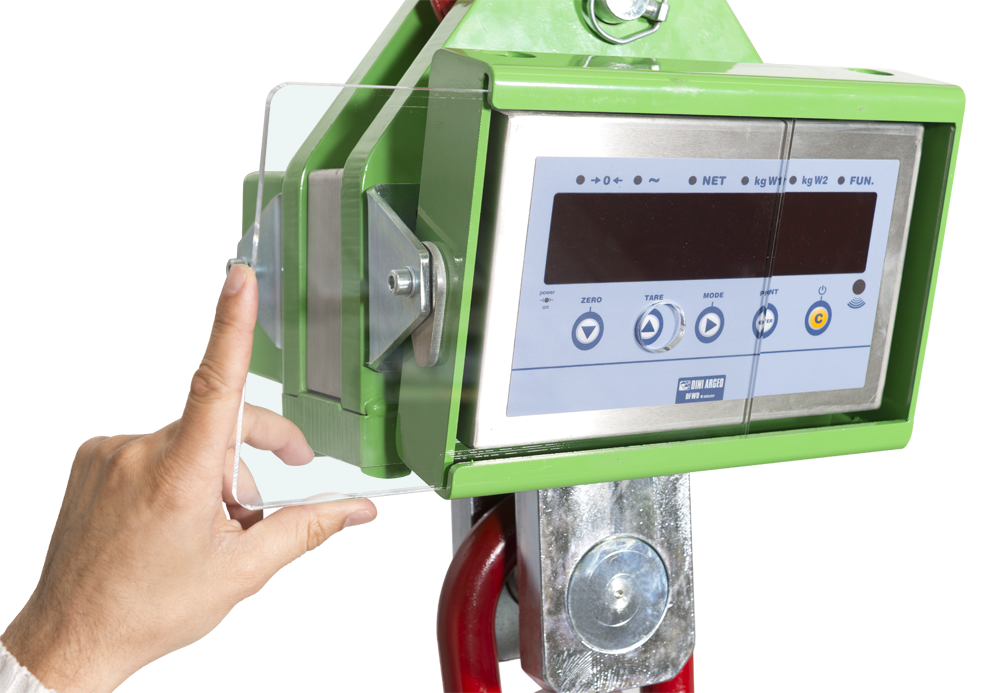

- Protective screen in plexiglass for display and keyboard
- Precision: +/- 0.03% F.S

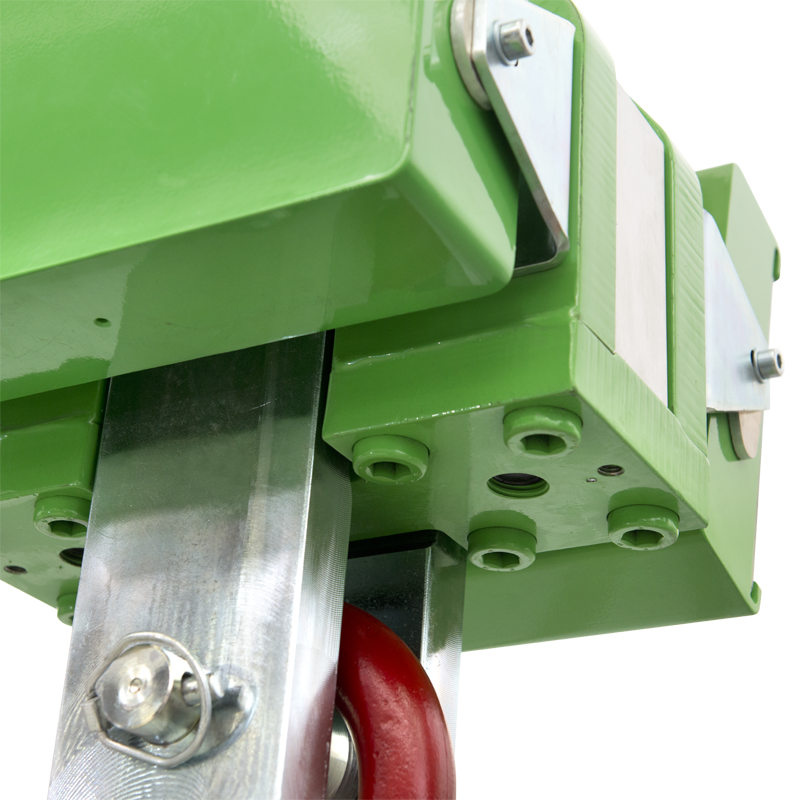

- Built extremely sturdy in oven-fire painted sheet steel, with IP67 protection degree against dust and sprays
- Weigh: 86 kg, with packaging 103 kg
- Radiofrequency 6-key remote control, 433MHz, for use up to 50 m of distance. Configurable as automatic tare only or as a remote keypad.

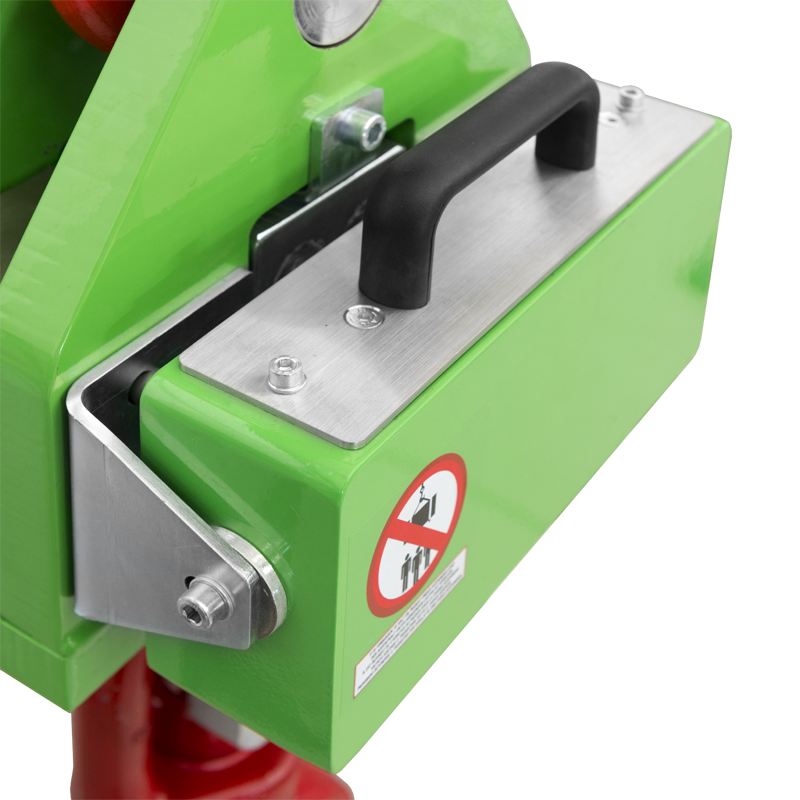

- Fitted with extractable rechargeable battery pack, with 60-hour operating time, designed to be combined with MCWHBK option for 24/7 continuous use of the crane scale. Standard fitted with battery charger.
- Digital set-up and calibration programmable directly from keyboard using a sample weight
- Operating temperature: -10 /+80ºC, with optional heat shield (-10/+40ºC for the CE-M approved model)
- Programmable digital filter and auto power saving function
- Equipped with 230 Vac 50 Hz battery charger, for charging the battery from the crane scale. EU, UK, US plugs as standard.
High Capacity Crane Scale for Industrial Weighing
High capacity crane scales for industrial weighing, reliable and easy to use, suitable both for commercial warehouses and for more harsh environments. Thanks to the double security system, they allow lifting, weighing and moving the suspended load and they can be installed permanently on the lifting system.
They are extremely compact in height and they take up little space. Configuration for optional upper connection ring and lower hook. The models with a capacity up to 15000 kg are supplied with a test certificate obtained with standard weights, while for higher capacities the certificate is available on request. They are available both for internal factory use and CE-M APPROVED.
MCWHU Hulk Series Double Security Crane Scales Specifications
|
AVAILABLE FUNCTIONS FROM REMOTE CONTROL: |
SELECTABLE FUNCTIONS: |
OPTIONS ONLY AVAILABLE AT TIME OF ORDER: |
Available Versions
| Code | Max (g) | d (g) | M (g*) |
|---|---|---|---|
| MCWHU6-30 | 6000 | 1 | -- |
| MCWHU10-3 | 10000 | 2 | -- |
| MCWHU15-3 | 15000 | 2 | -- |
| MCWHU25-3 | 25000 | 5 | -- |
MCWHU6M-3  |
6000 | -- | 2 |
| MCWHU10M-3 |
10000 | -- | 5 |
| MCWHU15M-3 |
15000 | -- | 5 |
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| SOLAS: Solutions for Weighing Containers |  Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
MCWHU6-3 | Crane scale for industrial use with 6000kg capacity, 1kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU10-3 | Crane scale for industrial use with 10.000kg capacity, 2kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU15-3 | Crane scale for industrial use with 15.000kg capacity, 2kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU25-3 | Crane scale for industrial use with 25.000kg capacity, 5kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU6M-3 | Approved crane scale with 6000kg capacity, 2kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU10M-3 | Approved crane scale with 10.000kg capacity, 5kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
|
|
|
MCWHU15M-3 | Approved crane scale with 15.000kg capacity, 5kg division, painted steel IP67 structure. Multifunction weight indicator with 5-key keypad, LED display. Fitted with remote control. |
Consult |
Options
Calibration service (ACCREDIA/DAKKS) only at time of order
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CT8 | ISO 17025 calibration certificate from 3001 to 6000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CT9 | ISO 17025 calibration certificate from 6001 to 25000 kg for single balance/platform. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CD4 | ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights. |
Consult |
|
|
|
CD6 | ISO 9001 DINI ARGEO calibration report, from 15001 to 50000kg, for single scale/platform. For crane scales. ACCREDIA reference weights. |
Consult |
