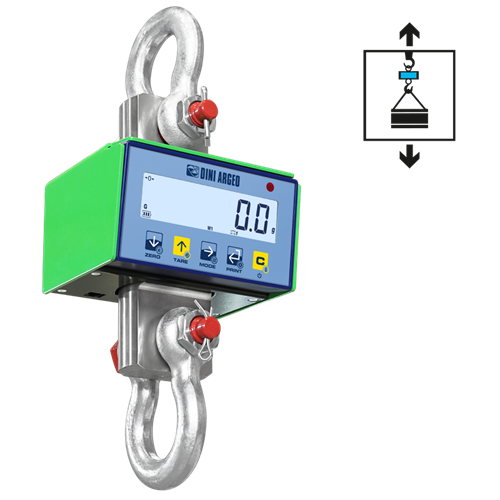

MCWN Ninja Series Single Security Suspended Crane Scales

Single security system, for the lifting and the weighing of the load
In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU
Fitted with the following upper and lower shackle:
- GR3 for MCWNT1
- GR6 for MCWNT3
- GR6 for MCWNT6
- GR9 for MCWNT9

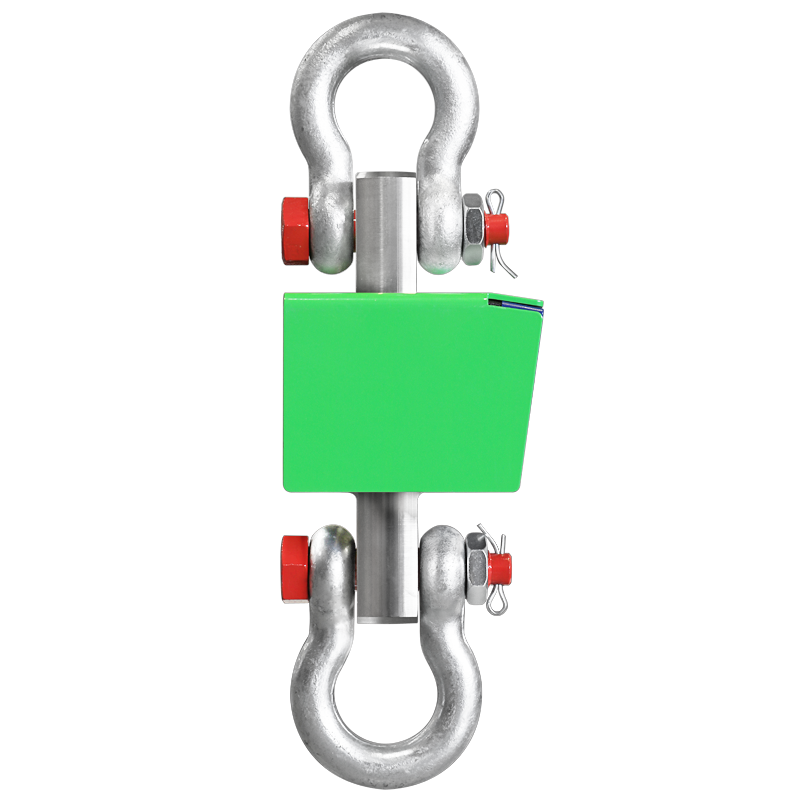

Compact size and minimum distance between upper and lower shackle
25 mm LCD backlit display, easily visible in any lighting condition
Precision: +/- 0.03% on MAX
5-key waterproof keypad: Zero, semi-automatic or preset Tare, Mode, Print, On/Off
Sturdy case in oven-fire painted steel
Fitted with infrared remote control for up to 8m distance use. The remote control can be configured by the customer as a single automatic tare or as a remote keypad.
Power supply:

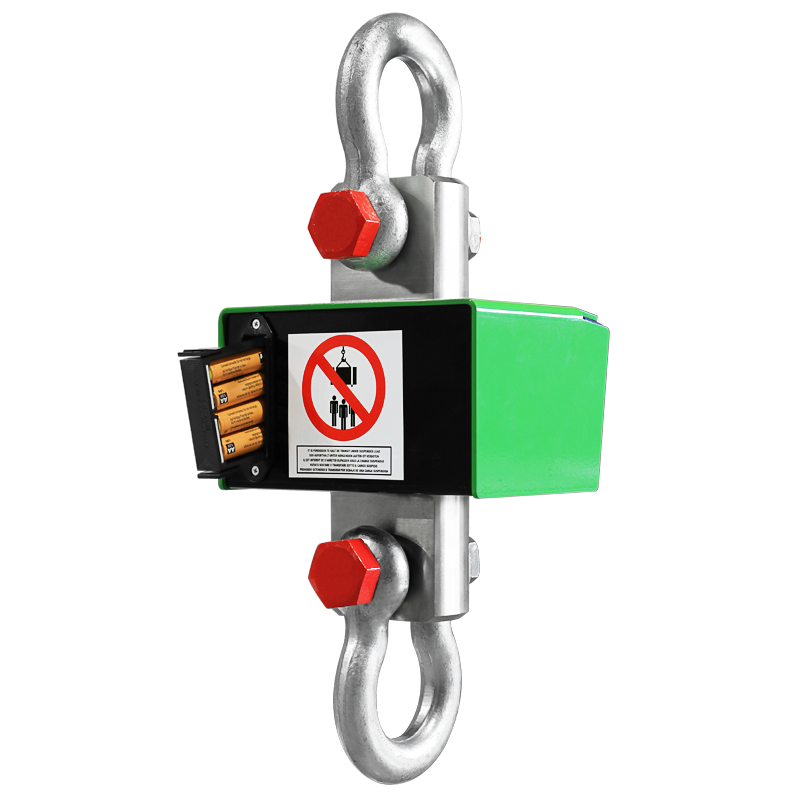

- Four AA batteries included as standard with 40-hour runtime, also compatible with rechargeable AA batteries
- Optional internal rechargeable battery kit
Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools
Programmable digital filter and auto switch-off
Operating temperature: -10 /+40 ºC
RS232 serial port on RJ11 connector for quick programming with Dinitools

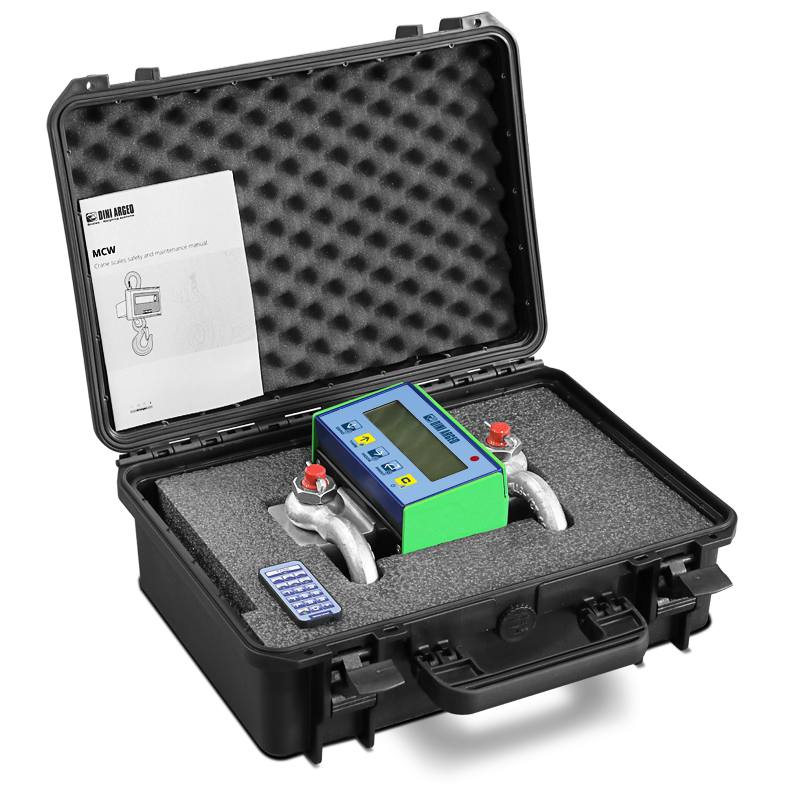

Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm

Easy to use and reliable professional digital crane scales, for weighing in industrial environments, fitted with protective transport case. The single security system makes them suitable for lifting and weighing the load. Thanks to their compact size, these crane scales just slightly reduce the lifting distance of the crane. Available also CE-M APPROVED. Fitted with test certificate obtained with standard weights.

MCWN Ninja Series Single Security Suspended Crane Scales Specifications

Main Functions

The user can select the operating modes directly using the dedicated key*:
- High resolution display x 10
- Precision weighing with temporary recalibration via a sample weight (for internal factory use)
- Net/Gross
- Lb to Kg converter
- Free conversion factor (for meter and litre counters etc.)
- Weight totalizer
- Formulizer
- +/- controller with quick target and threshold input
- Percentage weighing
- Percentage batching with programmable target
- Piece counter
- Hold
- PEAK, detection of weight peaks
- Newton to Kg converter

The “alibi memory” and “setpoint” functions are available in combination with the required operating mode and they are activated automatically when installing the relevant optional board;
Access to the user menu is gained using the dedicated key* to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.

* These quick access keys to the menus can be blocked by configuring a dedicated password.

Options (only at time of order)

2,4 GHz radio interface
Bluetooth Interface

MCWN Ninja Series Single Security Suspended Crane Scales Weight

Code	Weight (kg) Without Packaging	Weight (kg) With Packaging
MCWNT1	8	11
MCWNT3	10	14
MCWNT6	11	15
MCWNT9	15	18

Available Versions

Code	Max (kg)	d (kg)	M (kg*)
MCWNT1-3	300/600/1500	0,1/0,2/0,5	--
MCWNT1M-3	1500	--	0,5
MCWNT3-3	600/1500/3000	0,2/0,5/1	--
MCWNT3M-3	3000	--	1
MCWNT6-3	1500/3000/6000	0,5/1/2	--
MCWNT6M-3	6000	--	2
MCWNT9-3	3000/6000/9500	1/2/5	--
MCWNT9M-3	9000	--	5

Resources / Downloads

Articles

Title	View	Email	Category	Type
SOLAS: Solutions for Weighing Containers		Email	Axle Weighing Scales\|Weighing Axle Platforms and Indicators\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Crane Scales\|Weighing Forks	Articles

Parts

Available versions

Part #	Description	List Price	Cart / Quote
MCWNT1-3	Digital crane scale with 300/600/1500 kg triple range capacity, 0,1/0,2/0,5 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT1M-3	Approved digital crane scale with 1500 kg capacity, 0,5 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT3-3	Digital crane scale with 600/1500/3000 kg triple range capacity, 0,2/0,5/1 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT3M-3	Approved digital crane scale with 3000 kg capacity, 1 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT6-3	Digital crane scale with 1500/3000/6000 kg triple range capacity, 0,5/1/2 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT6M-3	Approved digital crane scale with 6000 kg capacity, 2 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT9-3	Digital crane scale with 3000/6000/9500 kg triple range capacity, 1/2/5 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View
MCWNT9M-3	Approved digital crane scale with 9000 kg capacity, 5 kg division, painted steel structure. Multifunction weight indicator with 5-key keypad and backlit LCD display. Fitted with shackles and remote control. Maintenance and safety manual included.	Consult	View

Options

Calibration service (only at time of order)

Part #	Description	List Price	Cart / Quote
CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT8	ISO 17025 calibration certificate from 3001 to 6000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CT9	ISO 17025 calibration certificate from 6001 to 25000 kg for single balance/platform. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
CD3	ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights.	Consult	View
CD4	ISO 9001 DINI ARGEO calibration report, from 6001 to 15000kg, for single scale/platform. ACCREDIA reference weights.	Consult	View

Rechargeable battery

	Part #	Description	List Price	Cart / Quote
	NIMHBKR	Rechargeable battery kit with built-in charging circuit. It replaces the AA battery holder on MCWN crane scales. Power supply with EU-UK-US socket included. This accessory can't be ordered individually, to be combined with an instrument at the order.	Consult	View

Storing the weighs

	Part #	Description	List Price	Cart / Quote
	SWM	"WeiMonitor" PC program to monitor and record in real time weighs performed on the connected scale (the price is intended for the license to manage one scale).	Consult	View

Communication Interfaces

Part #	Description	List Price	Cart / Quote
RF2G4-TTL	Integrated 2.4 GHz radio frequency module, complete of TTL port. Max. functioning distance in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. Up to 39 configurable channels. (RF2G4-TTL must be combined with another radio module).	Consult	View
ALMEM-1	Alibi memory (fiscal memory, max 120.000 weighs) for approved weight transmission to PC/PLC or data recording on MMC/USB. Built-in real time clock to print the date/time with PCB, screw terminal, plastic box and UL-marked labels (if applicable).	Consult	View
BLTH-3	Built-in bluetooth interface. For wireless connection of the scale to tablets, smartphones, laptops or barcode scanners. Attention: this interface is not suitable for Master-Slave systems.	Consult	View
OBRF2G4-USB	External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.	Consult	View

Weight repeaters

Part #	Description	List Price	Cart / Quote
GLR100-2G4	Alphanumeric radio repeater with 110 mm multicolour LED display.	Consult	View
DGT100R-1	Weight repeater with 100mm LED display. IP68 stainless steel case, 5-key keypad, air valve for regulating the humidity and the pressure.	Consult	View
DFWPM2G4	Portable weight repeater for radio frequency communication, with ABS case, 5-key keypad and backlit LCD display. Fitted with integrated 2.4GHz radio module.	Consult	View
DFWPM2G4-USB	Portable weight repeater for radio frequency communication, with ABS case, 5-key keypad and backlit LCD display. Fitted with integrated Radio module, mini USB port and memory for recording the weighs.	Consult	View
DFWKPXP	17-key indicator with attached printer and real time clock. ABS case, backlit LCD display.	Consult	View
MSTSLV	Program for using the indicator as a repeater. It must be combined with the DFW and DGT weight indicators.	Consult	View
OBRF2G4	External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.	Consult	View

Date&Time option

	Part #	Description	List Price	Cart / Quote
	DFCLK	Real time clock for printing/displaying of date and time. With UL marked PCB, screw terminal, plastic box and labels (if applicable).	Consult	View

Accessories

Part #	Description	List Price	Cart / Quote
GG1T5	Swivelling bottom hook with safety lock 1,5 t.	Consult	View
GG4	Swivelling bottom hook with safety lock 4 t.	Consult	View
GG7	Swivelling bottom hook with safety lock 7 t.	Consult	View
GG11	Swivelling bottom hook with safety lock 11 t.	Consult	View
GG15	Swivelling bottom hook with safety lock 15 t.	Consult	View
CA2	Connection ring 2 t.	Consult	View
CA4	Connection ring 4 t.	Consult	View
CA8	Connection ring 8 t.	Consult	View
CA15	Connection ring 15 t.	Consult	View
GOC3200	Fixed hook, MAX 3.2 t, with safety lock.	Consult	View
GOA8	Fixed hook, MAX 8 t, with safety lock.	Consult	View
GOA11	Fixed hook, MAX 11 t, with safety lock.	Consult	View
GOA16	Fixed hook, MAX 16 t, with safety lock.	Consult	View

Other options

Part #	Description	List Price	Cart / Quote
TECSUP	Technical assistance by telephone upon request.	Consult	View
UMAN	Printed user manual (Free download from the website).	Consult	View
TECMAN	Printed technical manual (Free download from the website).	Consult	View
ECEMDOC	Printed EU declaration of conformity, EU certificate of verification, test certificate and metrological book (free download from our website, only for approved CE-M products). NET _.	Consult	View
