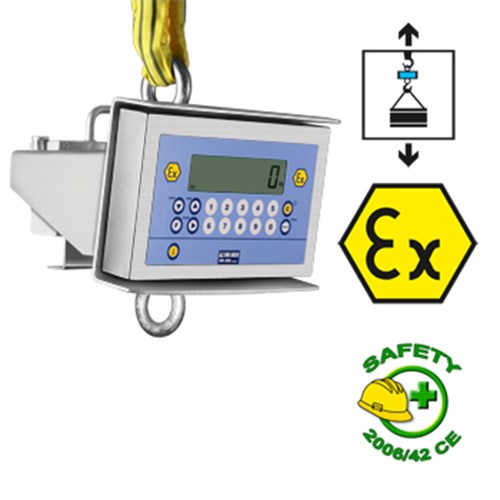

MCWX2GD Single Security Suspended Crane Scales
- Single security system, for the lifting and the weighing of the load.
- In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
- Indicator with 17-key numeric-functional waterproof keyboard.
- LCD display with 6 25-mm high contrast digits and icons for showing the active functions.
- Precision: +/- 0.1% F.S.
- Built extremely sturdy in IP65 stainless steel.
- Fitted with upper and lower shackle GR3 (GR6 for the 3T and 6T version).
- Digital set-up and calibration programmable directly from keyboard using a sample weight.
- Operating temperature: -10 /+40 ºC.
- Adjustable digital filter, anti vibration and oscillation.
- Programmable auto switch-off power for energy saving.
- Hermetically sealed extractable rechargeable battery, with 160-hour operating time; rechargeable in safe area.
- Equipped with 230Vac 50 Hz battery charger to be used in safe area.
Industrial crane scales for use in areas classified as hazardous (Zone 1 and 21, 2 and 22) in accordance with ATEX Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection. The single security system makes them suitable for lifting and weighing the load.
Structure completely in stainless steel, with IP65 protection degree. Little space is taken up, allowing the best use of the lifting devices. Predisposed for an upper connection ring and lower hook.
MCWX2GD Single Security Suspended Crane Scales Specifications
|
Keyboard Functions: |
Selectable Functions: |
Options: |
Available Versions
| Code | Max (kg) | d (kg) | M (kg*) | d HR (kg)* |
|---|---|---|---|---|
| MCWX2GD600-1 | 600 | 0,2 | -- | 0,1 |
| MCWX2GD1T5-1 | 1500 | 0,5 | -- | 0,2 |
| MCWX2GD3T-1 | 3000 | 1 | -- | 0,5 |
| MCWX2GD6T-1 | 6000 | 2 | -- | 1 |
MCWX2GD600M-1  |
600 | -- | 0,2 | -- |
| MCWX2GD1T5M-1 |
1500 | -- | 0,5 | -- |
| MCWX2GD3TM-1 |
3000 | -- | 1 | -- |
| MCWX2GD6TM-1 |
6000 | -- | 2 | -- |
(*) The HR division is obtainable only with the relative EHR option
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| SOLAS: Solutions for Weighing Containers |  Email |
Axle Weighing Scales|Weighing Axle Platforms and Indicators|In-Motion Axle Scales|Dynamic Axle Weighing|Crane Scales|Weighing Forks | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
MCWX2GD600-1 | Crane scale for ATEX zones with 600 kg capacity, 0,2 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD1T5-1 | Crane scale for ATEX zones with 1500 kg capacity, 0,5 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD3T-1 | Crane scale for ATEX zones with 3000 kg capacity, 1 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD6T-1 | Crane scale for ATEX zones with 6000 kg capacity, 2 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD600M-1 | Approved crane scale for ATEX zones with 600 kg capacity, 0,2 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD1T5M-1 | Approved crane scale for ATEX zones with 1500 kg capacity, 0,5 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD3TM-1 | Approved crane scale for ATEX zones with 3000 kg capacity, 1 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
|
|
|
MCWX2GD6TM-1 | Approved crane scale for ATEX zones with 6000 kg capacity, 2 kg division, IP68 stainless steel structure, 17-key keypad and LCD display. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197øC Db X protection. Fitted with manuals and conformity declaration (available in IT, EN, FR). Maintenance and safety manual included. |
Consult |
Options
Calibration service only available at time of order
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CT6 | ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CT7 | ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CT8 | ISO 17025 calibration certificate from 3001 to 6000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
|
|
|
CD2 | ISO 9001 DINI ARGEO calibration report, from 301 to 1500 kg, for single scale/platform. ACCREDIA reference weights. |
Consult |
|
|
|
CD3 | ISO 9001 DINI ARGEO calibration report, from 1501 to 6000 kg, for single scale/platform. ACCREDIA reference weights. |
Consult |
