Multipurpose ETHERNET/WIFI Interface for Digital Scales

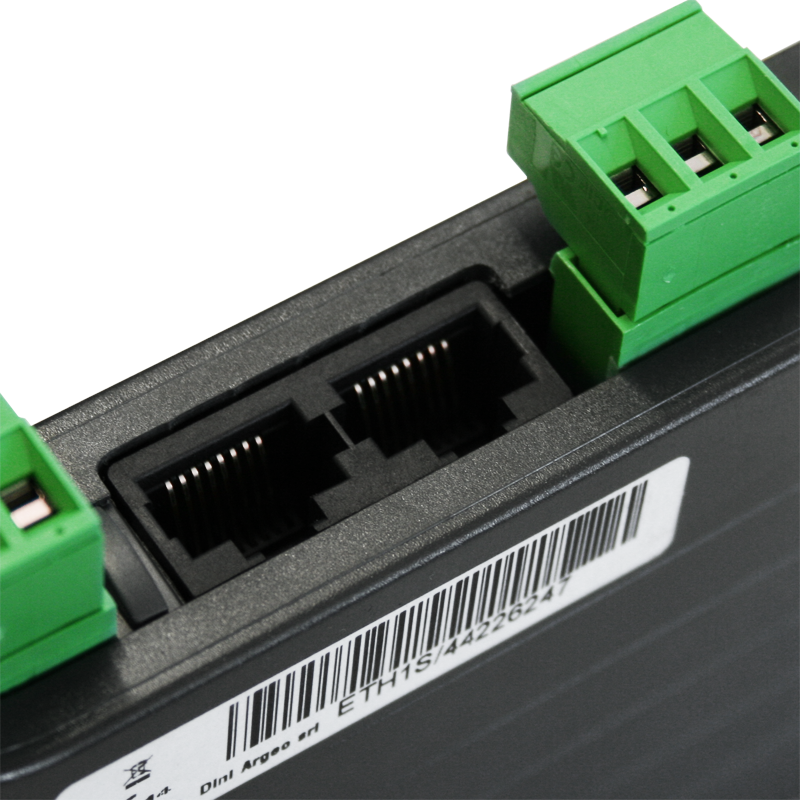

- WIFI directional antenna and standard RJ45 Ethernet port for programming the module through its browser

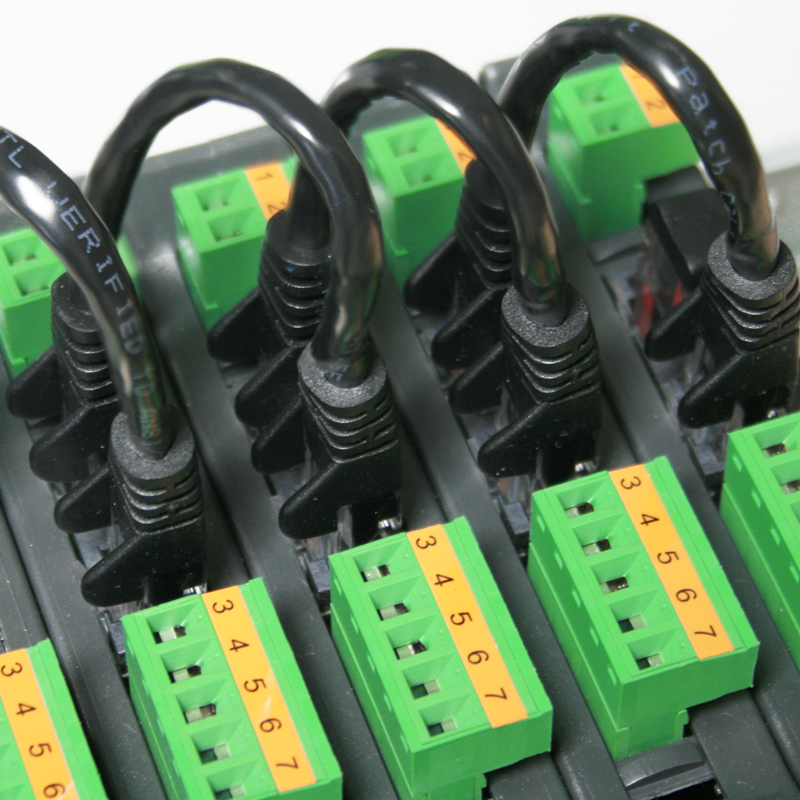

- RS485 port on a removable screw terminal block and on RJ45 connector for quick connection to the main weigh transmitter DGT1S
- RS232 port on a removable screw terminal block
- Power supply: 12 to 24Vdc
Wi-Fi Features
- Configuration through WIFI/Ethernet
- Standard WiFi IEEE 802.11b/g/n device
- Range: outdoor 70m, indoor 25m. Distance may change depending on the material of the indicator’s case and on environmental conditions
- Frequency: 2.4/2.5 GHz
- Data Rate: up to 500Kbps
- Protocols and functioning modes: IEEE 802.11b/g/n, WEP, WPA and WPA2-PSK(AES/TKIP)
- Storage temperature: -40°C +95°C
Dimensiones reducidas, óptima calidad de señal, sobre protocolos de red más conocidos, son algunas de las características de este producto que permite la fácil conexión sin cables de cualquier balanza o sistema de pesaje al sistema informático empresarial a través del conector RJ45; de fácil instalación y conexión a los visores con el cable en dotación.
El módulo no incluye el empleo de otros productos de la gama Dini Argeo en el sistema, cuales Semáforo, Alibi memory, impresora unida o externa.
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|

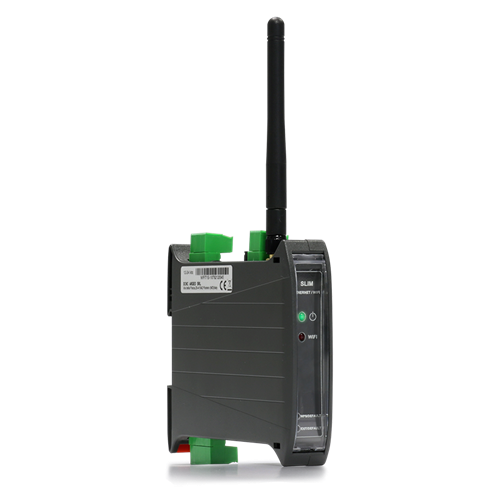

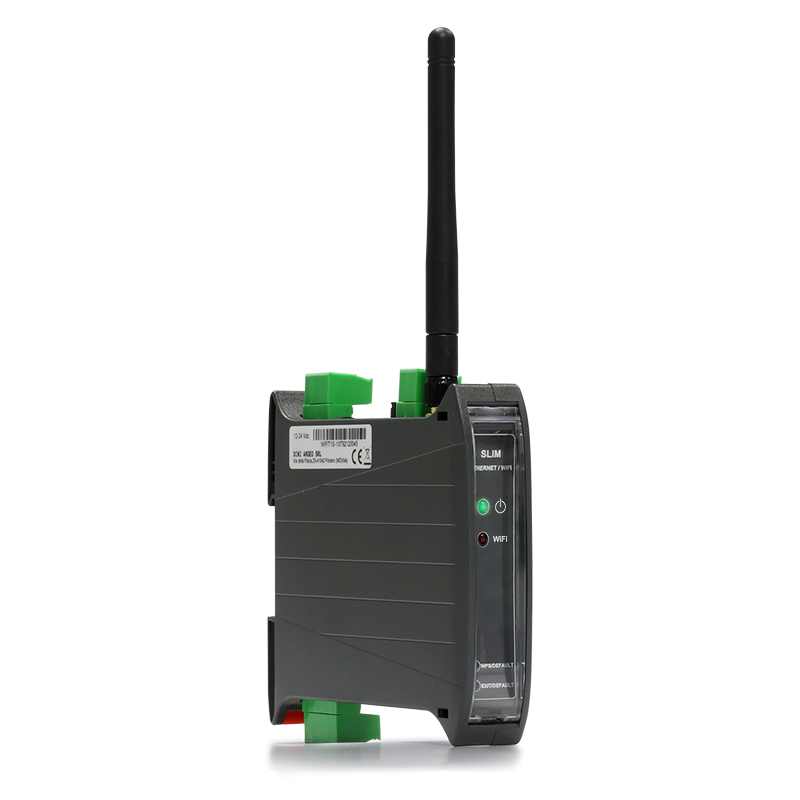

WIFIT1S-1 | Serial to WiFi compact converter for DIN bar. |
Consult |
Options
Power supply
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
MDR2012 | 12Vdc power unit for DIN bar. 110/240Vac input. CE and UL certified. Not compatible with BOX2121S. |
Consult |
|
|
DR1512 | 12Vdc power unit for DIN bar. 110/240Vac input. |
Consult |
