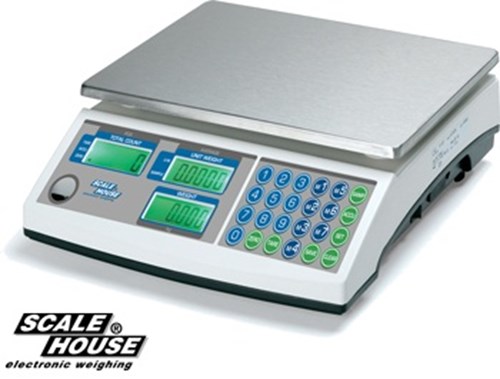

NCL Series Counting Compact Scale
- 3 backlit LCD displays for simultaneously viewing the weight, average piece weight and number of pieces.
- Mechanical waterproof numerical and functional keypad with 24 keys and acoustic feedback.
- Stainless steel plate, 235x335mm size.
- Level and adjustable feet.
- Built-in rechargeable battery 4Vdc (about 100h battery life) and 230Vac power adapter (EU plug).
- Packaging: 380x138x370mm size - approximate weight of 4kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate
Compact and portable counting scale with large plate, ideal for rentals and inventories, with pieces' totalization function. 8 PLU memory.
NCL Specification
Functions: |
|
|
NCL Series Counting Features
Internal sensitivity and minimum accepted A.P.W.:
Model | NCL3K | NCL6K | NCL15K | NCL30K |
Internal sensitivity g |
0,01 |
0,02 |
0,05 |
0,1 |
Min. accepted A.P.W. g |
0,05 |
0,1 |
0,25 |
0,5 |
Available Versions
Code | Max (kg) | d (g) |
---|---|---|
NCL3K | 3 | 0,1 |
NCL6K | 6 | 0,2 |
NCL15K | 15 | 0,5 |
NCL30K | 30 | 1 |
Resources / Downloads
Articles
Title | View | Category | Type | |
---|---|---|---|---|
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses | Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
Part # | Description | List Price | Cart | |
---|---|---|---|---|
![]() |
NCL3K | Counting scale with 3 kg capacity, 0,1 g division, stainless steel plate 235x335 mm, 3 backlit LCD displays and mechanical waterproof keypad. |
Call for price |
|
![]() |
NCL6K | Counting scale with 6 kg capacity, 0,2 g division, stainless steel plate 235x335 mm, 3 backlit LCD displays and mechanical waterproof keypad. |
Call for price |
|
![]() |
NCL15K | Counting scale with 15 kg capacity, 0,5 g division, stainless steel plate 235x335 mm, 3 backlit LCD displays and mechanical waterproof keypad. |
Call for price |
|
![]() |
NCL30K | Counting scale with 30 kg capacity, 1 g division, stainless steel plate 235x335 mm, 3 backlit LCD displays and mechanical waterproof keypad. |
Call for price |
Options
Calibration service only available at time of order
Part # | Description | List Price | Cart | |
---|---|---|---|---|
![]() |
CT3 | ISO 17025 calibration certificate up to 5 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Call for price |
|
![]() |
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Call for price |
Replacement Parts
Related Products
![NCS](/media/j0ansakj/ncs.jpg?anchor=center&mode=crop&width=450&rnd=132737715162030000)
NCS Series Counting Compact Scale
Compact and portable counting scale, ideal for rentals and inventories, with pieces' totalization function.
![Asc](/media/l5bgkobx/asc.jpg?anchor=center&mode=crop&width=450&rnd=132777682615270000)
ASC Series Counting Compact Scale
Counting scale, particularly suitable for taking inventories and counting small parts. Weight or piece quantity check, weight and pieces' totalization, 10 PLU memory. Available also CE-M APPROVED for legal for trade use.
![BCSD](/media/gnrhfvdc/bcsd.jpg?anchor=center&mode=crop&width=450&rnd=132737717359730000)

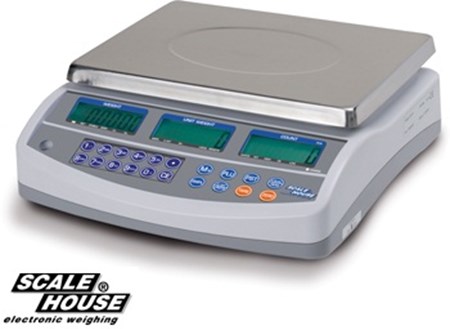

BCSD Series Dual Loading Counting Scale
