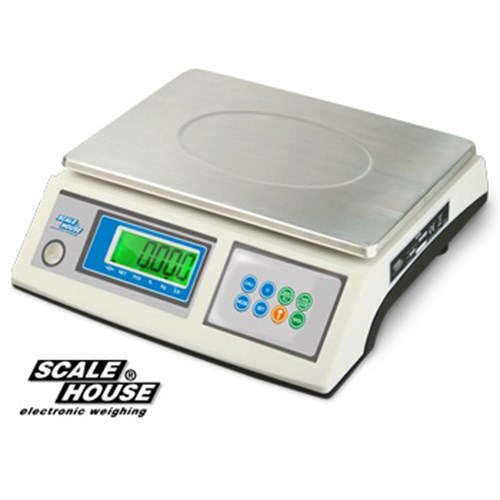

NWL Series Multifunction/Counting Scale
- Backlit LCD display with 6 digits 28mm high.

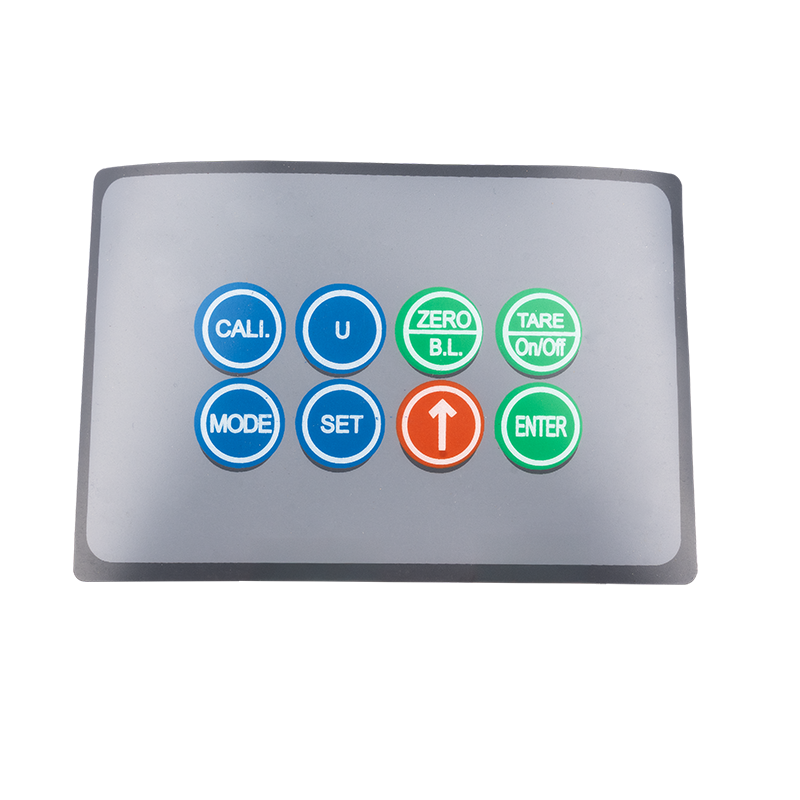

- Mechanical waterproof keypad with 8 keys and acoustic feedback.
- Stainless steel plate, 235x335mm size.
- Level and adjustable feet.
- Built-in rechargeable battery 4Vdc (about 100h battery life) and 230Vac power adapter (EU plug).
- Packaging: 380x130x370mm size - approximate weight of 4kg.
- Upon request:
- ACCREDIA calibration with issuing of relative certificate
Compact and portable multifunction scale, with a stainless steel large plate, and counting and weight check function.
NWL Series Specifications
|
Functions: |
|
|
NWL Series Counting Features
Internal sensitivity and minimum accepted A.P.W.:
| Model | NWL6K | NWL15K | NWL30K | NWLH30K |
| Internal sensitivity g |
0,02 |
0,05 |
0,1 |
0,1 |
| Min. accepted A.P.W. g |
1 |
2,5 |
5 |
0,5 |
Available Versions
| Code | Max (kg) | d (g) | d HR (g)* |
|---|---|---|---|
| NWL6K | 6 | 2 | 1 |
| NWL15K | 15 | 5 | 2 |
| NWL30K | 30 | 10 | 5 |
| NWLH30K | 30 | 1 | - |
(*) HR divisions programmable from set-up.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
NWL6K | Multifunction/counting scale with 6 kg capacity, 2 g division, stainless steel plate 235x335 mm, backlit LCD display and mechanical waterproof keypad. |
Consult |
|
|
|
NWL15K | Multifunction/counting scale with 15 kg capacity, 5 g division, stainless steel plate 235x335 mm, backlit LCD display and mechanical waterproof keypad. |
Consult |
|
|
|
NWL30K | Multifunction/counting scale with 30 kg capacity, 10 g division, stainless steel plate 235x335 mm, backlit LCD display and mechanical waterproof keypad. |
Consult |
|
|
|
NWLH30K | Multifunction/counting scale with 30 kg capacity, 1 g division, stainless steel plate 235x335 mm, backlit LCD display and mechanical waterproof keypad. |
Consult |
Options
Calibration service only available at time of order
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CT4 | ISO 17025 calibration certificate from 6 to 60 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail. |
Consult |
Spare parts
Related Products
NWS Series Multifunction/Counting Scale
Compact and portable multifunction scale, with counting function and weight check function.

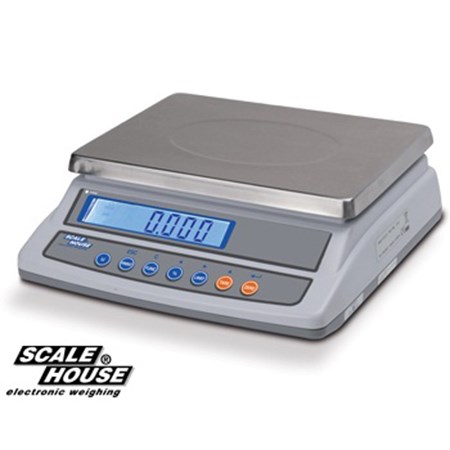

ASW Series Multifunction/Counting Scale
Professional, multifunction, compact scale with the counting, % weight, weight and pieces quantity check and weight totalization functions.
