Product PDF

OBRF 2.4 GHz Radio Frequency Interface Box

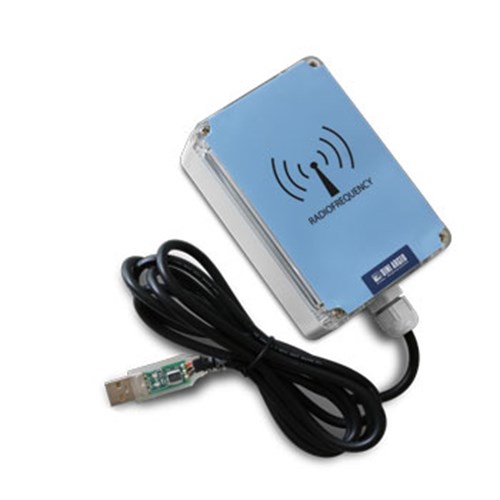

Technical features OBRF2G4-USB module

  • For the connection to PC
  • PVC box
  • Box dimensions (lxwxh): 120x80x55mm
  • USB input signal
  • USB/mini USB connecting cable, 1m long
  • Power supply directly from USB port

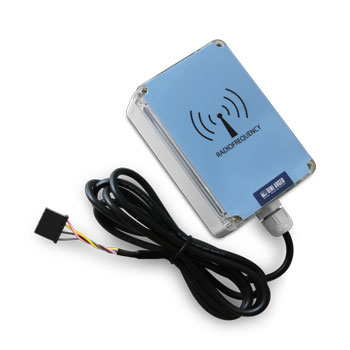

Technical features OBRF2G4 module

  • For the connection to weight indicator/repeater
  • IP65 ABS box
  • Box dimensions (lxwxh): 120x80x55mm
  • RS232 input signal
  • RS232 connecting cable, 3m long
  • Power supply from weight indicator/repeater
  • Decoding standard cable colors:

Request More Information
OBRF2G4 USB

2.4 GHz Radio frequency interface box, for wireless communication between PC/master device and weight indicator/repeater. Up to 39 channels, connection through USB or RS232 port (depending on the model).

Operating specification

  • Operating frequency from 2.4 GHz, up to 39 different channels in order to install various independent systems in the same work area.
  • Max. functioning distance in appropriate environmental and installation conditions: up to 45m indoor, and up to 140m outdoor.
  • Input signal: RS232 standard.
  • Integrated installation inside the scale.
  • Does not require particular communication protocols, transmission in transparent manner of any character received in input.

Parts

Available Versions

Part # Description List Price Cart/Quote
OBRF2G4 External 2.4 GHz radio module, cable l=3m. ABS IP65 protecting box, 3 m cable, power supply from weight indicator. Max. distance, in appropriate environmental and installation conditions: 45 m indoors, 140m outdoors. 39 configurable channels.

Consult
OBRF2G4-USB External 2.4 GHz radio frequency module, USB cable l=1m. Power supply directly from the USB port. Max. functioning distance, in appropriate environmental and installation conditions: 45 m indoors, 140 outdoors. 39 configurable channels.

Consult
OBRF2G4-232 2,4GHz radio module for PC with ABS IP65 case and l=3m cable. Fitted with DB9 connector and external power supply. Max. functioning distance, in appropriate environmental and installation conditions: 45m indoor, 140m outdoor. 39 configurable channels.

Consult
