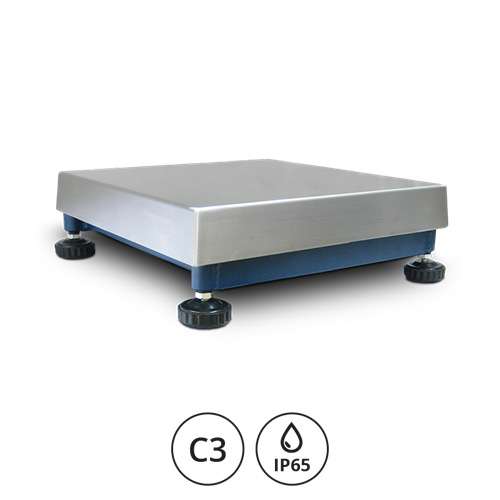

PB SERIES SINGLE-CELL PLATFORMS
- Optional calibration service from 6000d to 15000d (internal use); 3000e approved OIML R60 C3.
- Functioning with a “single point” 350 Ohm aluminium load cell, IP65 protection degree.
- Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
- Fitted with stainless steel loading surface.
- Up to 15 Vdc power supply.
- 3m shielded cable for connection to the indicator.
- Upon request:
-
- platform calibration service with weight indicator;
- 3000e CE-M approval;

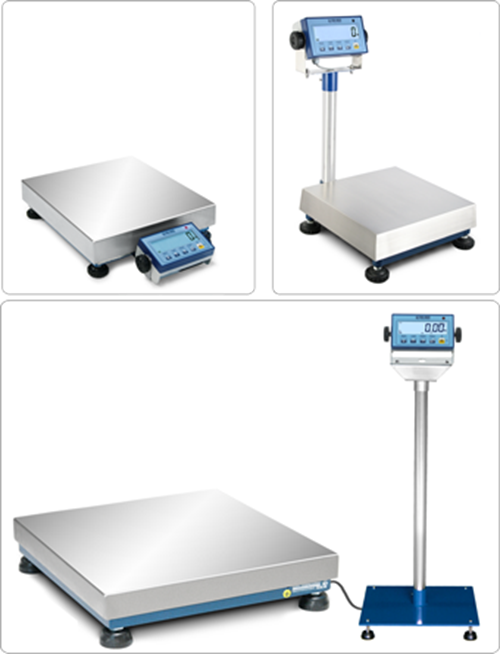

- support column for indicator.
Painted Steel. Load cell in Aluminium. IP65 protection rating.
Precision class C3.
Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure.
- Up to 15000d resolution.
- OIML R60 C3.
- IP65 protection.
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (g) | M (g*) | d HR (g)* |
|---|---|---|---|---|---|
| PBT6 | 300x300x130 | 6 | 1 | 2 | 0,5 |
| PBT15 | 300x300x130 | 15 | 2 | 5 | 1 |
| PBT30 | 300x300x130 | 30 | 5 | 10 | 2 |
| PBK6 | 300x400x140 | 6 | 1 | 2 | 0,5 |
| PBK15 | 300x400x140 | 15 | 2 | 5 | 1 |
| PBK30 | 300x400x140 | 30 | 5 | 10 | 2 |
| PBQ30 | 400x400x140 | 30 | 5 | 10 | 2 |
| PBQ60 | 400x400x140 | 60 | 10 | 20 | 5 |
| PBQ150 | 400x400x140 | 150 | 20 | 50 | 10 |
| PBM30 | 400x500x140 | 30 | 5 | 10 | 2 |
| PBM60 | 400x500x140 | 60 | 10 | 20 | 5 |
| PBM150 | 400x500x140 | 150 | 20 | 50 | 10 |
| PBX60 | 600x600x165 | 60 | 10 | 20 | 5 |
| PBX150 | 600x600x165 | 150 | 20 | 50 | 10 |
| PBX300 | 600x600x165 | 300 | 50 | 100 | 20 |
| PBY60 | 600x800x170 | 60 | 10 | 20 | 5 |
| PBY150 | 600x800x170 | 150 | 20 | 50 | 10 |
| PBY300 | 600x800x170 | 300 | 50 | 100 | 20 |
| PBE300 | 800x800x170 | 300 | 50 | 100 | 20 |
| PBE600 | 800x800x170 | 600 | 100 | 200 | 50 |
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
PBT6 | Platform made of painted steel, IP65, Max=6kg, d=1g, 300x300mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBT15 | Platform made of painted steel, IP65, Max=15kg, d=2g, 300x300mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBT30 | Platform made of painted steel, IP65, Max=30kg, d=5g, 300x300mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
PBK6 | Platform made of painted steel, IP65, Max=6kg, d=1g, 300x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBK15 | Platform made of painted steel, IP65, Max=15kg, d=2g, 300x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBK30 | Platform made of painted steel, IP65, Max=30kg, d=5g, 300x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBQ30 | Platform made of painted steel, IP65, Max=30kg, d=5g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBQ60 | Platform made of painted steel, IP65, Max=60kg, d=10g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBQ150 | Platform made of painted steel, IP65, Max=150kg, d=20g, 400x400mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBM30 | Platform made of painted steel, IP65, Max=30kg, d=5g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBM60 | Platform made of painted steel, IP65, Max=60kg, d=10g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBM150 | Platform made of painted steel, IP65, Max=150kg, d=20g, 400x500mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBX60 | Platform made of painted steel, IP65, Max=60kg, d=10g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBX150 | Platform made of painted steel, IP65, Max=150kg, d=20g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBX300 | Platform made of painted steel, IP65, Max=300kg, d=50g, 600x600mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBY60 | Platform made of painted steel, IP65, Max=60kg, d=10g, 600x800mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBY150 | Platform made of painted steel, IP65, Max=150kg, d=20g, 600x800mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBY300 | Platform made of painted steel, IP65, Max=300kg, d=50g, 600x800mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBE300 | Platform made of painted steel, IP65, Max=300kg, d=50g, 800x800mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBE600 | Platform made of painted steel, IP65, Max=600kg, d=100g, 800x800mm loading surface made of AISI304 stainless steel. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
