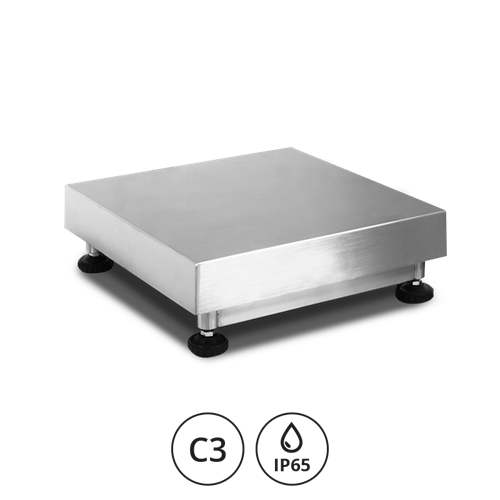

PBI Series Single-Cell Platforms
- Functions with a “single point” 350 Ohm aluminum load cell, in stainless steel hermetic cover, approved according to OIML R60 C3 standards (3000 divisions), IP65 protection degree
- Stainless steel tubular structure, with adjustable resting feet and level
- Fitted with stainless steel loading surface
- Up to 15 VDC power supply
- 3m shielded cable for connection to the indicator
- Upon request:
- Platform calibration service with weight indicator
- 3000e CE-M approval, to be combined always to the calibration service
- Support column for indicator
Stainless Steel. Load cell in Aluminium. IP65 protection rating.
Precision class C3.
Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure. Suitable for creating scales and automatic weight checking systems for all industrial and commercial applications. The standard version is provided with approved load cell.
Available Versions
| Code | l x w x h (mm) | Max (kg) | d (g) |  (g)* |
|---|---|---|---|---|
| PBTI6 | 300x300x130 | 6 | 2 | - |
| PBTI15 | 300x300x130 | 15 | 5 | 5 |
| PBTI30 | 300x300x130 | 30 | 10 | 10 |
| PBKI6 | 300x400x140 | 6 | 2 | - |
| PBKI15 | 300x400x140 | 15 | 5 | 5 |
| PBKI30 | 300x400x140 | 30 | 10 | 10 |
| PBKI60 | 300x400x140 | 60 | 20 | 20 |
| PBQI30 | 400x400x140 | 30 | 10 | 10 |
| PBQI60 | 400x400x140 | 60 | 20 | 20 |
| PBQI150 | 400x400x140 | 150 | 50 | 50 |
| PBMI30 | 400x500x140 | 30 | 10 | 10 |
| PBMI60 | 400x500x140 | 60 | 20 | 20 |
| PBMI150 | 400x500x140 | 150 | 50 | 50 |
| PBXI60 | 600x600x165 | 60 | 20 | 20 |
| PBXI150 | 600x600x165 | 150 | 50 | 50 |
| PBXI300 | 600x600x165 | 300 | 100 | 100 |
| PBYI60 | 600x800x170 | 60 | 20 | 20 |
| PBYI150 | 600x800x170 | 150 | 50 | 50 |
| PBYI300 | 600x800x170 | 300 | 100 | 100 |
*Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
PBTI6 | Platform made of AISI304 stainless steel, IP65, Max=6kg, d=2g, 300x300mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBTI15 | Platform made of AISI304 stainless steel, IP65, Max=15kg, d=5g, 300x300mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBTI30 | Platform made of AISI304 stainless steel, IP65, Max=30kg, d=10g, 300x300mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBKI6 | Platform made of AISI304 stainless steel, IP65, Max=6kg, d=2g, 300x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBKI15 | Platform made of AISI304 stainless steel, IP65, Max=15kg, d=5g, 300x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBKI30 | Platform made of AISI304 stainless steel, IP65, Max=30kg, d=10g, 300x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBKI60 | Single cell platform Max=60kg, d=20g, loading surface=300x400mm. Completely stainless steel structure and loading surface h=140mm. |
Consult |
|
|
|
PBQI30 | Platform made of AISI304 stainless steel, IP65, Max=30kg, d=10g, 400x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBQI60 | Platform made of AISI304 stainless steel, IP65, Max=60kg, d=20g, 400x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBQI150 | Platform made of AISI304 stainless steel, IP65, Max=150kg, d=50g, 400x400mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBMI30 | Platform made of AISI304 stainless steel, IP65, Max=30kg, d=10g, 400x500mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBMI60 | Platform made of AISI304 stainless steel, IP65, Max=60kg, d=20g, 400x500mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBMI150 | Platform made of AISI304 stainless steel, IP65, Max=150kg, d=50g, 400x500mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBXI60 | Platform made of AISI304 stainless steel, IP65, Max=60kg, d=20g, 600x600mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBXI150 | Platform made of AISI304 stainless steel, IP65, Max=150kg, d=50g, 600x600mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBXI300 | Platform made of AISI304 stainless steel, IP65, Max=300kg, d=100g, 600x600mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBYI60 | Platform made of AISI304 stainless steel, IP65, Max=60kg, d=20g, 600x800mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBYI150 | Platform made of AISI304 stainless steel, IP65, Max=150kg, d=50g, 600x800mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
|
|
|
PBYI300 | Platform made of AISI304 stainless steel, IP65, Max=300kg, d=100g, 600x800mm loading surface. 3m shielded cable. Aluminium load cell in class C3. Optional calibration and approval services. |
Consult |
Options
Calibration service with weight indicator
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
DINICAL | Connection to a Dini Argeo indicator and calibration. NET PRICE (*). |
Consult |
|
|
|
DINICAL-DRC | Connection to a Dini Argeo indicator and calibration. NET PRICE. |
Consult |
Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)
IP68 protection

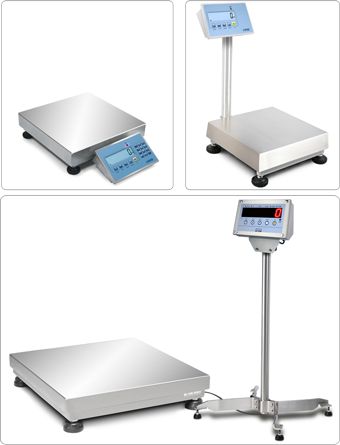

Attached columns
Floor columns
Calibration service with Dini Argeo indicator (only at time of order)
Related Products
New TE HYGIENX® Series Single Cell Platforms
Made entirely of AISI 316 stainless steel in Italy, the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.

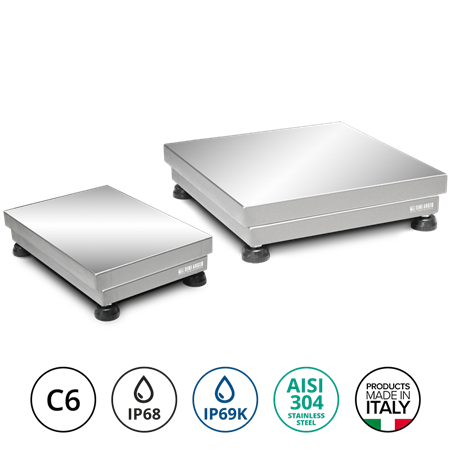

TE 69K Series Single-Cell Platforms
The TE 69K series platform scales are known for their accuracy and robustness and are ideal for wet and corrosive environments.

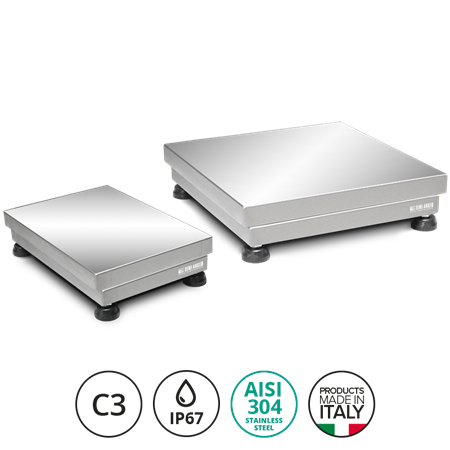

TE Series Single-Cell Platforms
