Portable Kit for Vehicle Axle Weighing

Stationary and In-motion Weighing:
The stationary weighing function allows the vehicle to be weighed by adding up the weights of the individual axles.

As well as being the most cost-effective way to weigh, it avoids penalties due to axle overloading and is particularly suitable for those who need to change the weighing location frequently.
The in-motion weighing function allows you to minimize weighing time.

The weight is acquired as the vehicle passes over the scale, without the need to stop for weighing each axle.
In-motion weighing is particularly suitable for those who need to weigh frequently during the day.

Technologically advanced:

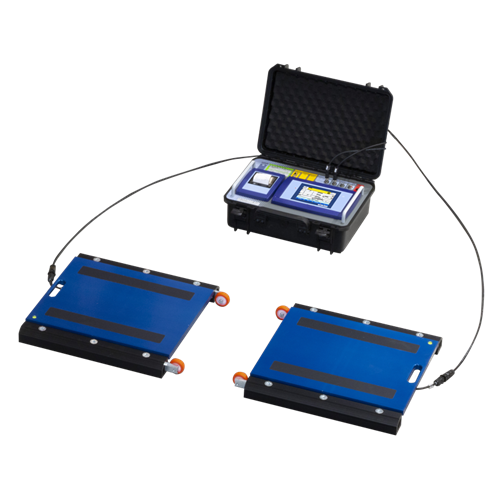

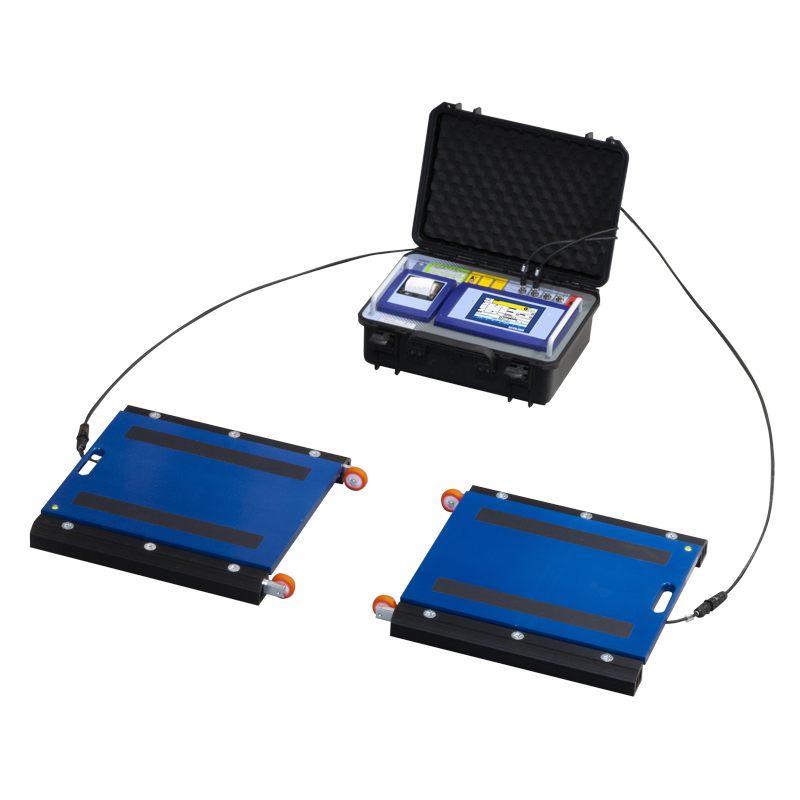

The axle weighing kit consists of 2 WWS weighing pads, a product patented by Dini Argeo.

The loading surface is made of a special high-strength aluminum alloy, designed to be strong and light.

The IP68 protection against water and dust guarantees a long life of the pads even in case of bad weather.

Easy to move and position, thanks to the integrated wheels.

The touch screen weight indicator simplifies the use of the scale and allows the entry of master data. With integrated printer or USB communication port to save the weighs and transport case to protect the weight indicator even in the rain. 10h of autonomy, thanks to the rechargeable battery.

For more technical details, see the data sheet of the indicator 3590ETKR.

Also available in wireless radio version for greater convenience of use.

Certifications and approvals
The system is CE approved according to Directive 2014/31/EU (NAWI, static weighing) for verification of the axle weight.

The system is also OIML R134 certified for in-motion weighing (dynamic) of the whole vehicle, at a maximum speed of 5km / h with a weighing accuracy of 5% (sum of the weight of the axles, depending on the rules in force in the country of use).

The system is approved in Italy as a weighing instrument with automatic operation, for in-motion road vehicle weighing according to Decree no.267995 of 19/9/2019.
The system is also approved for dynamic weighing in various European countries (for further information please contact our sales office).

For use in approved or dynamic applications, the use of leveling modules or burying of pads is recommended.
