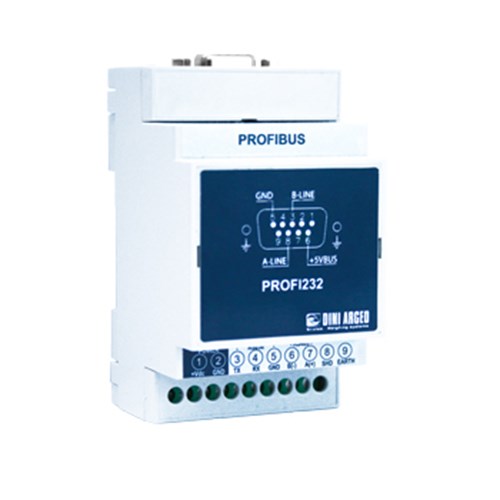

PROFI232 External Profibus Interface
FUNCTIONING
- Complete functionality from the Profibus-DP Slave, in according to IEC 61158
- 16 input bytes / 16 bytes output on SSC interface
- Automatic baud rate selection: from 9600 bit/s to 12Mbit/s
- Wide range of available data depending on the weight indicator to which it is applied
- Available for CPWE and 3590E indicators, in the versions with management of the Profibus protocol
TECHNICAL FEATURES
- ABS case for panel mounting on DIN bar
- Dimensions lxwxh (mm): 53 x 58 x 90
- Power supply: from 12 to 24Vdc
- RS232 and RS485 serial ports on terminal board
- Profibus port on 9 Pin connector
- Board optoisolation against electric or electrostatic discharges
External interface which allows to connect the CPWE and 3590E weight indicators to the Profibus networks. Wide range of available data.
Parts
Available versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
PROFI232-1 | External RS232/RS485/PROFIBUS interface for DIN bar. Connectable to the indicators with Profibus protocol with PCB, terminal blocks, plastic box and UL-marked labels (if applicable). |
Consult |
