PROFIBUS interface for single weighing scale or scales network

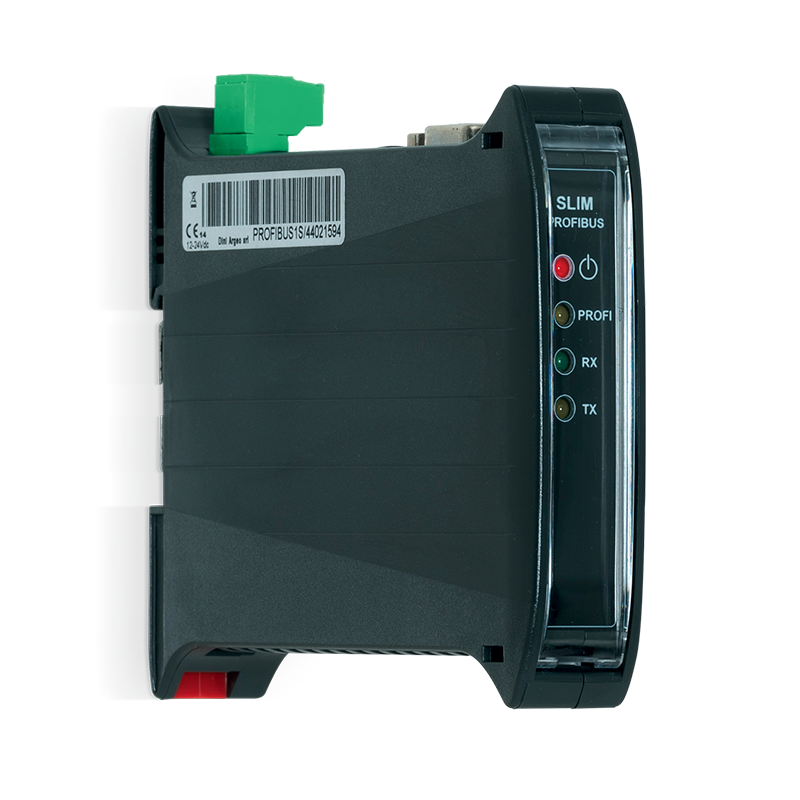

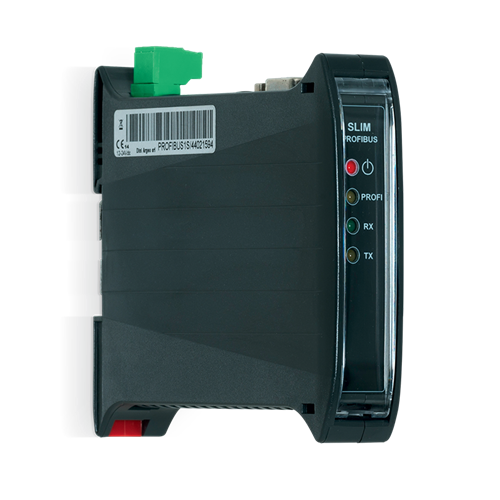

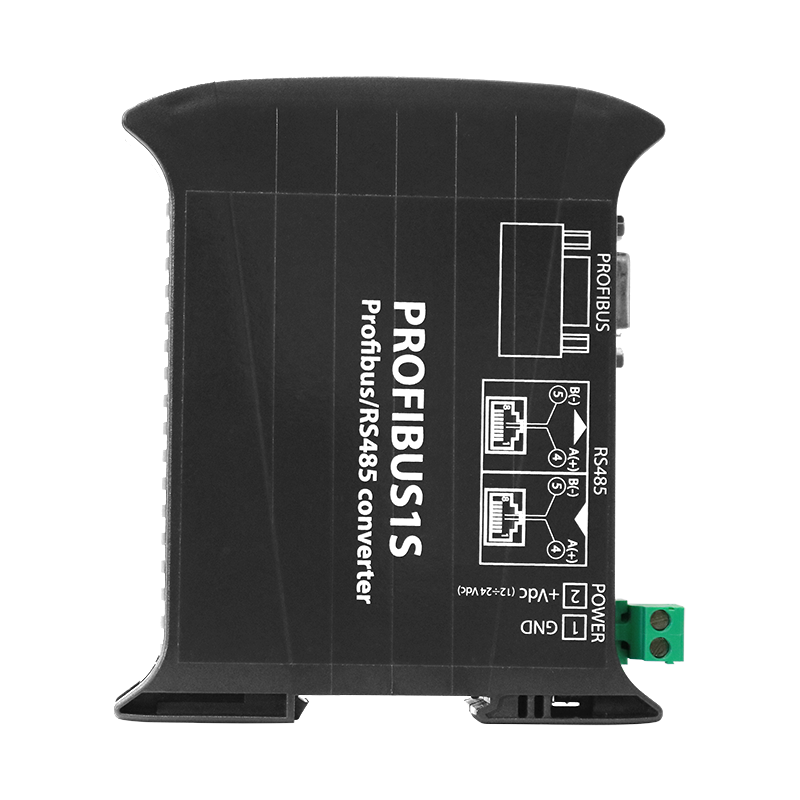

PROFIBUS CONVERTER FOR INDIVIDUAL WEIGHING SCALE:

• This PROFIBUS converter, connected to an individual digital scale or to a selected one from a scales network, transmit the following controls and data by PROFIBUS protocol:
  - NET ,GROSS and TARE weight
  - Weight status (for example; positive, negative, stable, unstable)
  - Error conditions (es. overload, underload)
  - Aliby Memory
  - Calibration
  - Configuration SETUP)
  - DIGITAL INPUT status
  - RELAY OUTPUT status
  - SETPOINT output writings

HUB PROFIBUS FUNCTION, UP TO 16 WEIGHING SCALES:

• This set up permits the simultaneous check of all the weighing scales network data by PROFIBUS protocol.
  In detail:
  - NET weight and GROSS weight of the scales
  - Weight status (for example, positive, negative, stable, unstable)
  - Error condition (es. overload, underload)
  - DIGITAL INPUT status
  - RELAY OUTPUT status
