PROFINET Interface for Single Weighing Scale or Scales Network

Hub PROFINET Function, Up to 16 Weighing Scales

• The HUB configuration allows to monitor simultaneously by PROFINET protocol all the data of a scales network.

  • NET weight and GROSS weight of the scales
  • DIGITAL INPUT status
  • RELAY OUTPUT status
  • Weight status (e.g. positive, negative, stable, unstable)
  • Error condition (e.g. overload, underload)

PROFINET Converter for Individual Weighing Scales

• By using the PROFINET converter for a single scale communication, it is possible to check the following data through the PROFINET protocol:
  • NET, GROSS and TARE weight
  • DIGITAL INPUT status
  • RELAY OUTPUT status
  • SETPOINT output writings
  • Aliby Memory
  • Weight status (e.g. positive, negative, stable, unstable)
  • Error condition (e.g. overload, underload)
  • Calibration
  • Configuration SETUP

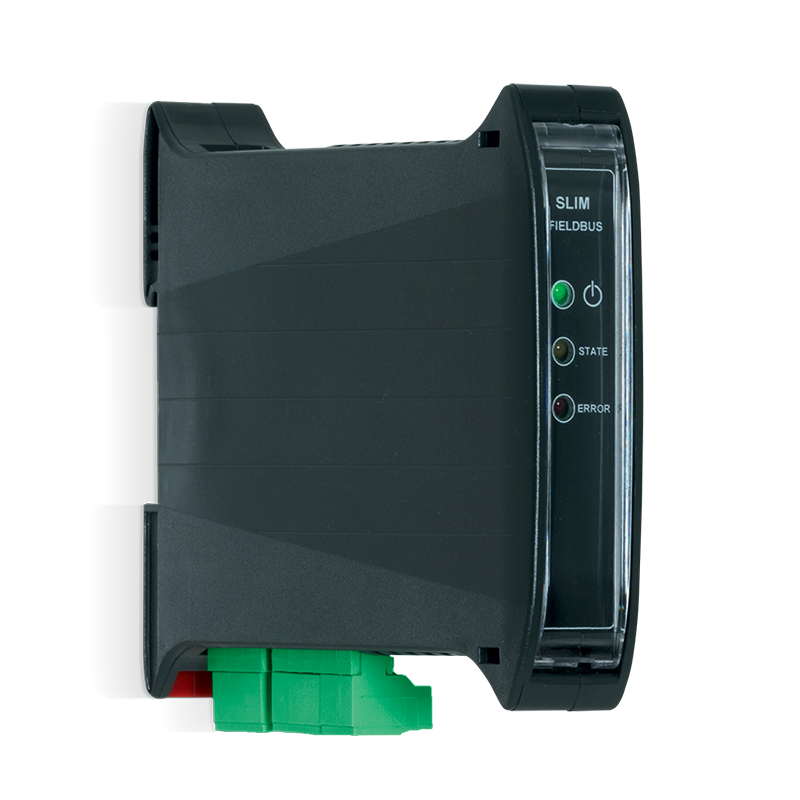

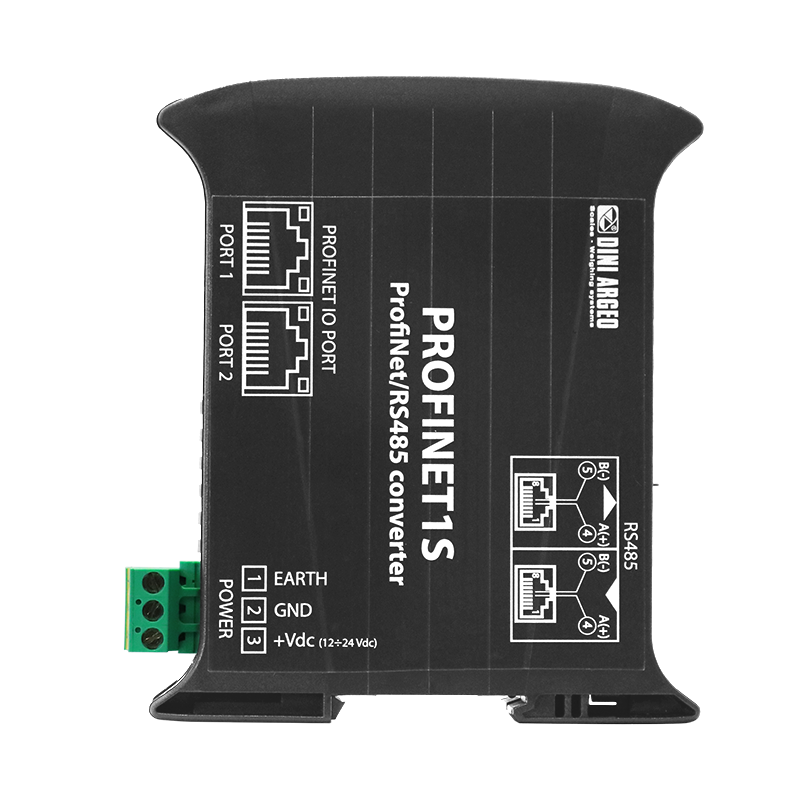

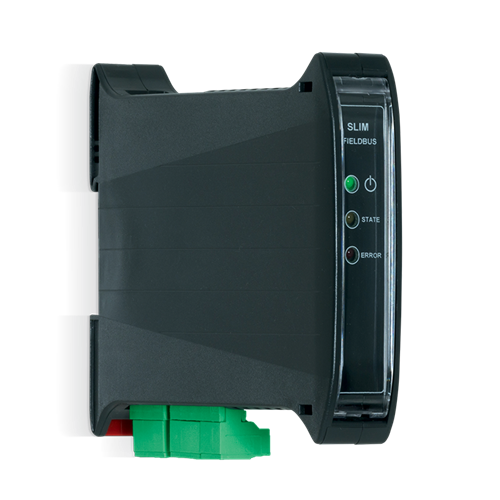

PROFINET Converter

• PROFINET IO slave.
• ABS case for panel mounting on DIN bar.
• Suitable to function with DGT1S weight transmitter. Quick configuration from the transmitter programming menu.
• Serial port RS485, with "quick connect" system, for a rapid connection.
• Power source: from 12 to 24Vdc.
