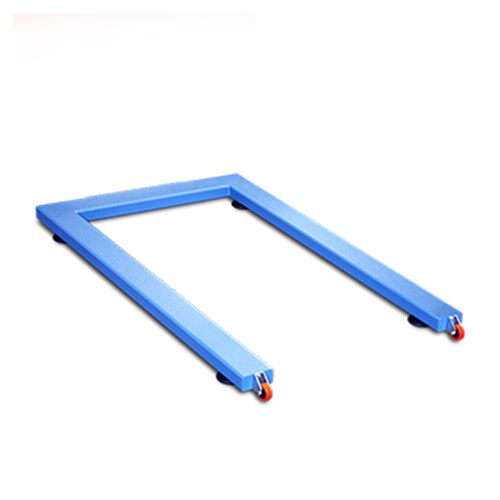

PW Series Pallet-Weighers

Fitted with 4 shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust
Painted steel structure, oven-fire painted RAL 5007 blue
Adjustable, shock-proof jointed feet, and level; also has 2 wheels and handles for moving it
5/15 VDC power supply
Shielded 5m long cable with connectors for connection to the indicator

Stainless Steel Version:

Extremely low profile, only 75mm high
Self-centering articulated feet completely in stainless steel, non-slip, and anti-vibration, adjustable in height
Structure, mechanics, and trinkets in AISI304, and IP68 stainless steel load cells, also ATEX

Options for ATEX Version (Only for models in Stainless Steel):

CCATEX: ATEX certificate for each load cell
JB4QAP: ATEX certified junction box
DCATEXMECH: ATEX declaration for the PLATFORM (for the load cells ATEX declaration see CCATEX-1 code). Option to be offered only if the platform is ordered without the indicator, if so, refer to the chosen weight indicator available certifications

Options Only Available at Time of Order:

Connection to the indicator and calibration with CE-M 3000e single range or 3000e+3000e dual range approval (with indicators of our production)
High resolution model for internal factory use

Accessories:

Indicator support stand

Request More Information

Low profile, easy to move, pallet-weighing module. Suitable for industrial and commercial applications, in which it’s necessary to quickly weigh goods on pallet trucks or lift trucks. Standard version is with approved load cell. Available also in the Ex II 2GD IIB ATEX version in stainless steel.

Available Versions

Code	l x w x h (mm)	Nr. of cells	Max (kg)	d (g)	M (g*)	M 2R (g)*	d HR (g)*
PW6	1260x800x85	4x500kg	600	100	200	100-200	50
PW15-1	1260x800x85	4x1000kg	1500	200	500	200-500	100
PW30-1	1260x800x85	4x2000kg	3000	500	1000	500-1000	--
PWI6	1260x800x75	4x500kg	600	100	200	100-200	50
PWI15-1	1260x800x75	4x1000kg	1500	200	500	200-500	100
PWI30-1	1260x800x75	4x2000kg	3000	500	1000	500-1000	--

(*) Divisions obtainable only with the relative options, in combination with Dini Argeo weight indicator.

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

Parts

Available Versions

Part #	Description	List Price	Cart / Quote
PW6	Mobile pallet-weighing platform with 600 kg capacity, 100 g division, 1260x800 mm size, h= 85 mm, painted steel structure. 5 m shielded cable.	Consult	View
PW15-1	Pallet-weighing platform Max=1500kg, d=200g, 1260x800mm h= 85 mm, painted steel structure. 5 m shielded cable.	Consult	View
PW30-1	Pallet-weighing platform Max=3000kg, d=500g, 1260x800mm h= 85 mm, painted steel structure. 5 m shielded cable.	Consult	View
PWI6	Mobile pallet-weighing platform with 600 kg capacity, 100 g division, 1260x800 mm size, h= 75 mm, stainless steel structure. 5 m shielded cable.	Consult	View
PWI15-1	Stainless steel pallet-weighing platform, Max=1500kg, d=200g, 1260x800mm h= 75mm. 5 m shielded cable.	Consult	View
PWI30-1	Stainless steel pallet-weighing platform, Max=3000kg, d=500g, 1260x800mm h= 75mm. 5 m shielded cable.	Consult	View

Options

Calibration service with weight indicator

	Part #	Description	List Price	Cart / Quote
	DINICAL	Connection to a Dini Argeo indicator and calibration. NET PRICE (*).	Consult	View
	DINICAL-DRC	Connection to a Dini Argeo indicator and calibration. NET PRICE.	Consult	View

Legal for trade approval , class III or IIII, with Dini Argeo indicator (only at time of order)

	Part #	Description	List Price	Cart / Quote
	ECEM	3000e legal for trade approval, for single platform/scale. NOTE: Depending on the product, the ECEM approval service may require DINICAL calibration service. Check to see if DINICAL is in the product options.	Consult	View
	ECEM2	CE-M single platform legal for trade multi range approval.	Consult	View

High resolution (d HR)(only at time of order)

Part #	Description	List Price	Cart / Quote
EHR	High resolution model for internal factory use.	Consult	View

IP68 protection

	Part #	Description	List Price	Cart / Quote
	ETIP68	IP68 connection fitted with specific cable, fairleads and connectors.	Consult	View

Floor columns

Part #	Description	List Price	Cart / Quote
CSP38I-1	AISI 304 stainless steel column 450x450mm, h=917mm, O 38mm. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38	Stainless steel column 450x450mm, h=917, O 38mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View
CSP38D	Stainless steel column 350x350mm, h=750mm. Painted steel base. For the indicators of the DINI ARGEO and SCALE HOUSE range.	Consult	View

Protection for junction box/electronic circuits

	Part #	Description	List Price	Cart / Quote
	GELBOX	Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.	Consult	View

Options for ATEX version

Part #	Description	List Price	Cart / Quote
CCATEX-1	Optional ATEX version for single load cell. Marking: ATEX II 1G Ex ia IIC T6 (Ta -20ö+40øC) TX (Ta -20ö+65øC) Ga and ATEX II 1D Ex ta IIIC TXøC (Ta -20ö+40øC) TXøC (Ta -20ö+65øC) Da IP65. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View
JB4QAP	Equalisation box for stainless steel pallet-weighing scales for hazardous areas. Protection modes: ATEX II 2G Ex ib IIC T6 Gb for gases, ATEX II 2D Ex tb IIIC T115øC Db IP65 for dusts. Complete with manual and ATEX CE CONFORMITY DECLARATIONS (available in EN, DE, FR and IT). (Only suitable with stainless steel version)	Consult	View
DCATEXMECH	ATEX version for the PLATFORM / LOAD CELL MOUNTING KIT for zone 1/21 (for the load cells ATEX declaration see CCATEX code). Option to be offered only if the platform is ordered without the indicator, otherwise refer to the available certifications for the chosen weight indicator. Provided with safety instructions and ATEX EU declaration of conformity (EN, DE, FR, ES and IT).	Consult	View

Calibration service with Dini Argeo indicator (only at time of order)

	Part #	Description	List Price	Cart / Quote
	CT6	ISO 17025 calibration certificate from 301 to 1500 kg for single scale/platform. For precision and industrial scales, crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View
	CT7	ISO 17025 calibration certificate from 1501 to 3000 kg for single scale/platform. For precision balances, industrial and crane scales. The certificate is provided in digital format (pdf) and sent by e-mail.	Consult	View

Related Products

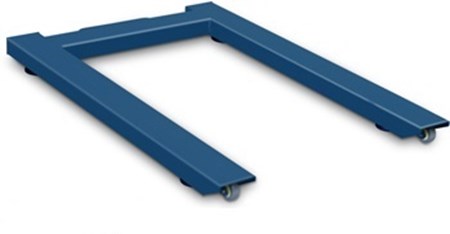

FPW Series Pallet-Weighers
