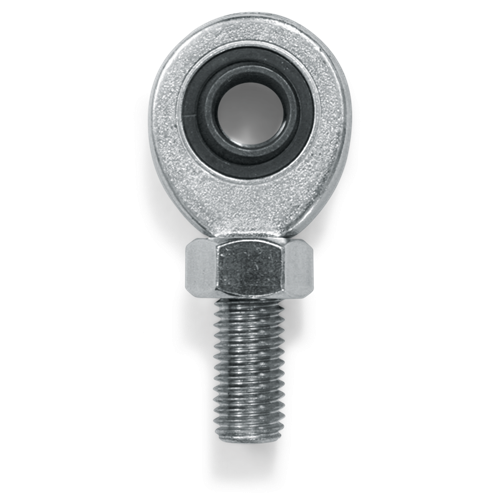

RBJ Series Mounting Kit in Galvanized Steel for STU/STG/STFU Tension Load Cells
- Galvanized steel construction.
- Steel / Bronze contact surfaces of the joint.
- Fitted with locking nut.

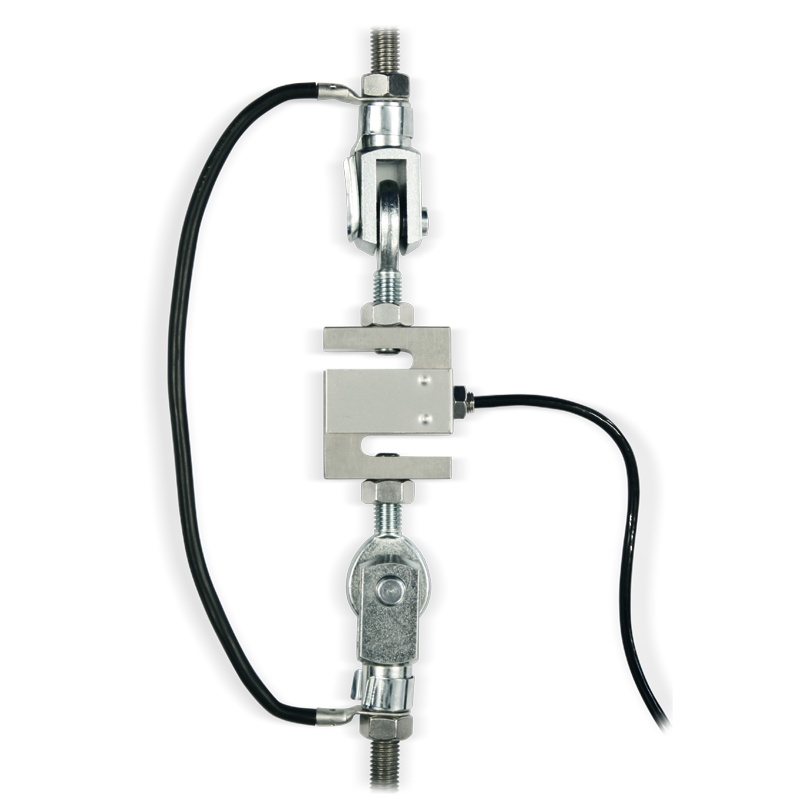

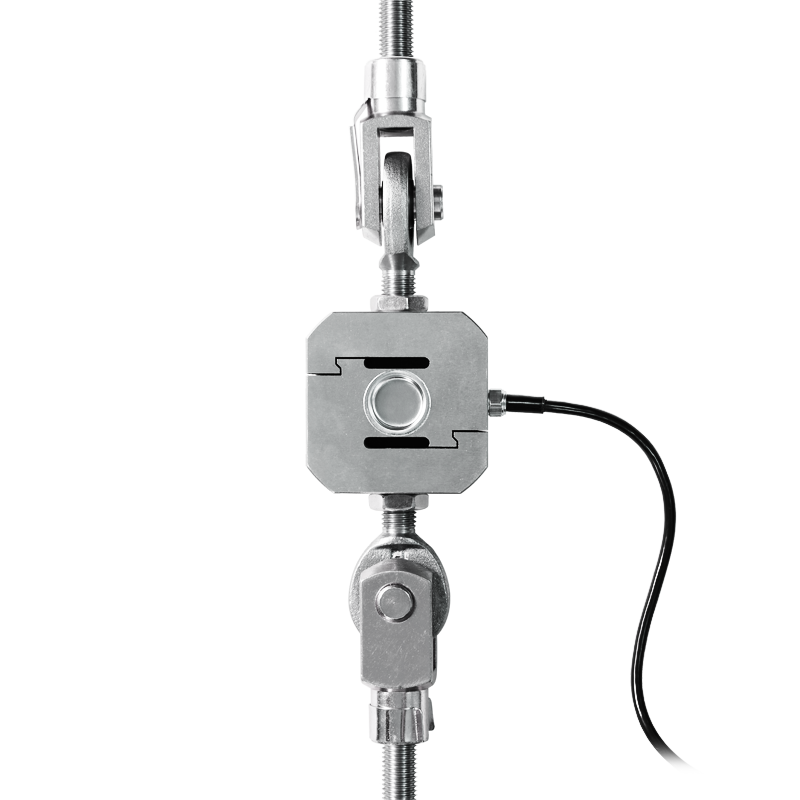

Articulated joints for the correct installation of the tension load cells.
Resources / Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| All Around Dini Argeo Weighing Solutions for Logistics and Warehouses |  Email |
Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|Ex Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Weighing Axle Platforms and Indicators|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Assembly Kit Load Cells|Ex Load Cells|Hygienic Load Cells | Articles | |
| How to Choose the Best Load Cell for Your Needs | Email |
All Load Cells | Articles |
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
RBJM8 | M8 articulated rod-end ball joint. Maximum lifting capacity of 600kg. For STG100 and SL up to 50kg capacity. |
Consult |
|
|
|
RBJM12 | M12 articulated rod-end ball joint. Maximum lifting capacity of 1000kg. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
Consult |
|
|
|
RBJM16 | M16 articulated rod-end ball joint. Maximum lifting capacity of 2000kg. For STFC2000 and STU2000-1K. |
Consult |
|
|
|
RBJM24 | M24 articulated rod-end ball joint. Maximum lifting capacity of 5000kg. For STFC5000 and STFC10000. |
Consult |
Options
Mounting kits
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
CLVM8 | M8 clevis fitted with pin, for combination with RBJM8. For STG100 and SL capacity up to 50kg. |
Consult |
|
|
|
CLVM12 | M12 clevis fitted with pin, for combination with RBJM12. For STG500, STG1000 and SL capacity from 100 to 1000kg. |
Consult |
|
|
|
CLVM16 | M16 clevis fitted with pin, for combination with RBJM16. For STFC2000 and STU2000-1k. |
Consult |
|
|
CLVM24 | M24 clevis fitted with pin, for combination with RBJM24. For STFC5000 and STFC10000. |
Consult |
