RCD Series, Dini Argeo Digital Column Load Cells, Stainless Steel

METROLOGICAL:

  • Rated capacity (Cn): 30/40t
  • Combined error: ± 0,014 %Cn
  • Temperature effect on zero: 0,0016 %Cn/°C
  • Temperature effect on sensitivity: 0,0012 %Cn/°C
  • Creep error (30 min.): 0,021 %Cn

LEGAL METROLOGY OIML R60

  • Accuracy class: C4
  • Max. number of intervals (nmax): 4000e OIML
  • Minimum verification interval (vmin): 10000
  • Z= Emax/(2xDR): 4000

ELECTRICAL

  • Nominal range of excitation voltage: 10 - 16Vdc
  • Rated output: 200000d
  • Current consumption: 35mA
  • Conversion type: Delta-sigma
  • Internal resolution: 24 bit
  • Converter rate: max. 100 conv./sec.
  • RS485 interface communication rate: 4800/19200 bit/sec.
  • Protection against electrostatic discharge according to IEC 61326-1

GENERAL

  • Service temperature range: -20 ~ +60 °C
  • Compensated temperature range: -10 ~ +40 °C
  • Safe load limit: 150% Emax
  • Ultimate overload: 300% Emax
  • Protection degree IP68
  • Load cells with stainless steel body
  • 6-core armoured cable, PVC sheath, 18m length, 9mm diameter.
  • Nickel plated steel cable gland.
  • Armoured Anti Rodent Cable with Stainless Steel Armour.
  • Self-centring spherical bases.
  • Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.
Request More Information
RCD

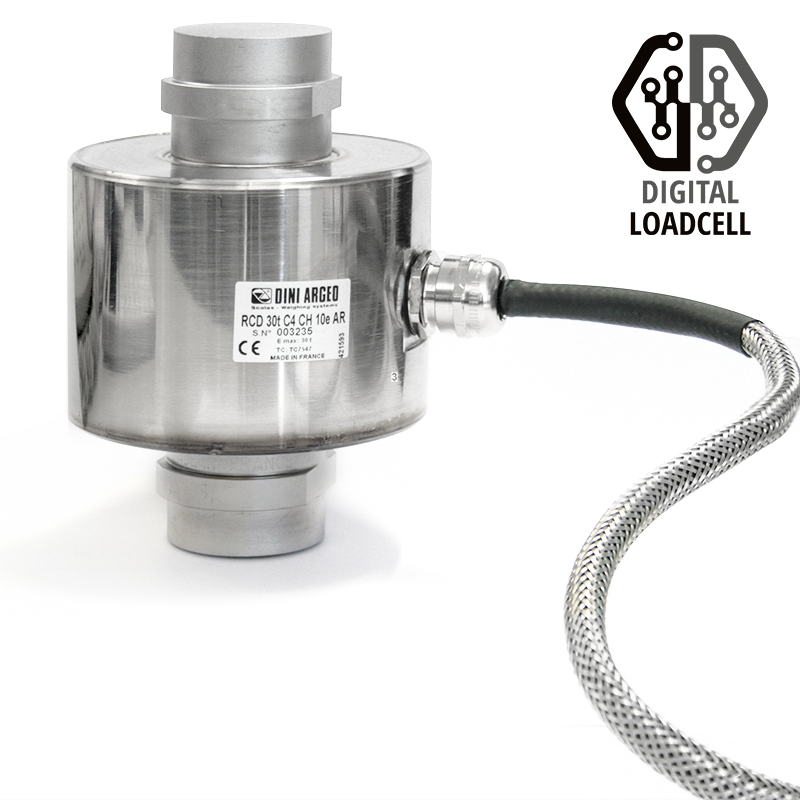

Digital version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in stainless steel, with IP68 protection, 4000 divisions, fitted with "rodent proof" armored cables.

Capacities (kg): 30000, 40000, 50000

OIML R60, C4 precision class

Load cells with stainless steel body. Degree of protection IP68

18 m armored Rodent Resistant Cable, with standard stainless steel armor

Low profile height of only 130 mm

Main certifications: OIML R60, Australian legal for trade certificate of approval (NMI S842)



RCD cell connections
Colour
Function
Input
WHITE
INPUT +
BROWN
INPUT -
Input signal
GREY
A+
PINK
B-
Output signal
GREEN
A+
YELLOW
B-

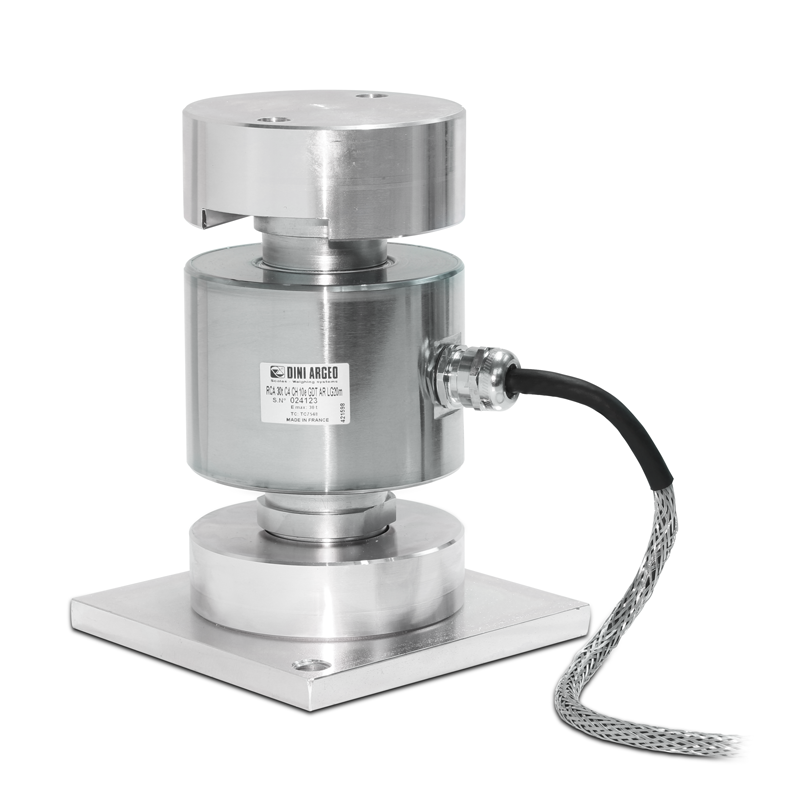

  • The KRCA kit allows a correct installation of the RCD load cells below the weighbridge plate.
  • The kit consists of an upper cup with anti-rotation system, a lower cup and a two-hole plate for easier and faster fixing. All components are made from nickel-plated steel.
  • Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
  • The cups are also fitted with triple function integrated washers:
    - they keep lubricating grease in its place.
    - they simplify the proper positioning and levelling of the cell and support it during installation/maintenance.
    - they protect the system by preventing dirt and water from accumulating on the bottom of the cup, thus maintaining the correct oscillation and mechanical compensation of the load cells over time.

Code Max
(kg)
RCD30C4  30000
RCD40C4  40000
RCD50C4  50000
