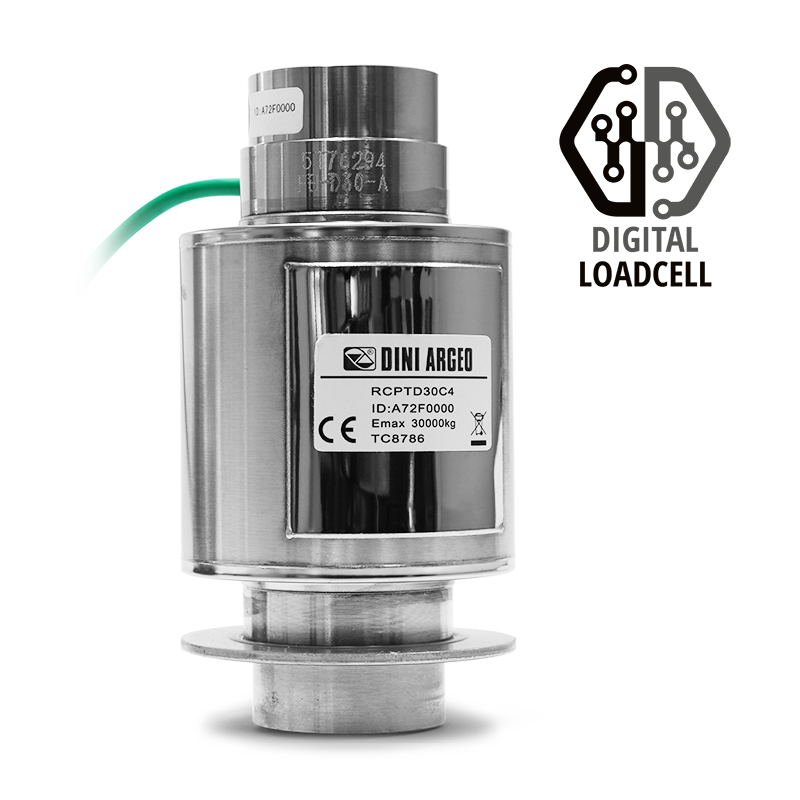

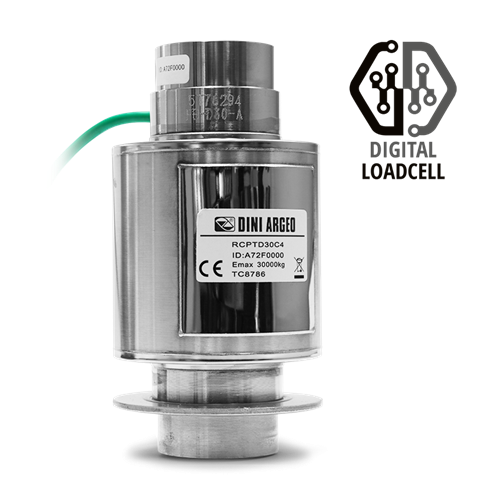

RCPTD Series Dini Argeo Digital Column Load Cell

Available for 3590e touch screen indicator
C4 precision class
Special alloy steel body with stainless steel external casing; laser soldering
Ip68 protection rating
Capacity 30000kg
Shielded 18m connection cable
Test certificate available upon request
Approved with 3590 touch screen indicator for legal-for-trade weighing systems

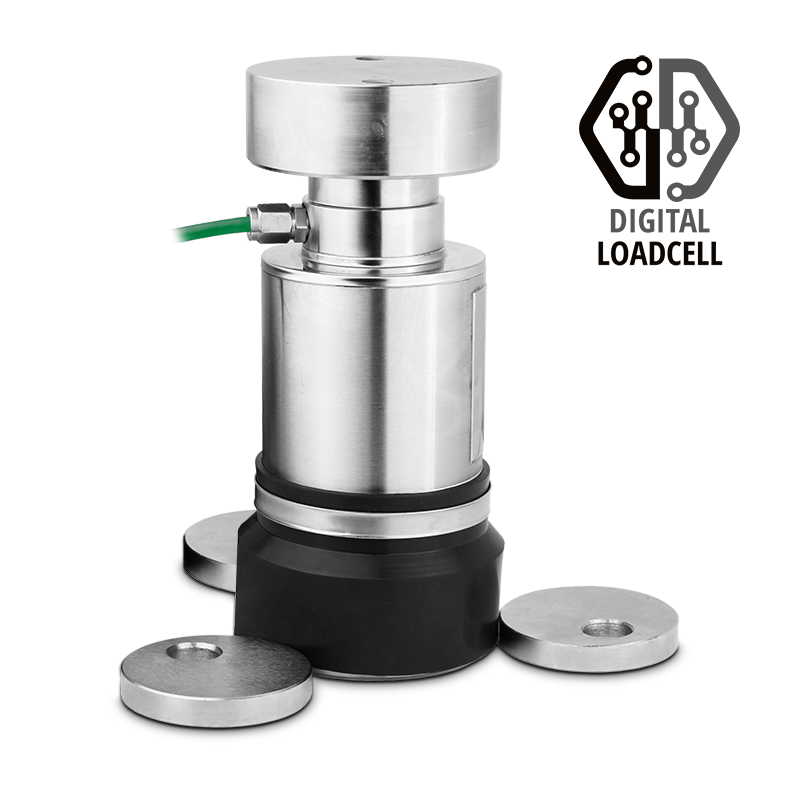

Fitted with self-aligned articulated joints, self-centering plates and protection washer

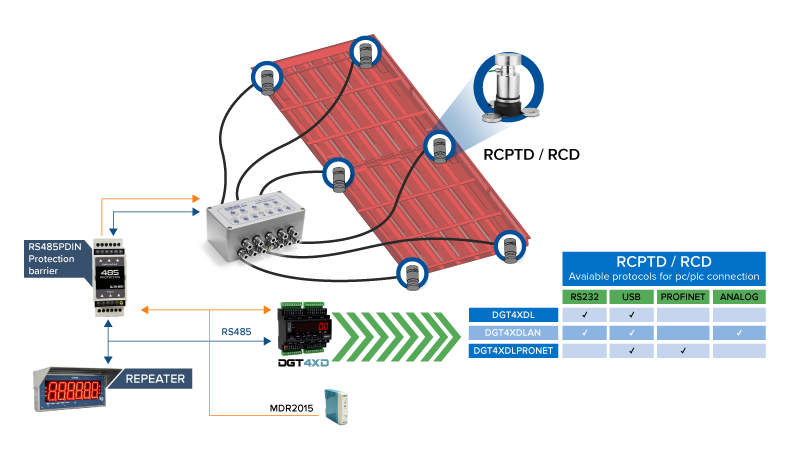

Digital column load cells ideal for approved CE-M weighbridges or silos and tanks.

Capacities (kg): 30000.

OIML R60, C4 precision class.

Special allow steel body with stainless steel external casing; manufactured with laser soldering. IP68 protection.

Resolution for nominal load:
60.000d

Combined error on nominal load:
± 0,01%.

Compensated temperature range:
-10 °C / +40° C

Operating temperature range: -30 °C / +70° C

Power supply tension:
From 10 to 18 VDC

Conversion:
24 bit

Connection:
RS485

Admissible load:
150% F.S.

Shielded cable:
4 poles, 5mm diameter.

Main Certifications

OIML R60

Australian legal for trade certificate of approval (NMI S837)

Code	Max (kg)
RCPTD30C4-2	30000

Resources / Downloads

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles
How to Choose the Best Load Cell for Your Needs		Email	All Load Cells	Articles

	Part #	Description	List Price	Cart / Quote
	RCPTD30C4-1	Column approved digital load cell, C4, Max=30000kg. Stainless steel with nickel-plated steel body, IP68 protection rating. Consisting of self-aligned articulated joints, self-centering plates and protection washers.	Consult	View

Part #	Description	List Price	Cart / Quote

Part #	Description	List Price	Cart / Quote
JB10QD-1	RS485 equalisation box for connection with up to 10 digital load cells. Reinforced polyester box, with 10 + 1 cable glands and surge arresters.	Consult	View
GELBOX	Anti condensation, insulating, and sealing gel. Useful for the protection of the electronic circuits of the weighing system, even in conditions of prolonged immersions in time. Pack of 300ml.	Consult	View
RSCBTW	4-core twisted shielded cable (2x2x0.34 mmý), for RS485 communication or analogue output. Polyolefin inner sheath. Tinned copper braid shielding. Outer sheath PVC, diameter 7mm. Temperature range: -30 / +80 øC. Minimum bending radius >/= 6 x O.D. _/m	Consult	View

Part #	Description	List Price	Cart / Quote
3590ET8D	Touch Screen indicator with AF03 firmware , suitable for the connection of digital load cells connection. ABS case. 8" colour display. Internal power supply for digital load cells. RS485 serial port with lightning and surge protection circuit.	Consult	View
RS485C	Built-in RS485 interface (mounting and cable gland excluded).	Consult	View
RS485OPTO	Built-in optoisolated RS485 interface (mounting and cable gland excluded).	Consult	View
C2IN	Set of 2 optoisolated inputs (mounting and cable gland excluded).	Consult	View
C4OUT	Set of 4 optoisolated outputs (mounting and cable gland excluded).	Consult	View
