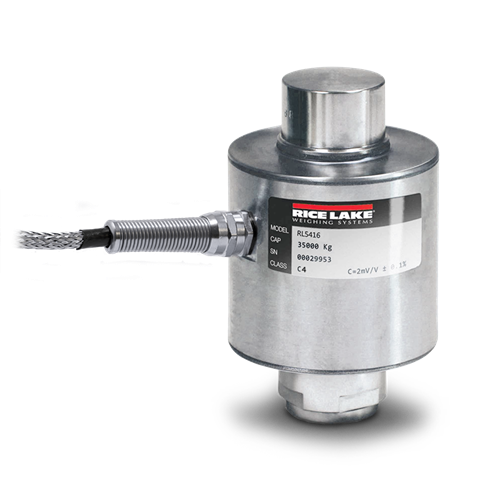

RL5416 Series, Rice Lake Canister Load Cell, Stainless Steel
Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
CAPACITIES: 20t, 30t, 40t, 50t.
OIML R60. C4 precision class.
Stainless steel body. IP69K Protection Degree.
20 m armoured rat-proof cable with stainless steel armouring as standard
h= 150mm.
RL5416 Series Specifications
|
Rated capacity: Combined error: Creep error (after 30 min.): Temperature effect on zero: Temperature effect on sensitivity: Non-linearity error: Non-repeatability error: 0.006%F.S. OIML R60: |
Gas dischargers to protect against atmospheric discharges Power supply: Rated output at F.S.: Input resistance: Output resistance: Insulation resistance: Operating temperature: Compensated temperature for homologation: Storage temperature limits: |
Normal service: Maximum load / Safe load: Ultimate overload: IP69K protection degree Stainless steel body 6-core cable with stainless steel shield, length 20 m, diameter 6mm Nickel plated steel cable gland with protective spring Self-centering spherical bases Equipped with anti-rotation system, to be combined with 173793 cups for proper operation WARNING: |
Connection
| Cable Color Code | |
|---|---|
| RED |
INPUT +
|
| BLACK |
INPUT -
|
| GREEN |
OUTPUT +
|
| WHITE |
OUTPUT -
|
| YELLOW |
SENSE +
|
| BLUE |
SENSE -
|
| METAL |
Shield
|
Installation Kit
- The 173793 kit allows a correct installation of the RL5416 load cells below the weighbridge plate.
- The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.
