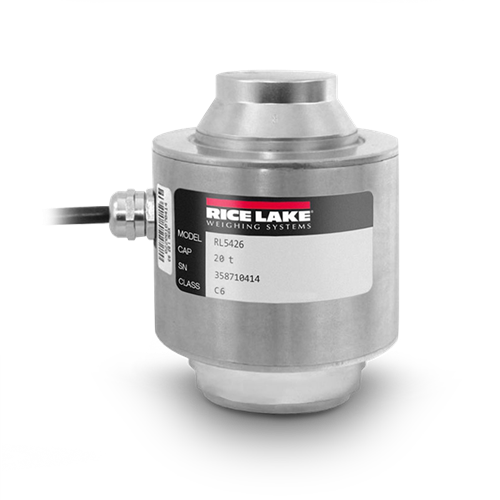

RL5426 Series, Rice Lake Canister Load Cell, Stainless Steel

Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 6000 divisions.

Request More Information
RL5426

CAPACITIES: 20 t, 30 t, 40t, 50 t.

OIML R60. C6 precision class.

Stainless steel body. IP69K Protection Degree.

20 m Cable.

h= 118,5 mm.

Rated capacity (FS):
20t, 30t, 50t

Combined error:
0,015 %F.S

Creep error (after 30 min.):
0,01 %FS

Temperature effect on zero:
0,01 %F.S./5°C

Temperature effect on sensitivity:
0,008 %F.S./10°C

OIML R60:
Vmin= Emax/18000
Accuracy class: C6
Max. number of intervals: 6000e OIML

Gas dischargers to protect against atmospheric discharges

Power Supply:
5÷15 Vdc

Rated output at F.S.:
2 ± 0.1% mV/V

Input resistance:
800 ± 3Ω

Output resistance:
700 ± 3Ω

Insulation resistance:
5000MΩ

Operating temperature:
-35 ~ +70 °C

Compensated temperature for homologation:
-10 ~ +40 °C

Storage temperature limits:
-40° ~ +80°

Normal service:
120% F.S.

Maximum load / Safe load:
150% F.S.

Ultimate overload:
300% F.S.

IP69K protection degree

Stainless steel body

6-core cable, l= 20 m, 6,5mm diameter

Nickel plated steel cable gland

Self-centring spherical bases

Equipped with anti-rotation system, to be combined with 173798 cups for proper operation

WARNING:
For JB10Q/JB10QD: 1200ml of gel required



Cable Color Code
RED
INPUT +
BLACK
INPUT -
GREEN
OUTPUT +
WHITE
OUTPUT -
YELLOW
SENSE +
BLUE
SENSE -
METAL
Shield

  • The 173798 kit allows a correct installation of the RL5426 load cells below the weighbridge plate.
  • The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.

Resources/Downloads

Title View Email Category Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses Email Pallet Truck Scales|Pallet Scales|Pallet Weighers|Electric Pallet Truck Scales|ATEX Pallet Truck Scales|Hygienic Pallet Truck Scales|Pallet Weighing|Weighing Forks|Hydraulic Weighing Kits|Counting Scales|Bench Scales|Axle Weighing Scales|In-Motion Axle Scales|Dynamic Axle Weighing|Platforms, Indicators and Accessories|High Resolution Load Cells|Off Center Load Cells|Bending Beam Load Cells|Shear Beam Load Cells|Double Shear Beam Load Cells|Compression Load Cells|Tension Load Cells|Column Load Cells|Mounting Kits|Hygienic Load Cells Articles

Parts

Available Versions

Part # Description List Price Cart/Quote
177965 RL5426 Canister load cell, C6 approved, Max= 40t.

Consult

{#Assembly kits}

Options

{#Junction Box / Boards - Cell cables}

Part # Description List Price Cart/Quote
JB10Q Equalisation box for connection with up to 10 analogue load cells. Reinforced polyester box, with 10 + 1 cable glands. With surge arresters, PCB, Terminal block, plastic box and UL marked labels (if applicable).

Consult
LCCB Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).

Consult
LCCBA Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).

Consult
