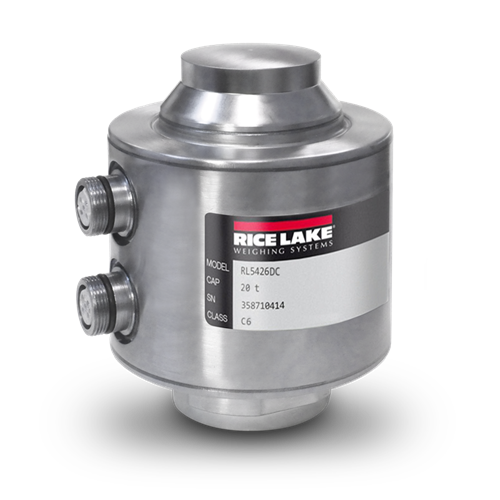

RL5426DC Series, Rice Lake Digital Canister Load Cells, in Stainless Steel with Connectors

Rated capacity (FS):
30t, 40t

Combined error:
0,015 %F.S

Creep error (after 30 min.):
0,01 %FS

Temperature effect on zero:
0,02 %F.S./10°C

Temperature effect on sensitivity:
0,008 %F.S./10°C

Non-linearity error:
0.01%F.S.

Non-repeatability error:
0.006%F.S

OIML R60:
Vmin= Emax/18000
Accuracy class: C6
Max. number of intervals: 6000e (EC Test Certificate, according to OIML R60 (2000))

Gas dischargers to protect against atmospheric discharges

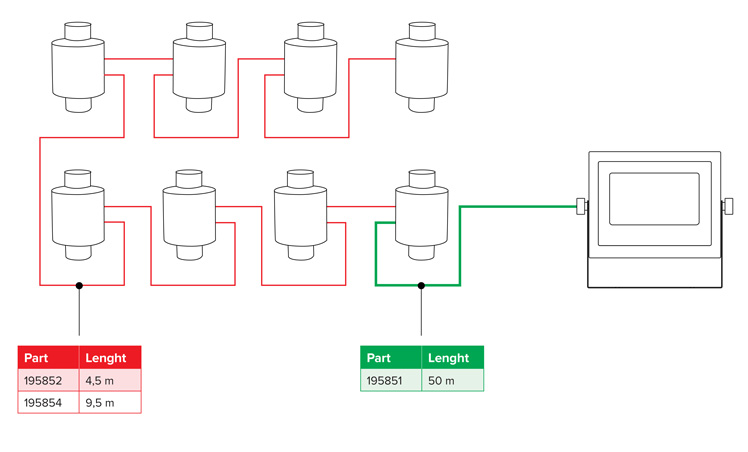

Double connector for load cells interconnection and weight indicator connection, without junction box.

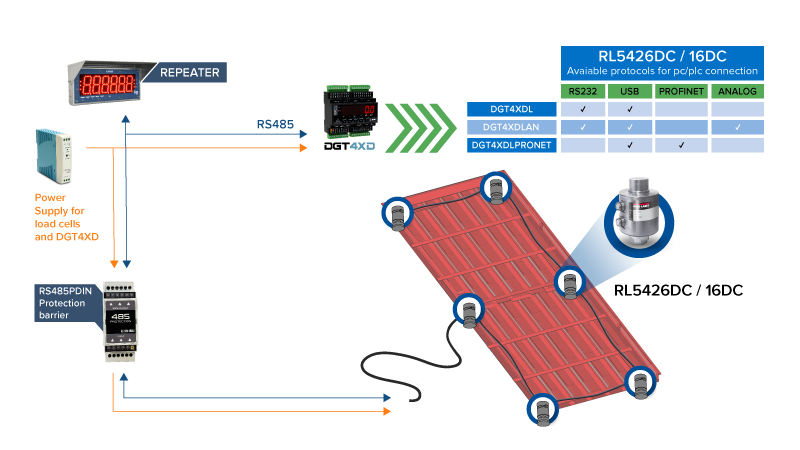

Halfduplex RS485 communication technology

Rice Lake communication protocol

Power supply:
8÷15 V (AC or DC)

Rated digital output:
60000 d

Current consumption:
35 mA

Internal resolution:
24 bit

Converter rate:
Max. 40 conv./sec.

RS485 communication speed:
Max 100kHz

Operating temperature:
-35 ~ +70 °C

Compensated temperature:
-10 ~ +40 °C

Storage temperature limits:
-40 ~ 80 °C

Normal service:
120% F.S.

Maximum load / Safe load:
150% F.S.

Ultimate overload:
300% F.S.

IP68 protection degree

Stainless steel body

4-core RS485 cable as optional with stainless steel shield, diameter 7mm

Self-centering spherical bases

Equipped with anti-rotation system, to be combined with 173798 cups for proper operation
