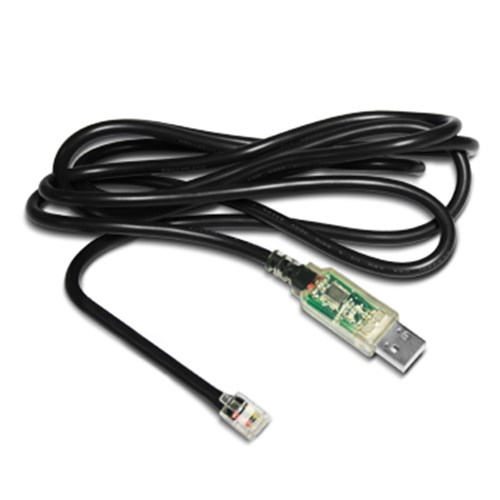

RS232/RS485 - USB converter cable
- Length: about 1,5m
- Connectors:
- RJ11 for the quick connection to the RS232 serial port, standard fitted on the female connector available on all Dini Argeo indicators;
- DB9 (RSCBUSBKR)
- USB on the PC side. - PC minimum requirements:
- Windows 7 or greater;
- 2.0 USB port or greater;
- communication drivers integrated in the Dinitools software.
RS232/RS485 - USB converter cable, essential for the configuration and the maintenance of Dini Argeo weight indicators. The connection is fast and easy, thanks to the RJ11 quick connector on the scale side.
Parts
Available Versions
| Part # | Description | List Price | Cart / Quote | |
|---|---|---|---|---|
|
RSCBUSB-1 | USB PC/RS232 converter cable, l=1,5m. USB/RJ11 connector. |
Consult |
|
|
RSCBUSBPG | USB PC/RS232 converter cable, l=1,5m, with PG9. USB/RJ11 connector. For the connection to weight indicators with IP65 and IP68 protection system. |
Consult |
|
|
RSCBUSB3P | PC/RS232 USB converter cable, l=1,5m. USB connector to PC side, conductor-end sleeves on the scale side. PG9 cable gland included. |
Consult |
|
|
RSCBUSBKR | USB PC/RS232 DB9 converter cable, l=1,5m. USB/DB9 connector. |
Consult |
|
|
RSCBUSB485 | USB cable converter PC/RS485, l=1,5m. With metallic PG9 cable gland. To be combined with an indicator fitted with optional or standard RS485 output. |
Consult |
