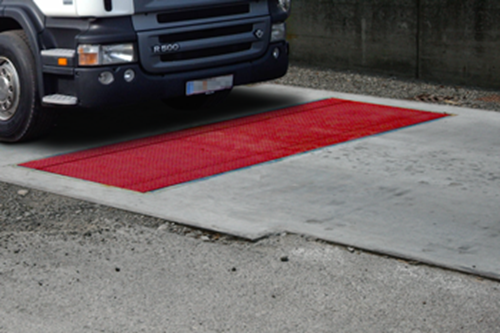

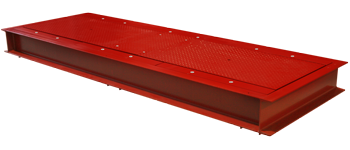

Flush-Floor Platform for Axle Weighing Stations

Main applications:
The axle weighing system is ideal to:
- Check the weight of each axle or of all the various sums of weights and detect any overloads.
- Check the weight of the material transported by the vehicle and carry out simple checks on incoming/outgoing goods.

Stationary and In-Motion Weighing:

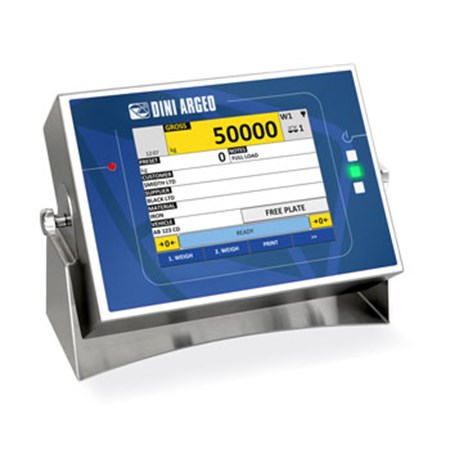

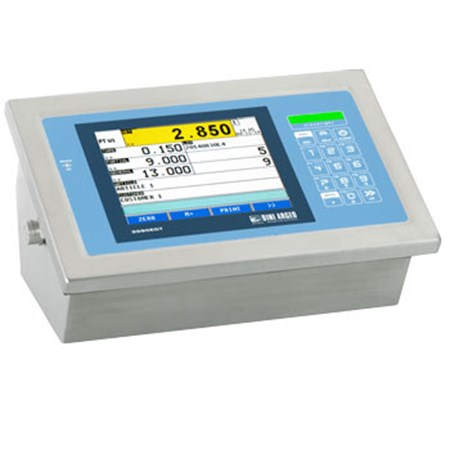

Depending on the combined weight indicator, the axles of the vehicle can be weighed while stationary or in motion:

- The stationary weighing function allows the vehicle to be weighed by adding up the weights of the individual axles.
As well as being the most cost-effective way to weigh, it avoids penalties due to axle overloading.
- The in-motion weighing function allows you to minimize weighing time.
The weight is acquired as the vehicle passes over the scale, without the need to stop for weighing each axle.
In-motion weighing is particularly suitable for those who need to weigh frequently during the day.

Certifications and Approvals:
The system is CE approved according to Directive 2014/31/EU (NAWI, static weighing) for verification of the axle weight.
The system is also OIML R134 certified for in-motion weighing (dynamic) of the whole vehicle, at a maximum speed of 5km / h with a weighing accuracy of 2% (sum of the weight of the axles, depending on the rules in force in the country of use).
The system is approved in Italy as a weighing instrument with automatic operation, for in-motion road vehicle weighing according to Decree no.267995 of 19/9/2019.
The system is also approved for dynamic weighing in various European countries (for further information please contact our sales office).
