SBFI Stainless Steel Feet for SBxx Load Cells up to 2500 kg

Applicable on SBxx series’ shear beam load cells up to 2500kg
M12 thread
Designed especially for use on 4-cell platforms
Perfect decoupling of the lateral forces during the weighing operation
Extremely compact and simple to install, minimizing the height of the platform
Adjustable height
Completely AISI304 stainless steel construction
Non-slip rubber built into the base of the foot
To combine with BLKM12I bush

HD View

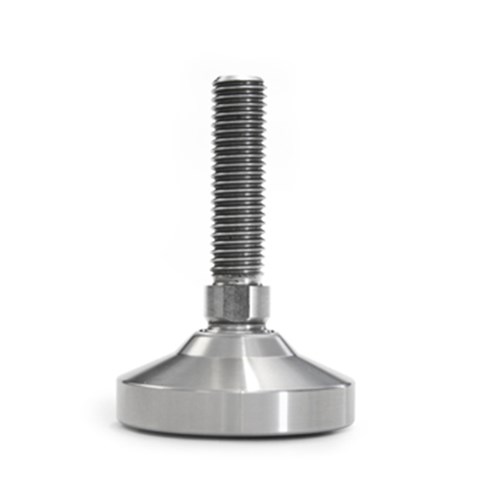

Stainless steel articulated feet designed in order to obtain the best weighing performances, particularly suitable for creating scales with 4 load cells. Extremely compact and easy to install, the feet minimize the height of the platform and ensure a perfect decoupling of the lateral forces during the weighing operation.

Resources / Downloads

Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|Ex Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Weighing Axle Platforms and Indicators\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Assembly Kit Load Cells\|Ex Load Cells\|Hygienic Load Cells	Articles

Parts

Available versions

	Part #	Description	List Price	Cart / Quote
	SBFI-1	Stainless steel articulated foot with 50 mm non-slip rubber support base. Threading M12 x 1.75 x 43. For SBxx cells up to 2500kg . To combine with BLKM12I bush.	Consult	View

Options

Locking bush for SBX/SBK cells

	Part #	Description	List Price	Cart / Quote
	BLKM12I	Stainless steel M12 bush.	Consult	View
