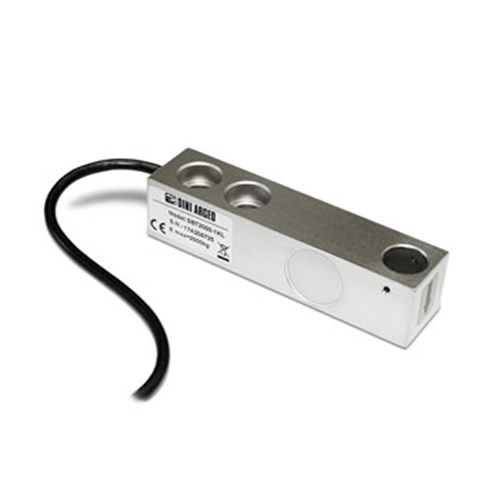

SBT-1KL Series Shear Beam Nickel-Plated Load Cells, from 500kg to 2500kg

C3 precision class
Nickel-plated construction
Potted seal, IP67 protection
Max. Capacities from 500 to 2500 kg
Shielded connection cable
Test certificate available upon request

Request More Information

HD View

Capacities (kg): 500, 1000, 2000, 2500

OIML R60 approved, NTEP, ATEX 3GD

Nickel-plated steel. IP67 protection

Output Resistance: 1000 Ohm

Dini Argeo nickel-plated approved load cells, with low-power 1000 Ohm output resistance for mobile battery applications.

The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.

Specifications

Minimum load cell verification interval:
Vmin = EMax / 10.000

Maximum number of verification intervals:
nLC = 3000

Combined error:
0,017% of Full Scale Output (F.S.)

Nonlinearity:
± 0.02% FS

Hysteresis:
± 0.02% FS

Repeatability:
± 0.01% FS

Full Scale Output:
2mV/V ± 0.5%

Zero balance:
± 1% FS

Compensated Temperature Range:
-10°C/+50°C.

Operating Temperature Range:
-20°C/+60°C.

Creep error after 30 minutes:
<0,02% F.S.

Maximum tolerated excitation voltage:
15 Vdc

Input Resistance:
380 ± 20 Ohm

Output Resistance:
350 ± 5 Ohm

Insulation Resistance:
>5000 MOhm

Safe Overload:
120% F.S.

Ultimate Overload:
300% F.S.

Shielded cable:
6-wire shielded cable, 3.5m long, 5 mm diameter

Wiring Code

Colour	Function
--	SHIELD
YELLOW	OUTPUT +
GREY	SENSE +
BROWN	INPUT +
WHITE	OUTPUT -
GREEN	INPUT -
PINK	SENSE -

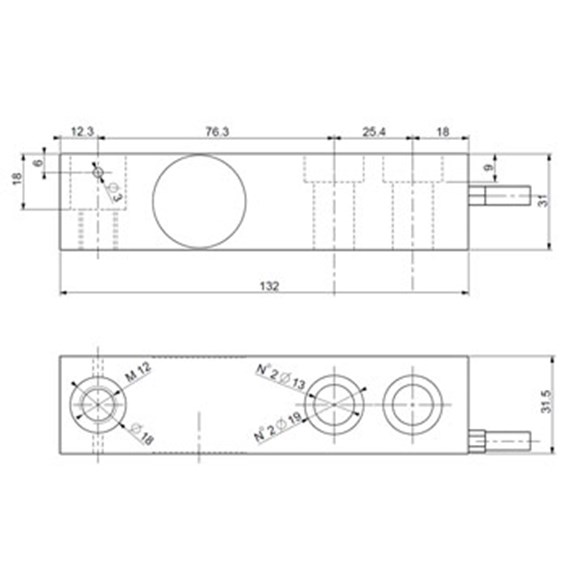

Dimensions

Available versions

Code	Max (kg)
SBT500-1KL	500
SBT1000-1KL	1000
SBT2000-1KL	2000
SBT2500-1KL	2500

Resources/Downloads

Application Stories / Articles

Title	View	Email	Category	Type
All Around Dini Argeo Weighing Solutions for Logistics and Warehouses		Email	Pallet Truck Scales\|Pallet Scales\|Pallet Weighers\|Electric Pallet Truck Scales\|ATEX Pallet Truck Scales\|Hygienic Pallet Truck Scales\|Pallet Weighing\|Weighing Forks\|Hydraulic Weighing Kits\|Counting Scales\|Bench Scales\|Axle Weighing Scales\|In-Motion Axle Scales\|Dynamic Axle Weighing\|Platforms, Indicators and Accessories\|High Resolution Load Cells\|Off Center Load Cells\|Bending Beam Load Cells\|Shear Beam Load Cells\|Double Shear Beam Load Cells\|Compression Load Cells\|Tension Load Cells\|Column Load Cells\|Mounting Kits\|Hygienic Load Cells	Articles

Parts

Available Versions

Part #	Description	List Price	Cart/Quote
SBT500-1KL	Shear beam approved load cell, C3, Max=500kg. Nickel-plated steel, IP67 protection degree, 1000 Ohm output resistance.	Consult	View
SBT1000-1KL	Shear beam approved load cell, C3, Max=1000kg. Nickel-plated steel, IP67 protection rating, 1000 Ohm output resistance.	Consult	View
SBT2000-1KL	Shear beam approved load cell, C3, Max=2000kg. Nickel-plated steel, IP67 protection degree, 1000 Ohm output resistance.	Consult	View
SBT2500-1KL	Shear beam approved load cell, C3, Max=2500kg. Nickel-plated steel, IP67 protection degree, 1000 Ohm output resistance.	Consult	View

Options

Joints

	Part #	Description	List Price	Cart/Quote
	AVM12	Stainless steel/rubber M12 elastic joint for SBX/SBK/SBT cells up to 2500kg.	Consult	View
	SBJ12	M12 ball joint for load cells	Consult	View

Base Plates

	Part #	Description	List Price	Cart/Quote
	BPSB3	3 mm base plate for SBT SBX SBK load cells up to 2500 kg. Size: 55 x 30 x 3 mm	Consult	View
	BPSB5	5 mm base plate for SBT SBX SBK load cells up to 2500 kg. Size: 55 x 30 x 5 mm	Consult	View

Mounting kits

Part #	Description	List Price	Cart/Quote
KSBN2	Galvanized steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg.	Consult	View
KSBC2	Alloy steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg.	Consult	View
KSBX2	Stainless steel kit for assembling 1 SBT/SBK/SBX cell from 300 to 2500kg.	Consult	View
KSB2H	Stainless steel articulated plate with M12x50mm threading. Applicable to SB.. load cells with capacity up to 2000 kg. To combine with BLKM12I bush.	Consult	View

Support feet for 4-cell platforms

Part #	Description	List Price	Cart/Quote
SBFI-1	Stainless steel articulated foot with 50 mm non-slip rubber support base. Threading M12 x 1.75 x 43. For SBxx cells up to 2500kg . To combine with BLKM12I bush.	Consult	View
SBFP	Nickel-plated steel articulated foot with 80 mm in ABS. Threading M12 x 1,75 x 30. To combine with BLKM12I bush.	Consult	View
KSB2FI-1	Stainless steel articulated foot with 60 mm non-slip rubber support base. Threading M12 x 1.75 x 46.	Consult	View
SBFA	Nickel-plated steel articulated foot with 60 mm non-slip rubber support base. Threading M12 x 1.75 x 45.	Consult	View
BLKM12I	Stainless steel M12 bush.	Consult	View

Stay Rod

	Part #	Description	List Price	Cart/Quote
	LNK2635	Galvanized stay rod with ball-and-socket joints. Max 100 kN. For proper installation, 2xLNKST are needed. Note: They can’t be ATEX-certified.	Consult	View
	LNKST	Single plate for stay rod. Fitted with fixing screw. (For proper installation, LNK2635 and a second LNKST are needed). Note: They can’t be ATEX-certified.	Consult	View

Junction Boxes

Part #	Description	List Price	Cart/Quote
JB4Q	Equalisation box for connection with up to 4 load cells. ABS box, IP67 protection rating, with 4 + 1 fairleads.	Consult	View
JB4QI	Stainless steel equalisation box for connection with up to 4 load cells. IP65 protection rating, with 4 + 1 fairleads.	Consult	View
JC4Q	Equalisation board for up to 4 cells. With UL marked PCB, Terminal block, plastic box and labels (if expected).	Consult	View

Kit for Assembling 4 Cells Platforms / Scales

Part #	Description	List Price	Cart/Quote
PLT405C3	Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).	Consult	View
PLT410C3	Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).	Consult	View
PLT420C3	Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).	Consult	View

Connection Cables

Part #	Description	List Price	Cart/Quote
LCCB	Shielded cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath. Tinned copper braid shielding. PVC outer sheath, diameter 5.8 mm. Temperature range: -40 / +80 °C. Minimum bending radius >/= 6 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
LCCBA	Armoured cable 6x0.25 mm² (suitable for Ex zones). PVC inner sheath, diameter 5mm. Iron-zinc alloy armour. Transparent PVC outer sheath, 8 mm diameter. Temperature range: -15 / +70 °C. Minimum bending radius >/= 5 x O.D. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
LCCBM	Shielded 4x0,34 mm² cable for moving applications. €/m. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View
PRCB	Protection sheathing for shielded cable. €/meter internal Ø 15mm. Maximum orderable length: 100 m (longer lengths available only upon request).	Consult	View

Available Weight Indicator / Transmitter

Part #	Description	List Price	Cart/Quote
DGT1S	Weight transmitter on DIN bar, with 2 INPUTS and 2 OUTPUTS. Fitted with 5-key keypad and LED display. Multifunction weighing program.	Consult	View
DGT1	Weight transmitter for DIN bar. 5-key keypad, LED display, date/time, alibi memory, and multifunction weighing program.	Consult	View
DGT4	Transmitter for DIN bar with 4 channels, 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View
DGTQ	Transmitter for panel mounting, with 2 IN and 2 OUT. 5-key keypad, LED display, and standard weighing program.	Consult	View
